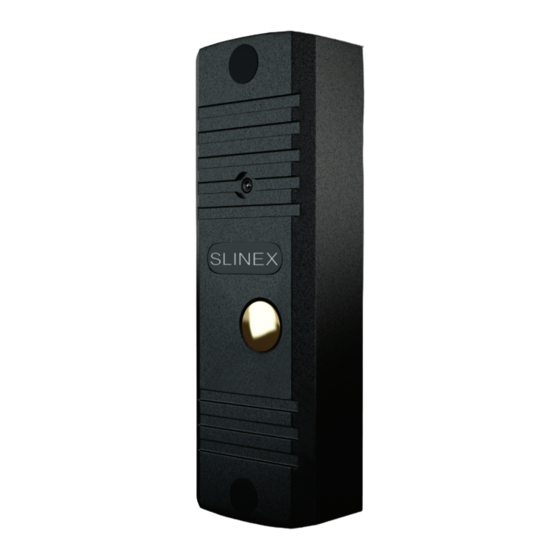

- Page 1 Design. Uniqueness. Innovations . Design. Uniqueness. Innovations . ML-16HD Manual Technical support downloading high definition video outdoor station AHD 1080P (2 MP) Thank you for User manual choosing our equipment...
- Page 2 ML-16HD Safety instructions Nature protection Read and keep that manual. Don’t throw away the device with other industrial or The device installation process should be carried out by the qulified nutritive trash if you see that symbol. Some regions have specialists.
- Page 3 ML-16HD Table of contents 1. Package 1. Package ..........................4 ML-16HD outdoor panel − 1 pc. Rainshield − 1 pc. 2. Specification ........................4 Angle bracket − 1 pc. 3. Description........................5 Flush mounting box − 1 pc. (optional) 4. Schematic diagram ...................... 7 Mounting screws and anchors −...
- Page 4 ML-16HD 3. Description 41 mm Wire colors Power, +12 V Microphone Ground (GND) Black Video camera Audio White Night infrared backlight Video Yellow Call button Speaker N.O. relay contact Brown Connection cable COM. relay contact Blue Camera mode button Video camera power, +12 V Red &...
- Page 5 ML-16HD 5. Installation 4. Schematic diagram Lock Lock power supply 1) Take the angle bracket from the kit and place it 150-160 cm from the floor line; 2) Mark and drill two halls inside the wall; 3) Take two anchors from the kit and hammer them into the drilled halls;...
- Page 6 ML-16HD defective products, as provided above. Manufacturer is not liable for, and 7. Limited warranty does not cover under warranty, any damages or losses of any kind Manufacturer guarantees product normal functioning during the warranty whatsoever resulting from loss of, damage to, or corruption of, content or period if the user keeps all safety instructions described in that manual.
