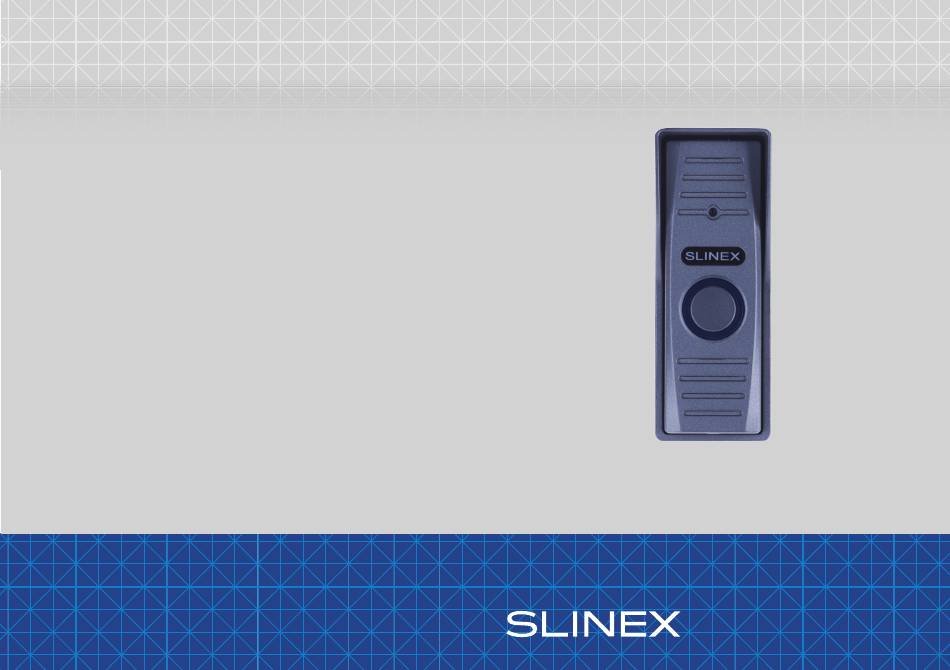

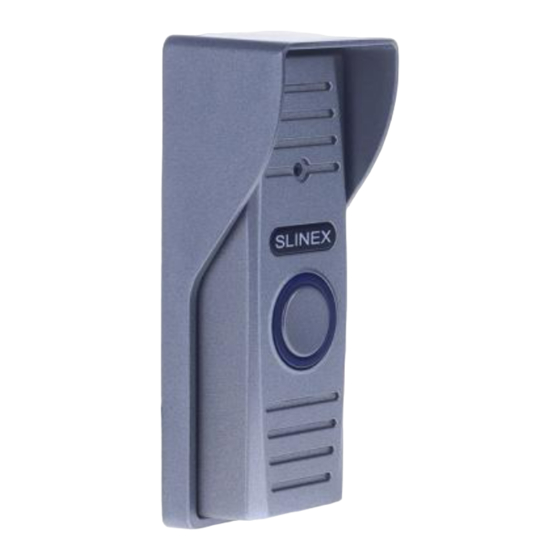

- Page 1 ML-15HR SERIES video door panel ACCESSORIES User manual Thank you for choosing our equipment { Design. Uniqueness. Innovations }...
- Page 2 This manual can contain some inaccuracy or misprint. The owner reserves the right to make corrections to the information described in the user manual and device package. The last revision of this manual is available on www.slinex.com Rev. 1.0...
- Page 3 SERIES { Design. Uniqueness. Innovations } ACCESSORIES Table of contents 1. Package ML-15HR door panel − 1 pc. 1. Package ..........................4 Wall mounting bracket (rainshield type) − 1 pc. 2. Speci cation ......................... 4 Angle bracket − 1 pc.
- Page 4 SERIES { Design. Uniqueness. Innovations } ACCESSORIES 3. Description 54 мм ML-15HR wire colors Power, +12 V Black Ground (GND) Microphone White Audio Video camera Yellow Video Night infrared backlight Call button Brown COM relay contact Speaker Blue N.O. relay contact Red &...
- Page 5 Input 4) Fix angle bracket on the wall by two screws from the kit; Camera power (Red & White) ML-15HR 5) Fix wall mounting bracket on the angle bracket by two screws from the kit; Door 2 CCTV 2 Output...
- Page 6 SERIES { Design. Uniqueness. Innovations } ACCESSORIES not cover under warranty, any damages or losses of any kind whatsoever 6. Limited warranty resulting from loss of, damage to, or corruption of, content or data or any costs Manufacturer guarantees product normal functioning during the warranty associated with determining the source of system problems or removing, period if the user keeps all safety instructions described in that manual.
