Do you have a question about the CAPTO CRANE and is the answer not in the manual?

Questions and answers

Summary of Contents for Sega CAPTO CRANE

  • Page 1 · 0 e c B C tJ Cl lJ •...

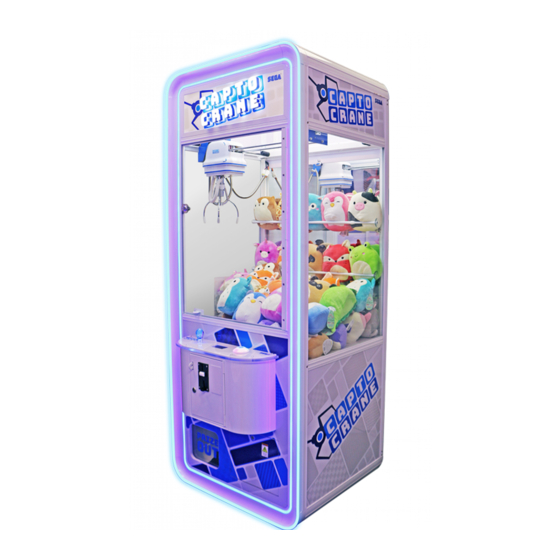

  • Page 2 Machine operating instructions O840*W812*H21 00MM Type : Claw Crane Machine Product Name: Capto Crane Machine voltage power: 110V/220V @200w Model: MK-I Specification Version: Ver1 .2 System version: SG401 Please refer to the detailed instructions before use ,and please keep the manual for future...
  • Page 3 BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING: TO MAINTAIN SAFETY: To ensure the safe operation of this product, be sure to read the following before usage: The following instructions are intended for the users, operators and the personnel in charge of the operation of the product.
  • Page 4 INSPECTIONS IMMEDIATELY AFTER TRANSPORTING THE PRODUCT TO THE LOCATION Normally, at the time of shipment, SEGA products are in a state allowing for usage immediately after transporting to the location. Nevertheless, an irregular situation may occur during transportation. Before turning on the power, check the following points to ensure that the product has been transported in a satisfactory status: Are there any dented portions or defects (cuts, etc.) on the external surfaces of the cabinet? Are casters...
  • Page 5 Indicates a warning or caution that, if ignored, may result in the mishandling of the product and cause faulty operation or damage to the product. Sega Amusements Europe Limited. 42 Barwell Business Park, Leatherhead Road, Chessington, Surrey, KT9 2NY. United Kingdom.
  • Page 6 Definition of 'Site Maintenence Personnel’ or Other Qualified Individuals Procedures not described in this manual or marked as ‘to be carried out by site maintenance personnel or other qualified professionals’ should not be carried out by personnel without the necessary skill or technological experience. Work carried out by unqualified persons may cause serious accidents, including electrocution.
  • Page 7 The symbol shown below will be placed on all products manufactured from 13th August 2005, which indicates this product must NOT be disposed of with other normal waste. Upon purchasing any EEE from SEGA Amusements International Ltd. The user accepts responsibility to dispose of their waste equipment by arranging to return it to a designated UK collection point (AATF) or an Approved Exporter (AE) for the correct recycling of waste electrical and electronic equipment.
  • Page 8 WARNING DANGER RISK OF SHOCK Do Not Open! Authorised Personnel Only 440-WS0005UK WARNING High voltage can cause an electric shock. Remove power before servicing. 440-DS0010UK RISK OF SHOCK Do Not Open! Authorised Personnel Only 440-WS0005UK...
  • Page 9: Table Of Contents

    Table of Contents Gameplay System settings A Check Ledger B Game Set C Crane Set D Advanced Set E Sound Set F System Reset Error code Simple problem elimination Wiring instructions Mainboard wiring position description Intetiace description...
  • Page 10: Gameplay

    'f'Gameplay '(" · After the coin has satisfied the number of credits required for a game, start the game by operating the joystick. '(" Operate the joystick direction to control the crane to aim above your selected target and release the joystick. When you start to move the joystick, the LCD screen will start to display the game time countdown.
  • Page 11: System Settings

    System settings '(" ( This product uses the digital version of the full LCD screen function settings. ) Setup system and operation method: Access settings Menu Press the "Settings" button for 3 seconds to enter the "System Settings Interface" . In the system settings push "Joystick Right" or push joystick down to enter the corresponding function settings Push the joystick left to exit the setup interface and start the game.
  • Page 12: C Crane Set

    fsystem settings The game operates at C4 claw strength until a Vending prize is won. No further coins are required to play 1~99 until a prize has been vended. The player must Mode: insert the set number of credits to play. e.g.. set to '10' will cost 10 coins to play and win a prize Winner every time mode.
  • Page 13: D Advanced Set

    '('system settings Catchtimeset: sets the duration of the claw drop. The longer the time the longer the length of the claw drop. Set the time range fro m 1s to 5s. default 3.5s. If you want to dig the claw into the bed set a longer time C2Triggering: This denote the point when the game changes from C1 to C2 claw strength.
  • Page 14: E Sound Set

    '('system settings 2.5 E Sound Set: Volume Set: Adjust the volume. Value 0- 7, Default 7 Music Set: Choose music type Background music: Value 00-02, Default 00 Win music: Value 00-02, Default 00 Drop claw music: Value 00-02, Default 00 Plays music when choosing options.
  • Page 15 � Troubleshooting Fault description and troubleshooting: When a fault occurs, check the switching power supply. The LED of the switching power supply in the normal state . If the LED is blinking or dark, the power supply status is abnormal. Error description Inspection and troubleshooting Check wiring between the joystick and main board.
  • Page 16 '('Troubleshooting Inspection and troubleshooting Error description Check the wiring at the main board is good (J5) No credit Check the credit board has power and you get a credit when you press the service button If the above steps do not solve the problem, please contact customer service Check if the prize sensor is blocked LCD Displays...
  • Page 17: Wiring Instructions

    Spare List for Capto Crane PCS/CRANE Pictures Part Name Number Dimension(mm) Unit MACHINE wheel with brake PX64 2.5 inch wheels without brake PX65 2.5 inch Solid Letters PX69 ﹨ light bar-1 PX70 DC24V 5420mm ight bar-2 PX71 DC24V 5040mm WARM LAMP 3000K...
  • Page 18: Mainboard Wiring Position Description

    LCD Panel PX100 ﹨ Claw crane machine main PX101 ﹨ Panel White palstic outside box ﹨ for overhead crane Overhead Crane Switch 3 pcs in each overhead crane NO.1 Overhead Crane Switch 1 pcs in each overhead crane NO.2 Overhead Crane Switch 1 pcs in each overhead crane NO.3...
  • Page 19: Intetiace Description

    PX105 Sensor panel ﹨ Control button PX107 ﹨ PX108 Joystick ﹨ PRIZE TELESCOPIC POLE PX116 ﹨ PX117 Speaker 4 inches PX123 220V FILTER REJECTOR 5*20 ELECTONIC METER FOR PX124 CL-9014-A COINS AND PRIZE...
  • Page 20 [;J � [;J 1o1or!T/ 1otor/L! lo1or:U, Claw 2-1VGND 4.8V -18V-UNO 122- INI I roWER J22-PIN1'3 J22 PINl5 G'.'ID J22-Pl'll 7 J22-PI1'17 A --- Fu•ul SWlCH 8----Left S\VLCJ-1 022-PlN6 C---- Bt'Jiind 5\VlCH 122-Pl\fS J> ---- Up SWJ( lf22 PlN;i---- C---- Dowu S\VIOI .122-PJN\ J22-P[N2...
  • Page 21 2-1 GI -18 62 12 0 00000 0000000000 0 0 0 0 0 0 00 0 C J22-C R AKE SOCKET J3-POWER SOCKET ·5 ""'C CODE TABLE INTERFACE ·g_ - - - - · l l l l l l l l l l l l l l l l l l l l l l l l...
  • Page 22 '('interface Description Crane socket Power socket Set board power Coin accep tor "Q Shakeproof Joystick LCD signal Communication Code table Speaker Jl4� Jl6E3 J22Socket Upper and Upper and Left and right Left and right lower motor lower motor motor motor Front and Front and Claw solnoid...
  • Page 23 't'1nterface Description 12V+ 12V+ Coin Signal 1 12V+ Coin signal 2 12V+ Shakeproof Sensor button Joystick right Joystick left Joystick forward Joystick backward Horn+ Horn - Code table 1 Code table 2 Communication Communication line+ line- 3.3V+ 3.3V+ LCD signal 1 LCD signal 2 LCD signal 2 LCD signal 3...
  • Page 24 SPARES AND SERVICE CONTACT INFORMATION -SEGA TOTAL SOLUTIONS- 42 Barwell Business Park Leatherhead Road Chessington Surrey KT9 2NY United Kingdom Contact: +44 (0) 208 391 8060 Option 1 for Spares, Prize, and Sales Option 2 for Technical, Warranty, and Repairs...
