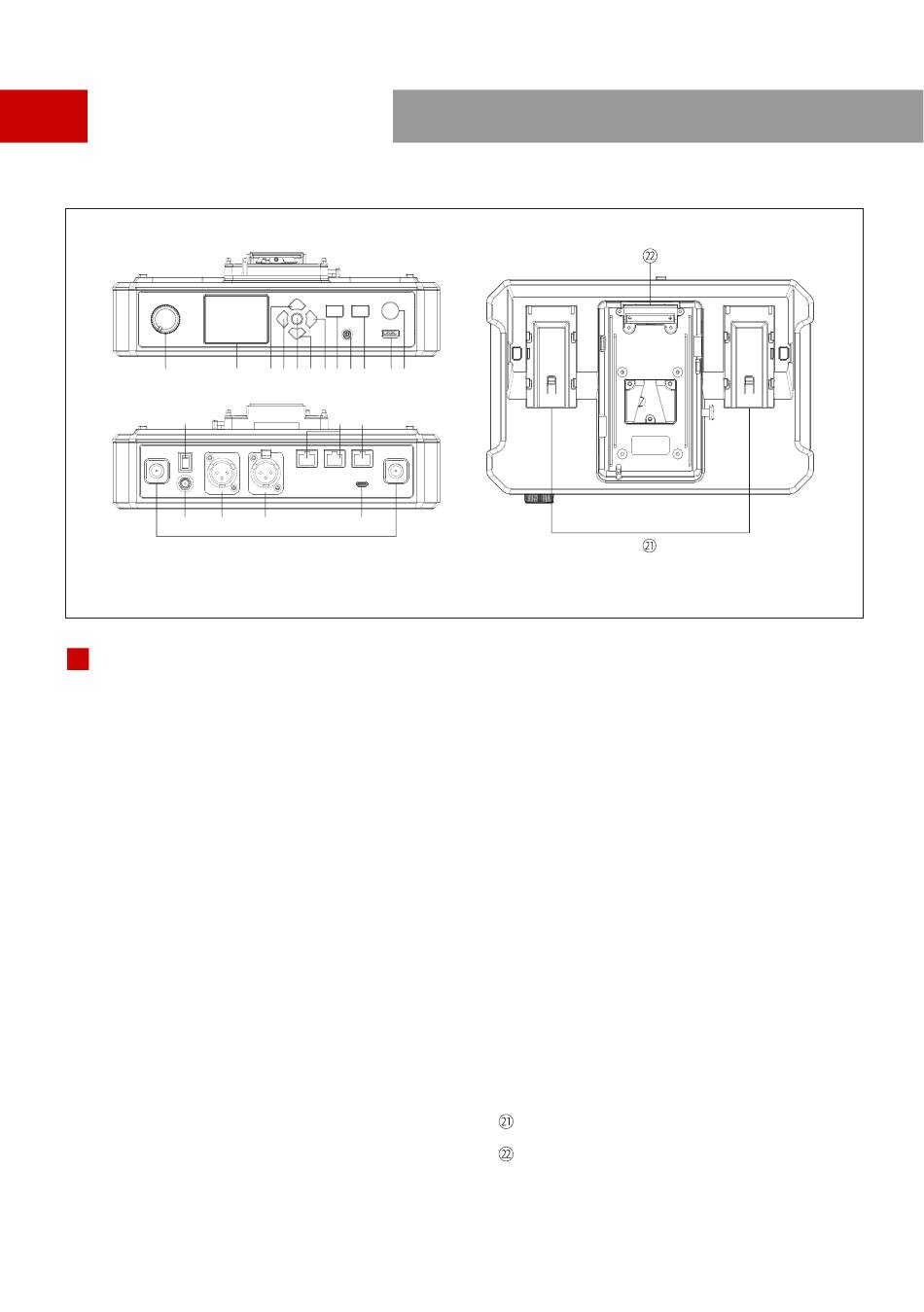

Product Interfaces

①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫

⑭

⑮
⑯

A
HUB Base Interfaces
①

HUB Headset Volume Knob
②
Display
③
UP Arrow Key
④
LEFT Arrow Key
⑤
Menu/Confirm Button - Long press to enter the
main menu/press once to confirm
⑥
DOWN Arrow Key
⑦
RIGHT Arrow Key
⑧
Join/Exit Group A Button for the 3.5mm HUB
Headset - The indicator turns off when the HUB
Headset exit Group A's conversation, and turns
on in orange after joining in
⑨ 3.5mm Headphone Jack



⑩
Join/Exit Group B Button for the 3.5mm HUB
Headset - The indicator turns off when the HUB
Headset exit Group B's conversation, and turns
on in orange after joining in
⑱
⑲

⑰
⑳

⑬

A
⑪
USB Interface
⑫
ANNOUNCE Button - Press and hold the button
while making an ANNOUNCE, release the button
when finished
⑬
RF Antenna Interface
⑭
Power Switch
⑮
DC Power Interface
⑯ PGM Audio Input Interface
⑰
2-wire Audio Input & Output Interface
⑱ RJ45 Network Port
⑲
4-wire Audio Input & Output Interface
(RJ45 network socket)
⑳ UAC Interface

NP-F Battery Bay
V-Mount/G-Mount Battery Plate (Subject to the
actual product you purchased)
