MARS T1000
USER NOTES
V2.1, 08/25/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MARS T1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hollyland MARS T1000

Summary of Contents for Hollyland MARS T1000

  • Page 1 MARS T1000 USER NOTES V2.1, 08/25/2020...

  • Page 2: Product Features

    ◆ PRODUCT FEATURES 1. 1,000FT Transmission Range 2. Full-Duplex Wireless Communication 3. Carrier-Grade Voice Quality 4. Supports Daisy-Chain Expansion 5. Supports External Tally 6. OLED Screen 7. Built-In Battery (Beltpacks) 8. USB Upgrade...

  • Page 3: Product Parameters

    ◆ PRODUCT PARAMETERS BASE STATION BELTPACK Antenna Ports(SMA-K) x2 Antenna Ports(SMA-K) x2; DC Input(4-Pin XLR); 3.5mm Headset Port Interface Type-C USB x1; Type-A USB x4; RJ45 x3 3.5mm Tally Out Port OLED Display; 3.5mm Headset Port Type-C USB Charging Port Power Supply Range 7-36V DC Built-In Lithium Battery...

  • Page 4: Base Station Interface

    ◆ BASE STATION INTERFACE DC Power Supply 4-Wire Audio(RJ45)
  • Page 5 ◆ BASE STATION INTERFACE 3.5mm Audio Mute All Beltpacks...
  • Page 6 ◆ BASE STATION INTERFACE Type-C USB USB Charging/Upgrade/Pair...

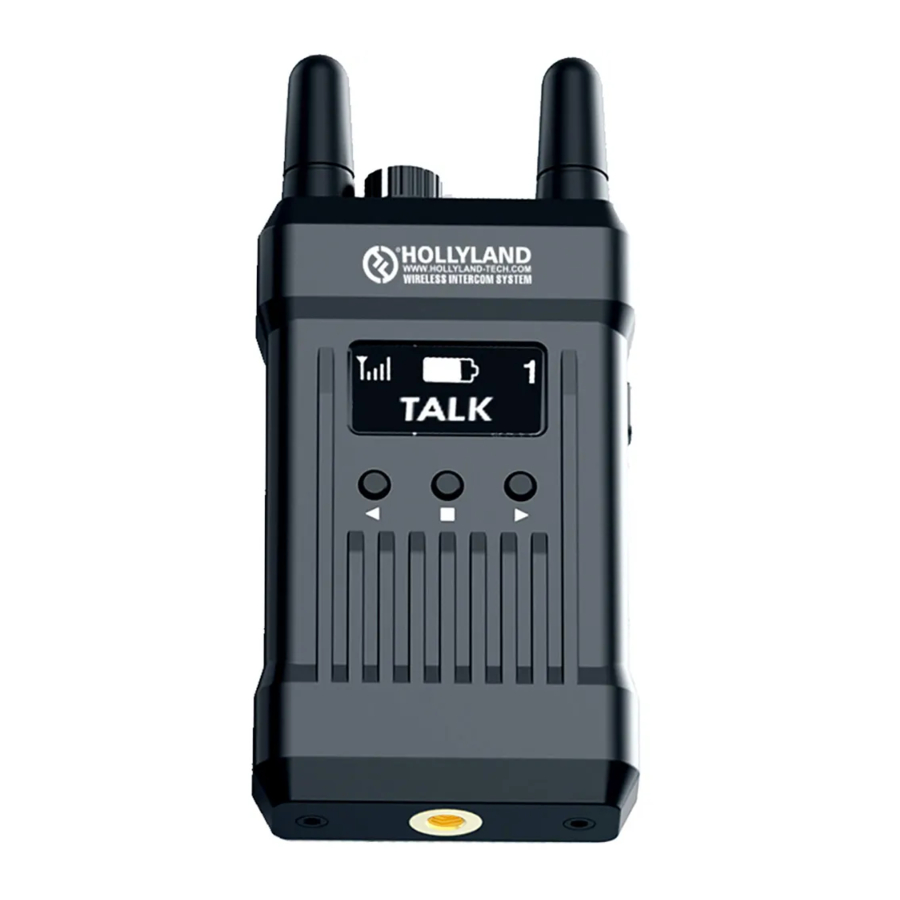

  • Page 7 ◆ BELTPACK INTERFACE Hanging String LCD Display Menu Button...
  • Page 8 ◆ BELTPACK INTERFACE 3.5mm Headset MUTE/CALL Button Type-C Charge/ Upgrade Tally Out Volume Control / On&Off Switch Knob...

  • Page 9: Base Station Menu

    ◆ BASE STATION MENU Long-press the menu button to enter settings ⚫ Mic Option ⚫ 4 wire setting ⚫ System setting ⚫ Application...
  • Page 10 ◆ BASE STATION MENU Mic Options 4-Wire Setting • Mic Yype Selection • Input Gain (+4~0~-4) (Dynamic/Electret) • Output Gain (+4~0~-4） • Mic Gain (+4~0~-4) System Application • • Information Quiet • • Reset Noise...

  • Page 11: Beltpack Menu

    ◆ BELTPACK MENU Long-press the menu to enter settings ⚫ Pair ⚫ Application ⚫ Mic type ⚫ Battery ⚫ Information...
  • Page 12 ◆ BELTPACK MENU PAIRING SETTINGS Connect the beltpack to the base station by a USB cable, select a beltpack number and select pairing MIC TYPE • Dynamic Mic(standard headphones) • Electret Mic(mobile phone and other regular headphones) INFORMATION • RSSI •...
  • Page 13 ◆ BELTPACK MENU APPLICATION • Quiet • Noise BATTERY • Percentage • Core • Version...
  • Page 14 ◆ FAQ 1. How to pair a beltpack with the base station? • Connect the beltpack to the base station with a USB cable. • Choose “Pair” on the beltpack and select an ID. • Pairing is done when both the beltpack and the base station show “Pair Success”. 2.
  • Page 15 5. How to add tally feature to the system? Connect the Hollyland Tally Box to the base station and the switcher via the type-c interface on the beltpack, and connect the beltpack to the tally light through the 3.5mm tally out interface on the beltpack.
  • Page 16 ◆ CONTACT US • Where to buy: https://www.hollyland-tech.com/where-to-buy/ • Get in touch with Hollyland: https://www.hollyland-tech.com/contact/ • Hollyland Facebook Community: https://www.facebook.com/groups/hollylandtech/ • Facebook: https://www.facebook.com/HollylandTech • Instagram: https://www.instagram.com/hollylandtech/ • Twitter: https://twitter.com/Hollyland_Tech • YouTube: https://www.youtube.com/c/HollylandTechnology • LinkedIn: https://www.linkedin.com/company/shenzhen-hollyland-technology-co- ltd/?viewAsMember=true...
  • Page 17 THANK YOU...
