  • Page 1 MARS T1000 User Manual Version 1.0.0...

  • Page 2: Key Features

    With the DECT protocol technology, MARS T1000 is widely used in the areas of studio, stage events, EFP, webcasting, filmmaking etc. With a clean line of sight (LOS), the transmission range of MARS T1000 reaches up to 300m with full- duplex wireless communication and carrier-grade voice quality.
  • Page 3 DESCRIPTION APPLICATIONS  Filmmaking  Live Broadcasting  Corporate Events  Production Team Communication  Stage Activities  Emergency Dispatch  Webcasting...

  • Page 4: Packing List

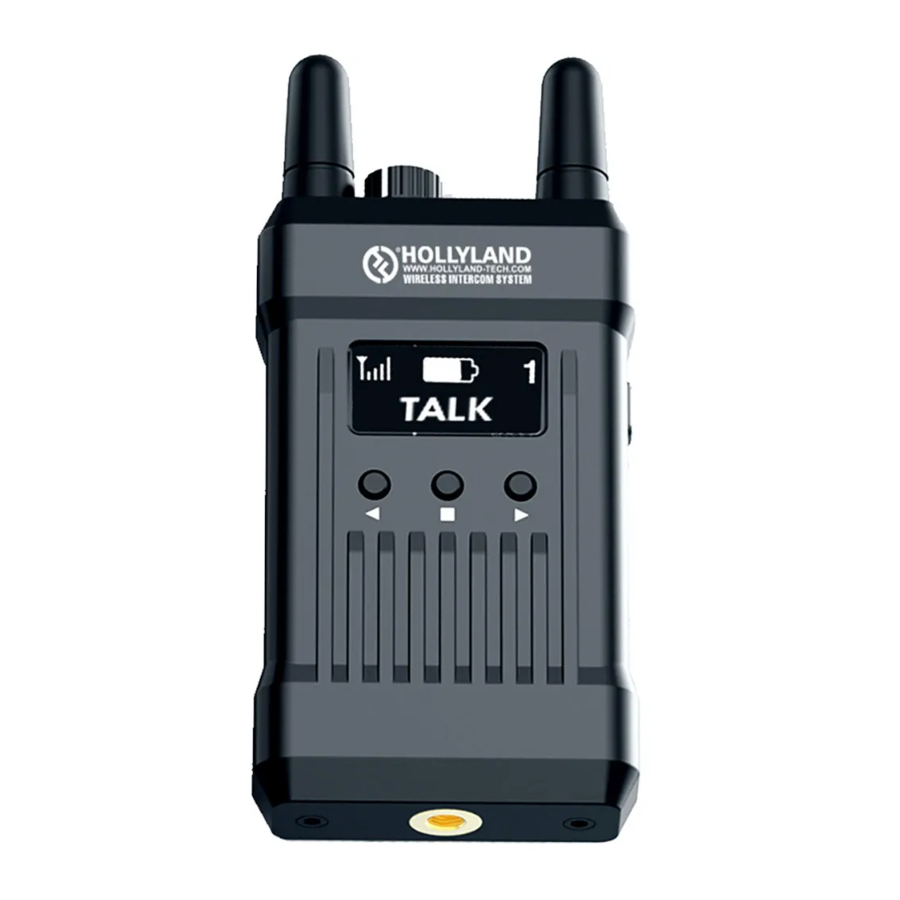

    PACKING LIST ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ① Base Station ② Beltpack ③ Professional Dynamic Side-Ear Headset ④ 1.9G High-Gain Base Station Antenna ⑤ Type-C Cable ⑥ 4-Pin XLR Adaptor ⑦ Quick Guide ⑧ Multi-Interface USB Charger * The exact quantity may vary on products configuration.

  • Page 5: Standard Setup

    STANDARD SETUP Intercom 4 wire The base station of this wireless full-duplex intercom system supports 4 beltpacks. The base station and the beltpacks support dynamic and electret mics. They could be switched by selecting on the menu for different applications. The 4-pin audio interface on the base station enables the device to connect with other audio systems, which can increase the quantity of beltpacks and also the wireless communication range.

  • Page 6: Product Interfaces

    PRODUCT INTERFACES ① ① ② ③ ② ⑤ ③ ⑥ ⑤ ⑦ ④ ⑥ ⑧ ⑨ ④ ⑦ ⑧ ⑨ ⑩ ⑪ ⑬ ⑫ ⑩ BASE STATION BELTPACK ① ① RF Antenna Interfaces (SMA-K) Antennas Interfaces ② ② DC Power Supply (4-Pin XLR Male) Power and Volume Control ③...

  • Page 7: Oled Display

    OLED DISPLAY ④ ⑤ ① ⑥ ① ③ ② ③ ② ④ TALK ⑦ BASE STATION BELTPACK ① ① Beltpack Signal Strength Beltpack Real-Time Battery Status ② ② Beltpack Real-Time Battery Status Beltpack Signal Strength ③ ③ Beltpack Current Status Beltpack Number ④...
  • Page 8 BASE STATION MENU FUNCTION INTRODUCTION Mic Type Dynamic Electret Mic Options Back Mic Type(Dynamic) Mic Gain(0) Mic Gain Back Back Input Gain 4 Wire Setting Back Input Gain (0) Output Gain(0) Output Gain Back Back Menu Mode Mic Options 4 Wire Setting Master System Slave...
  • Page 9 BASE STATION MENU FUNCTION INTRODUCTION Select "Mic Options" and press "OK" button to enter the secondary menu of Mic Settings 1.1. Select "Mic Type" and press "OK" button to enter the third-level menu of Mic selection. 1.1.1. Select “Dynamic” and press "OK" button to switch to dynamic mic mode. 1.1.2.
  • Page 10 BASE STATION MENU FUNCTION INTRODUCTION Select “System” and press "OK" button to enter the secondary menu of system settings 3.1. “Mode” on the master and slave (still developing）. 3.1.1. Set up as the Master. 3.1.2. Set up as the Slave. 3.2.
  • Page 11 BELTPACK MENU FUNCTION INTRODUCTION Select Number Back Application Quiet Noisy Back Pair Mic Type Application Mic Type Dynamic Battery Electret Information Back Exit Percent: 100% Core: 2640 Version: 0048 9211 Back RSSI: Mic Type: Dynamic Application: Noisy Version: 1.2.3.0 Back Long press "OK"...
  • Page 12 BELTPACK MENU FUNCTION INTRODUCTION Select“Pair”and press "OK" button to enter the secondary menu of registration function 1.1. Select any ID from 1 to 4 and press "OK" to register. "Pairing..." can be seen on the main interface of base station and beltpacks. Unplug the USB cable after "Pair success"...
  • Page 13 BELTPACK MENU FUNCTION INTRODUCTION Select “Information” and press "OK" button to enter the secondary menu of system information inquiry 5.1 “ID” displays current beltpack number .(If it is not registered, “NULL” will be on displayed on the beltpack) 5.2 “RSSI” displays the current wireless signal strength. 5.3 “Mic Type”...

  • Page 14: Installation

    INSTALLATION ① ① Base Station Installation 1. Install antennas as demonstrated. 2. Connect with the power adapter and headset. 3. Press the power switch to power on. ② ③...
  • Page 15 INSTALLATION ② Beltpack Installation 1. Connect headset as instructed in the picture. 2. Turn power and volume control knob to turn on the beltpack. 3. When the status of beltpack turns from “LOST” to “MUTE”, long press the “MUTE/TALK” button on the side of the beltpack to switch to “TALK” mode to communicate.
  • Page 16 INSTALLATION ④ ④ TALLY Features TALLY universal signal converter is an optional accessory available on the market. It can achieve TALLY distribution feature. Please find the detailed user guide in the TALLY Universal Signal Converter Quick Guide.
  • Page 17 PARAMETERS Base Station Beltpack 2Antenna Interfaces（SMA-K） 2Antenna Interfaces（SMA-K） 4-Pin XLR Male DC Input 3.5mm Headset Interface 3.5mm Headset Interface 3.5mm TALLY Output Interface RJ45 Interface 4 wire audio interface USB Type-C Interface Interface USB Type-C Interface Double USB Type-A Interfaces Power Supply Mode 7～36V DC；F970 Battery (Typical) 1600mAh Polymer Lithium Battery...
  • Page 18 POOR AUDIO QUALITY 1. Please first confirm whether the beltpack antennas are correctly installed and tightened. If there is no improvement, replace the antennas. 2. Please ensure that the beltpack and the base station are in the transmission range, and there is no obstacle between the main station and the beltpack. 3.
  • Page 19 HollylandTech HollylandTech HollylandTech sales@Hollyland-tech.com www.hollyland-tech.com...
