- Page 1 HOLLYLAND SOLIDCOM C1 QuickGuide V1.0.0...

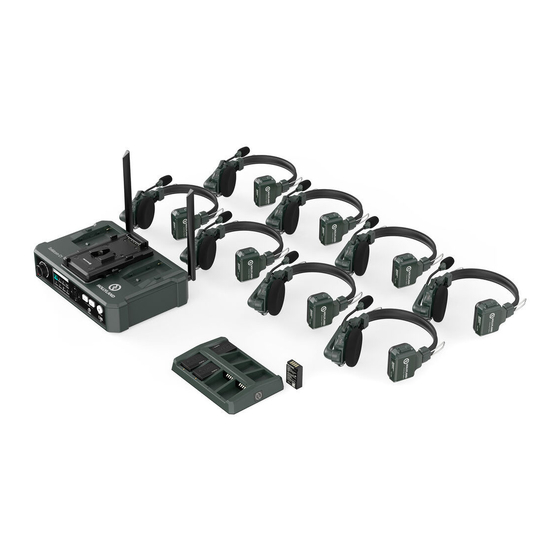

- Page 2 FULL-DUPLEX WIRELESS INTERCOM SYSTEM includes eight single-sided remote wireless headsets along with SOLIDCOM C1 eight rechargeable batteries, a charger, a HUB base with wired headset, and accessories. It is a full-duplex wireless DECT intercom system engineered to provide clear audio and all-day wearing comfort in a true-wireless design with no beltpack required.
-
Page 3: Packing List
② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ Headset Intercom Package SOLIDCOM C1 ①HUB Base ②Remote Headset (with blue nameplate) ③ 3.5mm HUB Headset (with red nameplate) ④ Charging Case Battery ⑥Microphone Cushion ⑦ 12V/2A DC Adapter ⑧Over-ear Cushion ⑨ USB Type-A to Type-C Cable ⑩High-gain Antennas... -
Page 4: Product Interfaces
Product Interfaces ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑭ ⑱ ⑲ ⑮ ⑯ ⑰ ⑳ ⑬ HUB Base Interfaces ⑪USB Interface ① HUB Headset Volume Knob ⑫ANNOUNCE Button - Press and hold the button ②Display ③UP Arrow Key... - Page 5 Product Interfaces Headset Interfaces ① Power/Connection Indicator ②Microphone ③ USB Type-C Interface - For firmware upgrade, and headset pairing ④Battery Compartment ⑤Volume + Button ⑥Volume - Button ⑦A Button - Lights up when joined Group A, turns off when exited Group A; Long press for 5 seconds to pair ⑧B Button - Lights up when joined Group B, turns off when exited Group B ⑨Power Button...
- Page 6 Product Interfaces ② ③ ① Charging Case Interfaces ① Charging Indicator ② Charging Contact ③ DC Charging Interface Orange: Charging in progress Green: Fully charged...
- Page 7 Quick Start Guide Set Up HUB Base Install the HUB antennas. Power Up HUB Base Connect the 12V/2A DC Adapter to the HUB base. Press the Power Switch to turn on. Note: The HUB Base can be powered using NP-F battery, V-Mount/G-Mount battery, or DC power supply.
- Page 8 Quick Start Guide Install Headset Battery Step 1: Slide the battery compartment Step 2: Open the cover Step 3: Place the batteries into the compartment cover lock and close the battery cover Turn On Headset Nameplate Note: The indicator light stops flashing and turns to static green when the HUB Base and the Power Switch Remote Headset(s) are successfully connected.
- Page 9 Quick Start Guide ① ⑧ Master ② ⑦ ⑥ ⑤ ④ ③ HUB Base Main Display Interfaces ① HUB Base configuration - Master/Slave ⑥Headset status TALK: Headset is active to hear and talk ②HUB Base battery level MUTE: Headset is muted to hear only ③Headset signal strength LOST: Headset lost connection with HUB Base ④Headset battery level - turns red in low battery...
- Page 10 Quick Start Guide Headset Status Indicator ①FLASH GREEN: Headset disconnected ②STATIC GREEN: Headset connection successful ③FLASH RED: Battery low, please change the battery Pairing Operation The HUB Base and Remote Headsets that come in one system package will auto pair up right out of box. Manual pairing is only required when there is a need for adding or changing headset or HUB base to the system.
- Page 11 Cascade Connections Multiple intercom systems can be cascaded to expand the number of intercom headsets. The Solidcom C1 HUB Base supports two cascading methods, 4-wire analog and IP digital signal cascading. Generally, using 4-wire analog mode to cascade is recommended when cascading two intercom systems. If three or more sets are cascaded, it is recommended to use IP digital signal cascade.
- Page 12 Quick Start Guide 4 Wire Settings After connecting the two systems with the network cable, configure each HUB Base’s line sequence by entering "4 Wire Settings" and selecting "Line sequence switching". Set the first HUB Base to “Standard mode” and the second HUB Base to “Cross mode”. HUB Display Interfaces Enter “4 Wire”...
- Page 13 Quick Start Guide HUB Settings After connecting the two systems with the network cable, configure each HUB Base’s basic settings as Master or Slave device. Generally, the first system is set as Master Device, and the second one as Slave Device.
- Page 14 Quick Start Guide Group Settings The HUB Base supports A and B grouping settings. You can view the system’s current group setting by entering the Group menu on the HUB. To operate group settings, connect the computer and the HUB via the RJ45 interface using the network cable, and enter the Group settings menu.
- Page 15 Quick Start Guide Open the browser on the computer and visit http://192.168.218.10 to enter the configuration page of the HUB. A & B Group Buttons on Headset(s) After entering Group setting on the HUB, the A and B Buttons on the connected headset will light up. The buttons light status indicates which group the headset has joined.
- Page 16 Parameters Range 350m (1000ft) Line-of-Sight Frequency band: 1.9GHz DECT (varies by country and region) Modulation mode: GFSK Transmit power:20.79dBm (varies by country and region) Frequency band: 5190MHz Modulation mode:OFDM Frequency Information Transmit power:9.10dBm Receiving sensitivity: <-90dBm Transmission Latency ＜35ms Battery Capacity 700mAh (2.66Wh) Li-Ion battery Remote headset: ≈10h Headset Runtime...
- Page 17 Hollyland Products User Group HollylandTech HollylandTech Support@hollyland-tech.com www.hollyland-tech.com...
- Page 18 S tate men t: A l l cop yri ghts belon g to Shenzhen Hollyland Technology Co, . L T D. T r ad ema rk State ment : Without the written approval of Shenzhen Hollyland Technology Co,.LTD, no organization or individual may copy or reproduce part or all of the content of the text without authorization, and may not disseminate it in any form.
- Page 19 FCC Requirement Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference.
