0108B(SYSCOMT1000)
Wireless Intercom System
Shenzhen Hollyland Technology Co.,Ltd

Advertisement

loading
Need help?

Need help?

Do you have a question about the 0108B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hollyland 0108B

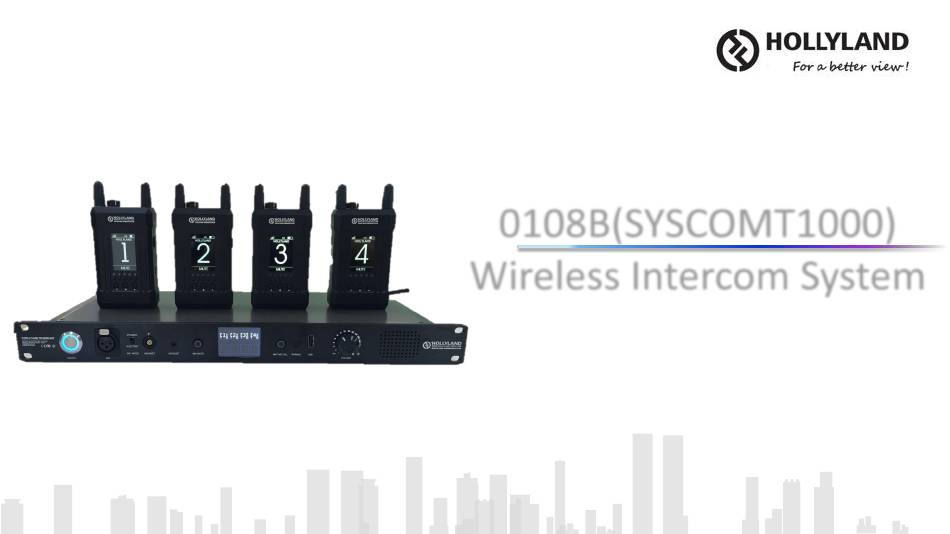

  • Page 1 0108B(SYSCOMT1000) Wireless Intercom System Shenzhen Hollyland Technology Co.,Ltd...
  • Page 2 SyscomT1000 Intercom System Introduction Telecom level audio quality, effective coverage 300m High-capacity lithium battery built-in beltpack, support quick charging Large size colorful LCD display, can be used as TALLY light Professional LEMO headset interface, compact and durable Support dynamic mic headset, effectively reduce environmental noise Compatible with 3.5mm headset of Android, Apple and...
  • Page 3 Syscom1000T Intercom System Introduction Beltpack menu with advanced setting function, can be Ø set to multiple work mode. Support maximum 10 audio(8 beltpacks+1 main Ø station+1 analog audio in). Base station with mute key, supporting muting all Ø beltpacks with one simple press. Base station with a pair of four-wire external analog Ø...
  • Page 4 SyscomT1000TIntercom System Specification Base Station Beltpack Interface Anternna Interface x4 Anternna Interface x 2 4-wire Audio Input & Output Interface x 2 3.5mm Audio Interface 25 PIN Tally Input Interface 8-pin LEMO Audio Interface DC IN, AC IN 3.5mm Tally Output Interface USB Interface USB Type-C Interface XLR Interface...
  • Page 5 Base Station Beltpack Mic LEMO Headset Base Station Switch Mic MUTE MUTE button Interface Volume button Dynamic/ External Gooseneck 3.5mm Condenser Upgrade Speaker Mic Interface Headset Screen Mic Switch...
  • Page 6 Note: Tally Mode Test Analog Audio DC Input Beltpacks mic KILL light Switch Interface Interface 1. Light on: beltpacks' MIC muted(beltpacks can call base station to request unmuting by long pressing PAIR button on the side panel). 2. Light flicker: belt pack Analog volume Antenna Tally...
  • Page 7 Ø Volume Control and Power Switch – Turns the power on/off and controls headset volume. Ø Lithium battery life is 10hrs if fully charged. Supporting Type-C fast charging, 30 min charged, its capacity can support 3h use. Ø Long press middle button, enter menu, the first option is pairing(beltpack can pair only in LOST and NULL status), the second option is tech info.
  • Page 8 Comparison with Syscom1000TE l Base Station: Removed XLR headset interface, added pro LEMO headset interface Added MIC switch, support dynamic gooseneck mic and condenser mic Added remote MIC Kill button to mute all beltpacks Added analog audio input and output volume knob Tally interface changed from 2 DB15 to 1 DB25...
  • Page 9 Comparison with Syscom1000TE l Beltpack: Added pro LEMO headset interface Added big sized color LCD display Changed to built-in lithium battery power     USB interface changed to Type-C type, support fast charging     l Headset:Upgraded to dynamic mic, effectively reduce environmental noise Headset interface changed to 8-pin LEMO interface l Function:Pair mode changed to USB cable pair Beltpack added scene mode selection...
  • Page 10 Syscom1000T Optional Accessories TALLY Cable ¼ Cold Shoe External TALLY Lamp (according to switcher model) Antenna Extend D-TAP to XLR DC Cable Cable...
  • Page 11 Connection Between Syscom1000T and ClearCom 702 Wired Intercom System 2-wire/4-wire...
  • Page 12 4. 2-Wire/4-wire ClearCom MS-702, the most popular wired intercom system 2-wire interface: 4-wire interface 4-wire interface normally in one group of 2-wire interface normally in 3-pin XLR shape, pin definition: XLR(Male+Female) 1--》GND Male ouput(AUDIO IN), Female input(AUDIO OUT) 2--》Power+Mic(Modulation Signal) 1--》GND 3--》Analog Audio(Analog signal) 2--》Analog Audio(Analog signal)
  • Page 13 Common Switchers Panasonic 410(DB15 x2) Datavideo HS2850 (DB25) SONY MCS-8M (DB15) BMD Switcher FOR-A XT-100(DB25) ROLAND Switcher(DB25) (RJ45 Port, TALLY convertion box needed)
  • Page 14 Standby video—GREEN Programming Tally light video—RED Tally light 8 not selected videos-- Tally lights OFF Video selection Video switch...
  • Page 15 Common Switcher Rear Panel Interface 8 wired intercom beltpacks TALLY signal output(connect to Tally 8 SDI Input 2 HDMI Input 2 SDI Output interface of Syscom1000T base station...
  • Page 16 EFP Box &Outside Broadcast Van...
  • Page 17 Broadcast Van Rear Panel Interface...
  • Page 18 Application...
  • Page 19 SyscomT1000 FAQ 2. My voice volume heard by 3. Why others' voice volume is other is very low when using low when using standardly 1. Why background noise of my own headset. equipped pro headset? beltpack is a little big in office? A: The beltpacks of A: 1.
  • Page 20 SyscomT1000 FAQ 6. How long can battery of 4. Why the voice volume of syscom1000T beltpack work? 5. Why beltpack can't be gooseneck mic of base station How long does it takes to heard by others? heard by others is very low? fully charge? How long can it work after 30 min charging? A: The standardly equipped...
  • Page 21 9. When syscom1000T 7. What if beltpacks want to 8. How to pair the new bought connected with ClearCom702, talk after being muted by base beltpack and base station? the audio volume from 702 station? very low? A:Long press the mute/call A:1.
  • Page 22 10. When syscom1000T base station connected to ClearCom702, beltpack can hear voice fro 702 beltpacks, but 702 can not hear voice from syscom1000T wireless beltpacks A:AUDIO OUT interface of syscom1000T base station should be connected to the Program IN interface of ClearCom 702 base station...
