- Page 1 Getting Started Guide ScanPlus 1802 Cordless System...
-
Page 2: Table Of Contents

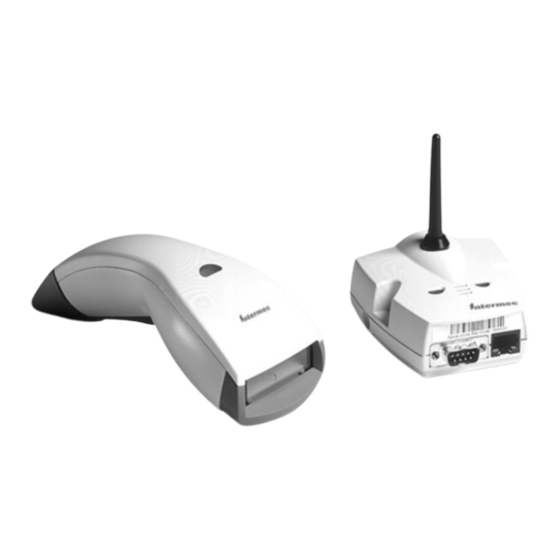

Quick setup The ScanPlus Cordless System consists of a base station (MicroBar 9735) and at least one scanner (ScanPlus1802). Step 1 Read the Recommendations... 3 Step 2 Choose your connection: Step 3 Select symbologies for your scanners ...8 If necessary . . . -
Page 3: Step 1
Recommendations Step 1 0 - 15 m (0 - 50 ft) 15 - 25 m (50 - 80 ft) Recommended Not recommended The MicroBar 9735 must not be connected by the RJ connectors to any type of telecom- munications circuits. -
Page 4: Step 2
Recharge battery System power OFF Connect base station Keyboard wedge cable System power ON Associate cordless scanner(s) "beep beep" Keyboard wedge or USB (PC) PC wedge cable P/N 3-414037-11 USB cable USB cable P/N 3-414038-11 port 3... - Page 5 Select keyboard QWERTY English QWERTZ German QWERTY Italian QWERTY Danish QWERTZ Swiss / French Customize parameters (optional) (*) = default value Postamble = Carriage Return Postamble = none QWERTY Swedish / Finnish AZERTY French QWERTY Norwegian QWERTY Spanish QWERTY Portuguese Postamble = Enter (*) Postamble = Tab...
-
Page 6: Rs-232 C Cable
System power OFF Connect base station System power ON Associate cordless scanner(s) Read this code (standard RS- 232 C PC serial port compa- tible) power supply "beep beep" 9600 baud, 7 data bits, even parity, 2 stop bits... - Page 7 Customize parameters (optional) (*) = default value 9600 baud 19200 baud 7 data bits 8 data bits Odd parity Even parity No parity Postamble = Carriage Return Postamble = none Postamble = Carriage Return + Line Feed (*)
- Page 8 Step 3 Set symbologies for each cordless scanner. Disable all symbologies Select symbology Code 39 Code 128 / EAN 128 PDF417 Use the bar codes on the back cover to test your setup Symbologies UPC-A, UPC-E, EAN-8, EAN-13 UPC-A, UPC-E, EAN-8, EAN-13 (UPC-A ->...
-
Page 9: Using More Than One Cordless System
Default setup Using more than one Cordless System channel 1 When using more than one cordless system in the same area, we strongly recommend using different channels for optimal performance. North American version 906MHz - channel 2 channel 2 European version 433MHz - channel 5... - Page 10 Full setup with EasySet Start the EasySet software Send setup bar codes to the EasySet setup sheet Print setup sheet Connect base station Associate cordless scanner(s) Read the bar codes on the setup sheet "beep beep"...
- Page 11 Operation read barcode good read "beep" data transmission "beep beep beep beep beep beep" out of range Add more scanners You can associate more cordless scanners with the base station at any time. Read association bar code ...
-
Page 12: Regulatory Statements
The information contained in this document is for informational purposes only and is subject to change without notice. No part of this document may be copied or reproduced in any manner without the prior written permission of Intermec Technologies Corporation. - Page 15 Tel: +1 425 348 2600 • Fax: +1 425 348 2833 • U.S. service and technical support, tel: + 1 800 755 5505 • Canadian service and technical support, tel: + 1 800 668 7043 Europe / Middle East / Africa • Sovereign House, Vastern Road, Reading RG1 8BT, England Tel: +44 118 987 9400 • Fax: +44 118 987 9401 Internet: http://www.intermec.com E-mail: info@intermec.com...
-
Page 16: Test Barcodes
Test barcodes © 2006 Intermec Technologies Corporation All Rights Reserved Part Number: 3-235049-01 Rev. J...
