Intermec ScanPlus 1802 Getting Started Manual

Intermec ScanPlus 1802 Getting Started Manual

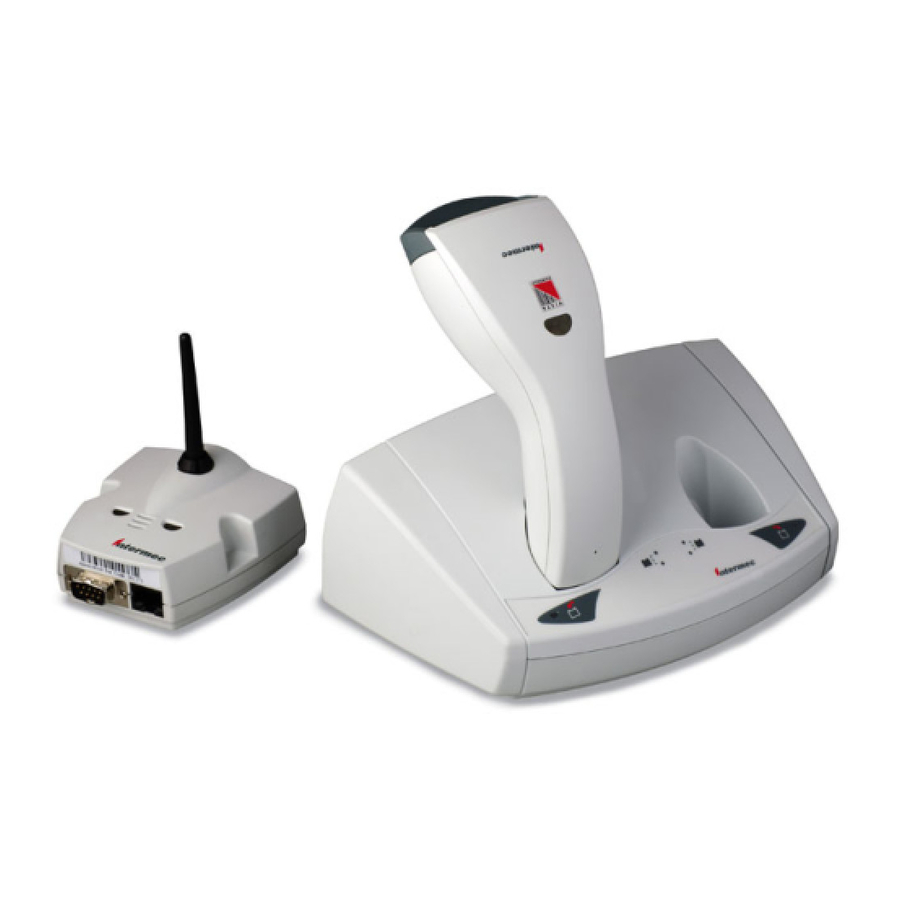

Cordless system
Hide thumbs Also See for ScanPlus 1802:

Advertisement

Getting Started
Guide
ScanPlus 1802
Cordless System

Advertisement

loading
Need help?

Need help?

Do you have a question about the ScanPlus 1802 and is the answer not in the manual?

Questions and answers

Summary of Contents for Intermec ScanPlus 1802

  • Page 1 Getting Started Guide ScanPlus 1802 Cordless System...
  • Page 2 Quick setup Recommendations Step 1 The ScanPlus Cordless System consists of a base station (MicroBar 9735) and at least one scanner (ScanPlus1802). Step 1 0 - 15 m Read the Recommendations..........3 (0 - 50 ft) 15 - 25 m (50 - 80 ft) Step 2 Choose your connection:...
  • Page 3 Keyboard wedge (PC) Step 2 QWERTY Swedish / Finnish Only do this if you are using a Keyboard wedge cable. QWERTY Italian Recharge battery QWERTY Norwegian ➋ System power OFF QWERTY Danish ➌ Din/mini-Din adaptor cable Connect base station QWERTY Spanish PC wedge cable P/N 0-234037-00 QWERTZ Swiss / French...
  • Page 4 RS-232 C Step 2 ➐ Customize parameters (optional) Only do this if you are using an RS-232 C cable. (*) = default value ➊ 9600 baud (*) Recharge battery 19200 baud ➋ System power OFF 7 data bits (*) 8 data bits ➌...
  • Page 5 Symbologies Default setup Step 3 Set symbologies for each cordless scan ner. ➊ Disable all symbologies ➋ Select symbology Code 39 Using more than one Cordless System UPC-A, UPC-E, EAN-8, EAN-13 (UPC-A -> EAN-13) channel 1 channel 2 Code 128 / EAN 128 UPC-A, UPC-E, EAN-8, EAN-13 (UPC-A ->...
  • Page 6 Full setup with EasySet Operation ➊ ➊ Start the EasySet software read barcode ➋ ➋ Send setup bar codes to the EasySet setup sheet good read "beep" ➌ Print setup sheet ➌ data transmission ➍ Connect base station ➍ ➎ acknowledgement data transmission ➎...
  • Page 7: Regulatory Statements

    92/31/EEC and by the Low Voltage Di rec ti ve 73/23/EEC as amended by 93/68/EEC: ETS 300 683 (1997 - ScanPlus These warnings do not apply to the ScanPlus 1802 SR or VT PDF which are CCD scanners and do not contain a laser.
  • Page 8 1 800 668 7043 Europe / Middle East / Africa • Sovereign House, Vastern Road, Reading RG1 8BT, England Tel: +44 118 987 9400 • Fax: +44 118 987 9401 Internet: http://www.intermec.com E-mail: info@intermec.com Technical information: http://datacapture.intermec.com...
  • Page 9 Test barcodes © 2002 Intermec Technologies Corporation All Rights Reserved Revision level 3-235049-01-016...
