TRAMPOLINE AND ENCLOSURE
ASSEMBLY INSTRUCTIONS
Read through the following steps before
beginning the assembly process.
Precautions
Keep small children at least 25 feet away
while assembling or disassembling the
trampoline; they could be injured by im-
properly assembled rods releasing and
ejecting from the frame.
Do not attempt to use the trampoline
until it is completely assembled.
Two people are recommended for tram-
poline assembly.
Gloves are recommended during the as-
sembly process.
Be aware that when loaded, the rods can

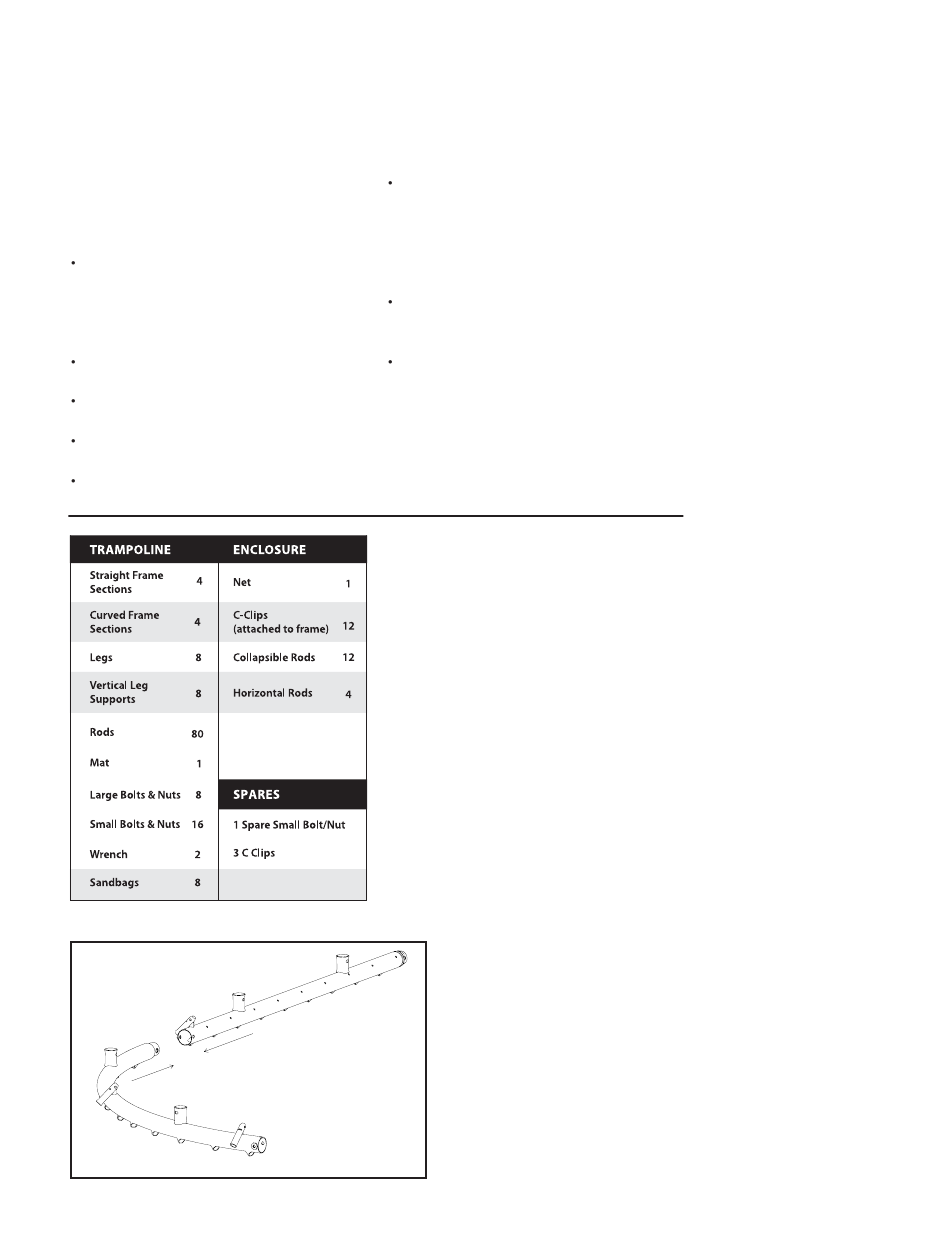

Table 1: Parts Itinerary
CURVED SECTION
Figure 1: Joining curved section to straight section
Springfree™ Trampoline Model SF80 Trampoline and Enclosure Assembly, Installation, Care, Maintenance and Use Instructions Version 1.0
spring back and may cause injury.
Treat any loaded rod with caution until
you are sure it is properly installed. In
particular, keep your face well clear of
the rods during assembly or disassembly.
An improperly installed rod could release
and cause facial injury or blindness.
The sheath on the rod is intended to pro-
vide protection from any iberglass ibres
or splinters. Do not remove the sheath.
Once a rod ball is in the socket in the
mat, a small clip automatically engages
to lock it in place. To release a rod ball
from a socket, push and hold the clip
towards the mat centre before pushing
the rod out of the socket.
Preparation
Conirm all components are present (Table 1).
If you are missing any parts please call your
authorized Springfree™ service centre listed on
Page 30 of this manual.
Note: Bolts & Nuts
Small Bolts
Standard - 5/16" X 2.5"
Metric -
Large Bolts
Standard - 7/16" x 2 5/8"
Metric -
Step 1: Connecting the irst straight frame
section to the irst curved frame section
Assemble one pair of frame sections with the leg sockets
STRAIGHT SECTION
facing upwards as in Figure 1.
M8 X 65 mm
M12 x 70 mm
9
