9 Scan the following test bar code to make sure that the imager
works.
Code 39 Test Bar Code
BC321
The imager should beep once, and "BC321" should appear in
the keyboard application.
The imager is now connected and ready to communicate with
your computer. To program the 1470 for other keyboard wedge
interfaces, see "Terminal Interface" in Chapter 3 of the
1470/1471 Imager User's Manual.

Serial/RS-232 Interface

1 Connect the power supply (4 to 9V) to the serial interface
cable and plug in the power supply.
Or, charge and install the battery pack in the imager.
The imager beeps twice.

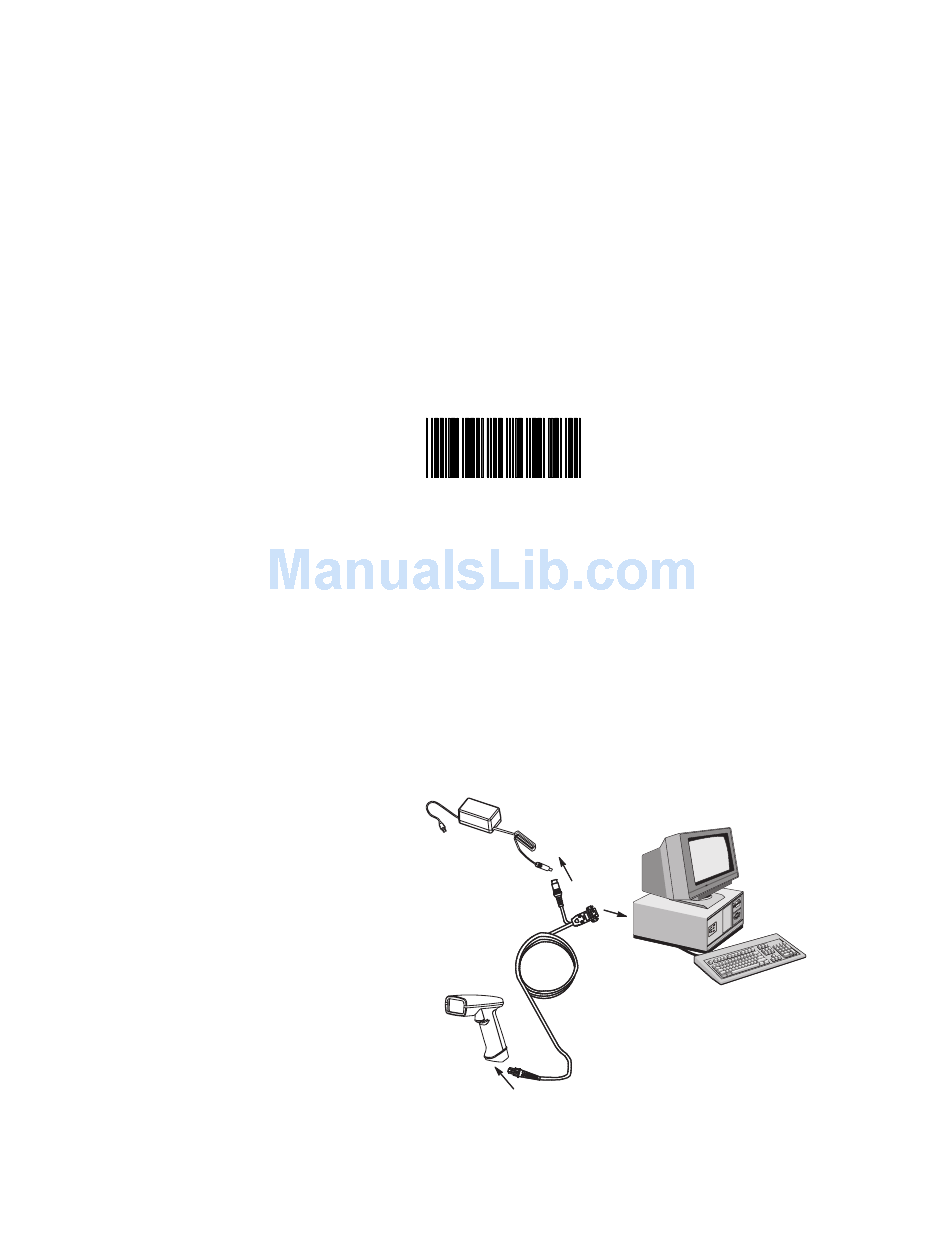

Serial/RS-232 Interface: This illustration shows connecting the power
supply, but you can also charge and install the battery pack in the imager.
8
147XG07.eps
1470B Imager Quick Start Guide
