8 Scan the following test bar code to make sure that the imager
works.

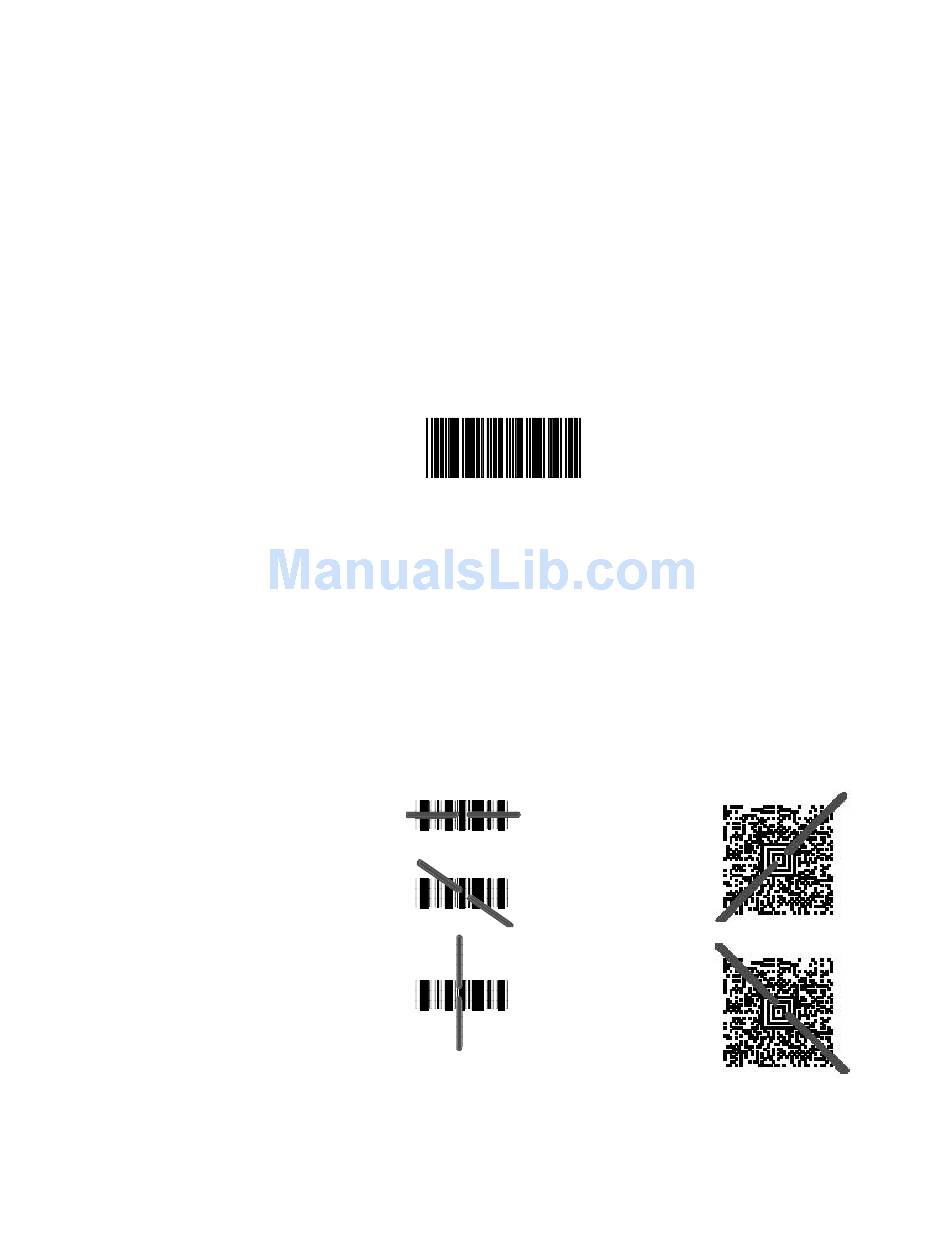

Code 39 Test Bar Code
BC321
The imager should beep once, and "BC321" should appear in
your application.
The imager is now connected and ready to communicate with
your computer. To program the communication parameters for
a serial interface, see "Communication Settings" in Chapter 3 of
the 1470/1471 Imager User's Manual.

Scanning a Label

The imager's view finder projects a bright red aiming beam that
corresponds to the imager's horizontal field of view. The aiming
beam should be centered over the bar code, but it can be
positioned in any direction for a good read.
Linear Bar Code
10
2D Matrix Bar Code
1470B Imager Quick Start Guide
