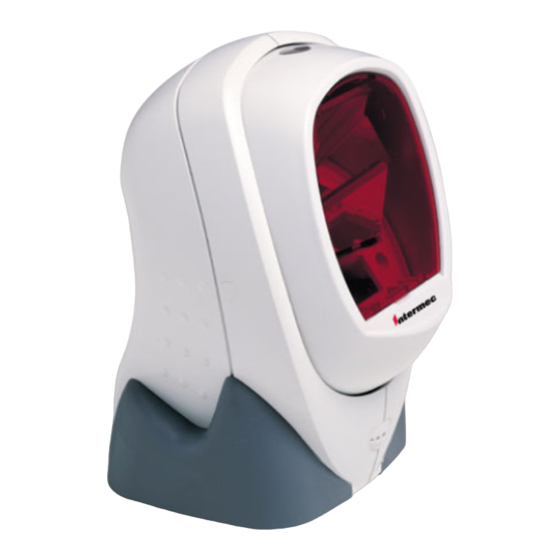

Getting Started Guide
MaxiScan 2220
Presentation Scanner
Guía de Iniciación
Guide de Démarrage
Anleitung für Einsteiger
P/N 3-430049-01
Guida Introduttiva
Guia de Iniciação

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MaxiScan 2220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Intermec MaxiScan 2220

  • Page 1 Getting Started Guide MaxiScan 2220 Presentation Scanner Guía de Iniciación Guida Introduttiva Guide de Démarrage Guia de Iniciação Anleitung für Einsteiger P/N 3-430049-01...
  • Page 2: Installation

    Introduction Use this Getting Started Guide to set up the MaxiScan 2220 for most terminal connections and symbologies. If necessary, use the EasySet setup software for additional configuration possibilities and terminal connections. Basic setup Configuración básica Configuration de base Grundkonfiguration Configurazione di base Configuração básica...
  • Page 3: Keyboard Wedge

    Keyboard wedge (for PC) System power OFF Connect cables Din/mini-Din adaptor cable power supply (normally not required) System power ON Select keyboard QWERTY English QWERTZ German PC wedge cable P/N 3-414037-01 AZERTY French QWERTZ Swiss / French QWERTY Swedish / Finnish QWERTY Norwegian QWERTY Spanish Customize parameters (optional)
  • Page 4 RS-232 C System power OFF Connect cables Standard RS-232 C cable P/N 3-414032-00 Scanner power ON System power ON Read this code (standard RS-232 C PC serial port compatible) 9600 baud, 7 data bits, even parity, 2 stop bits postamble = carriage return + line feed...
  • Page 5: Reading Distance

    Symbology Disable all symbologies Select symbology Code 39 Code 128 / EAN 128 Test Code 39 CODE-39 Code 128 CODE-128 End basic setup Reading distance UPC-A, UPC-E, EAN-8, EAN-13 (UPC-A -> EAN-13) UPC-A, UPC-E, EAN-8, EAN-13 (UPC-A -> UPC-A) UPC-A Default setup EAN 13 1234567890128...
  • Page 6: Laser Warnings

    Full setup with EasySet System power OFF Connect RS-232 C cable (P/N 3-414032-00) Scanner power ON System power ON EasySet setup Read this code Start EasySet software Laser warnings English USA DHHS Standard 21CFR 1040.10 and 1040.11: Class IIa Laser Product IEC 825-1 (1993) EN 60825-1 (1997): Class 1 Laser Product Avoid long term viewing of direct laser light.
  • Page 7: Regulatory Statements

    Regulatory statements Intermec hereby declares that the MaxiScan 2220 has been tested and found compliant with the below listed standards as required by the EMC Directive 89/336/EEC as amended by 92/31/EEC and by the Low Voltage Directive 73/23/EEC as amended by 93/68/EEC:...
