Summary of Contents for Palmgren 61101C

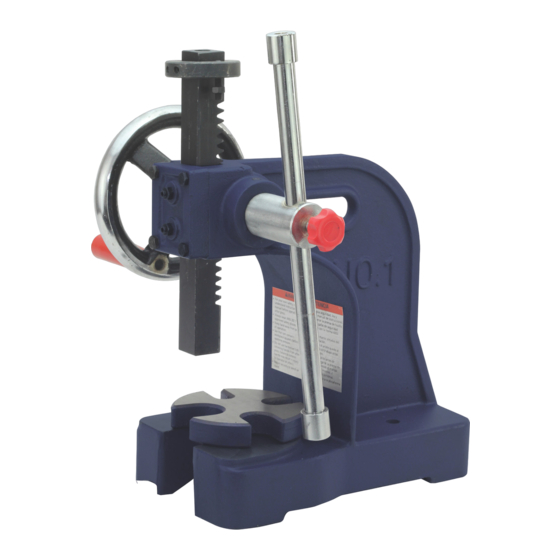

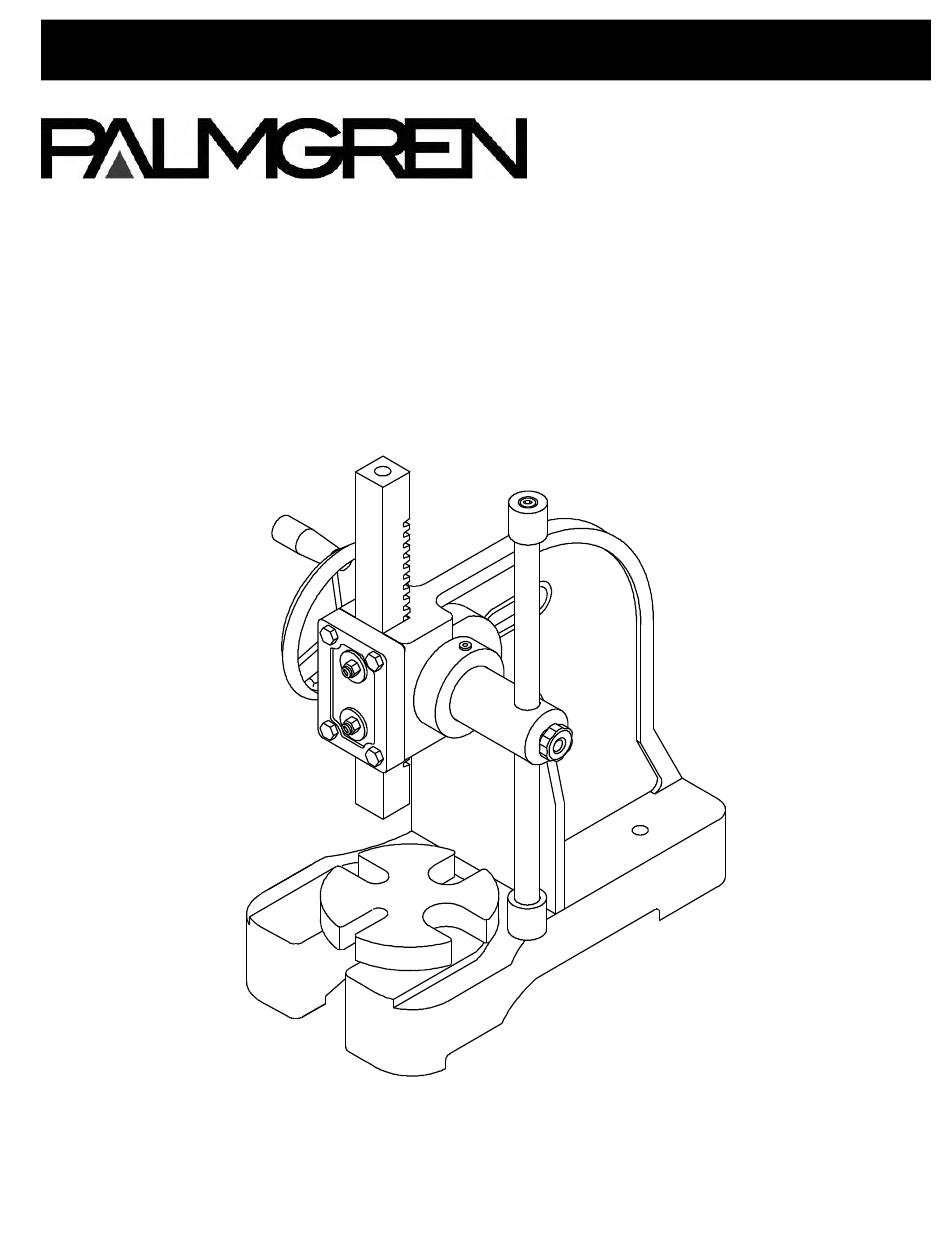

- Page 1 & parts list 61101C 1-Ton ARBOR PRESS WITH DEPTH STOP COLLAR Read carefully and follow all safety rules and operating instructions before first use of this product. 37082.00 - 0113...
- Page 2 Palmgren Operating Manual & Parts List 61101C DESCRIPTION Palmgren Arbor Press is designed for riveting, squeezing, bending, punching, flattening, removing a bearing or pressing in bearings. Removable, rotating, machined anvil has 4-slots to provide convenient support for workpieces that vary in size and shape.
- Page 3 • Work stands – 2 years The obligation of Palmgren is limited solely to the repair or replacement, at our option, at its factory or authorized repair agent of any part that should prove deficient. The warranty does not cover expendable and/or wear parts (i.e. v-belts, coated abrasives), damage to tools arising from alteration, abuse or use other than their intended purpose, packing and freight.
- Page 4 Palmgren Operating Manual & Parts List 61101C Figure 2 - Replacement Parts Illustration for 1-Ton Arbor Press REPLACEMENT PARTS LIST FOR ARBOR PRESS Ref. Part Number for: Description 61101C Qty. Body † Ram with Magnet 28803.00 Pinion 28804.00 6-1.0 x 25mm Socket Head Bolt 28805.00...
