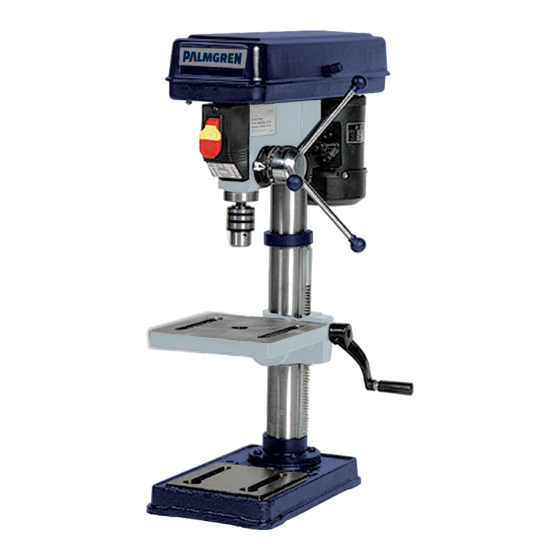

- Page 1 & parts list 80110A 10″ BENCH MODEL DRILL PRESS Read carefully and follow all safety rules and operating instructions before first use of this product. 30796.00-0509...
-
Page 2: Safety Rules
80110A DESCRIPTION SAFETY RULES Palmgren Drill Presses feature a heavy cast iron base, column collar, Before any work is done, carefully read the cautions listed. Working work table and head. Work table height is adjustable using rack safely prevents accidents. -
Page 3: Installation
Palmgren Operating Manual & Parts List 80110A • Rotate table assembly around column. Adjust rack retaining SAFETY RULES (CONTINUED) • Check for damaged parts. Check for alignment of moving parts, ring as necessary to prevent binding of rack. • Attach crank handle (Ref. No. 7) to shaft on worm gear, rotate... -
Page 4: Grounding Instructions
Palmgren Operating Manual & Parts List 80110A INSTALLATION (CONTINUED) Do not use a 3-prong to 2-prong grounding adapter unless permit- • Be sure to bolt drill press to bench securely to prevent tipping ted by local and national codes and ordinances. -
Page 5: Speed Adjustments
Palmgren Operating Manual & Parts List 80110A OPERATION (CONTINUED) drill press. This will loosen the belt and permit relocating the belt to the desired pulley groove for the required spindle speed • On units equipped with the Laser-Guide attachment, repairs (See Figure 5). -
Page 6: Maintenance
Palmgren Operating Manual & Parts List 80110A • Apply lubricant to rack (teeth) on quill (Figure 7, Ref. No. 27) MAINTENANCE while extended below drill press head. • Apply lubricant to rack and pinion gear (Figure 6, Ref. Nos. 9... -
Page 7: Troubleshooting
Palmgren Operating Manual & Parts List 80110A TROUBLESHOOTING SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION Spindle does not turn 1. No power to drill press 1. Check wiring, fuse or circuit breaker 2. Defective switch 2. Replace switch 3. Defective motor 3. Replace motor... - Page 8 Palmgren Operating Manual & Parts List 80110A Figure 6 - Replacement Parts Illustration for Base...
- Page 9 Palmgren Operating Manual & Parts List 80110A REPLACEMENT PARTS LIST FOR BASE Ref. Part Description Number Qty. Base 21811.00 Column and collar assembly 21812.00 8-1.25 x 20mm Hex head bolt Table and bracket assembly (Including Ref. Nos. 13 and 15) 21813.00...
- Page 10 Palmgren Operating Manual & Parts List 80110A Figure 7 - Replacement Parts Illustration for Head...
- Page 11 Palmgren Operating Manual & Parts List 80110A REPLACEMENT PARTS LIST FOR HEAD Ref. Ref. No. Description Part No. Qty. No. Description Part No. Qty. Drill press head † Motor pulley 21796.00 Stop pin 21778.00 V-belt 21797.00 8-1.25 x 8mm Set screw Pulley housing 21798.00...
-
Page 12: Two Year Limited Warranty
• Work stands – 2 years The obligation of Palmgren is limited solely to the repair or replacement, at our option, at its factory or authorized repair agent of any part that should prove deficient. The warranty does not cover expendable and/or wear parts (i.e. v-belts, coated abrasives), damage to tools arising from alteration, abuse or use other than their intended purpose, packing and freight.
