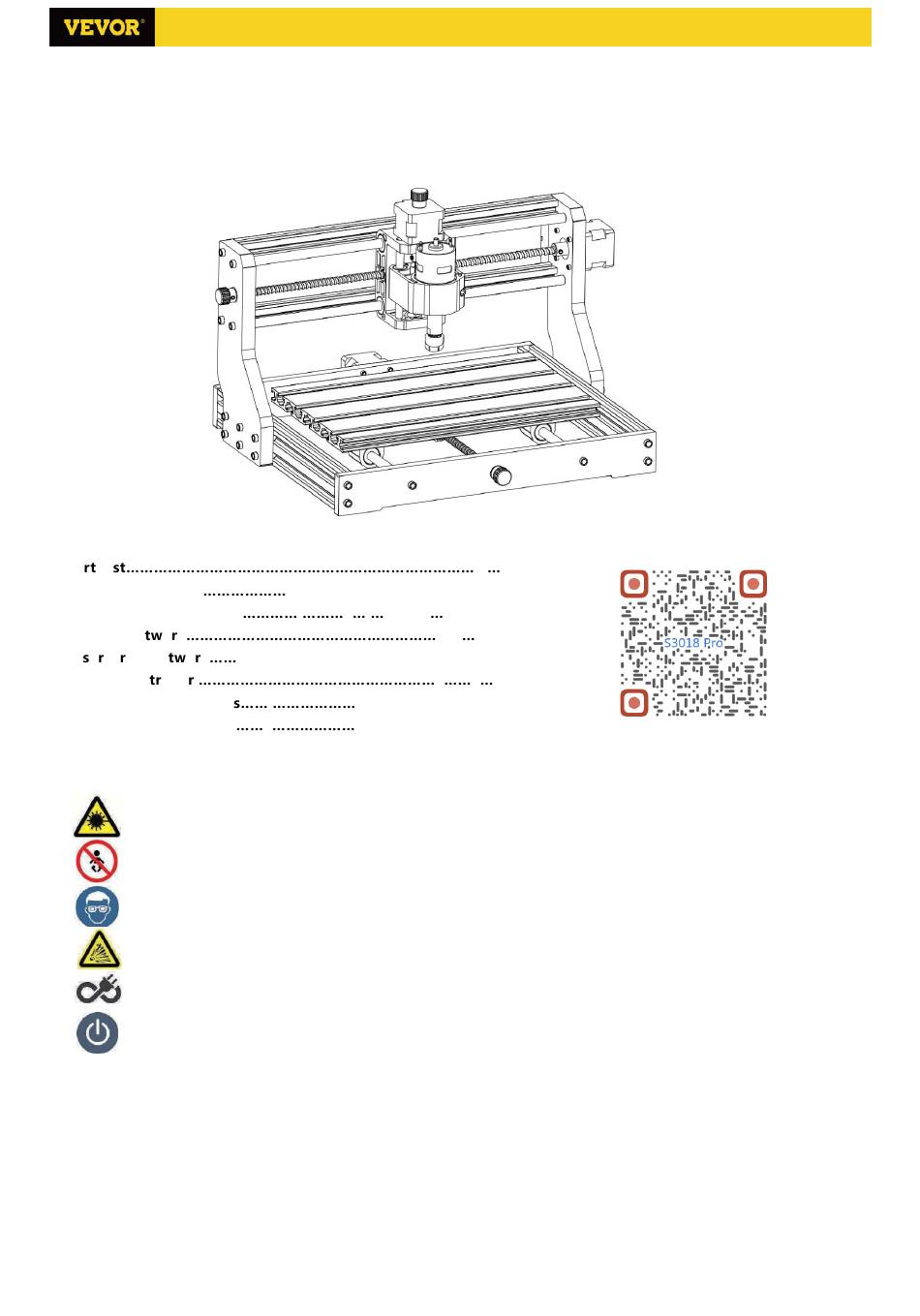

S3018 Pro
1. Pa
Li
3. Control board and Laser
4. Candle Sof
a e
5. La e G bl Sof
a e
6. Offline Con olle
7. Restore factory setting
8. Online guide and video
Safty Notice
Avoid direct laser radiation on eyes or skin
Away from children
Always wear protective glasses when use the laser
Prohibited from use in flammable objects or gases
Please cut off the power immediately in case of emergency
Shutdown steps: first cut off the power, then pull out the USB cable
Precautions
(1). All parts description just for illustrative purpose. If there is any difference, please refer to the actual part shape.
(2). Please make sure that the machine is under care when it is working.
(3). If your machine is equipped with an offline controller, please note that the offline controller and the computer
cannot be connected to the engraving machine at the same time, otherwise it will not work normally.
(4). If the U disk in the machine kit can't be read, please scan the QR code to see how to download the software and
related content.
CNC Engraving Machine
Catalog
....................................................3
.
.. . ........... ..............7
..............................................................11
.
.................................14
..
.................................14
Scan for videos and guides
... 2
...... ......7
..
.. 13
14
1/
S3018 Pro Ver 2.3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VEVOR S3018 Pro
Summary of Contents for VEVOR S3018 Pro
- Page 1 (4). If the U disk in the machine kit can't be read, please scan the QR code to see how to download the software and related content. S3018 Pro Ver 2.3...
- Page 2 Inner He agon Wrench 2/2.5/3/4/5mm 1 Set 30-2 Scre M6*40 4 PCS Nut Wrench 14# / 17mm 1 Set 30-3 Scre M6*45 4 PCS Soft brush 30-4 Butterfl nut 4 PCS U Disk 30-5 Washer M6*2mm 4 PCS 2/14 S3018 Pro Ver 2.3...
- Page 3 M5-20 12PCS 03: Aluminum profile 2040*295mm 2PCS 16: Guide block 4PCS 09: Φ10*295mm 2PCS Y Smooth axis Step ① Step ② 24: M6*12 Screw 10PCS 01: Aluminum profile 15180*300mm 1PCS 26: Trapezoidal nut M6-30 10PCS 3/14 S3018 Pro Ver 2.3...
- Page 4 23: M3*18 screw 4PCS Step ⑤ Step ⑥ 18: Hand knob X Φ8*18mm 1PCS 27: M4*5 1PCS Set Screw for knob 21: M5*20 Screw 10PCS 25: Trapezoidal nut M5-20 6PCS 06: Connecting plate (left) 1PCS 4/14 S3018 Pro Ver 2.3...
- Page 5 C1: Control board 1PCS C4: M5-10 4PCS Ship nut C2: Column 4PCS The plastic column must C3: M5*10 4PCS be assembled between Screw the control board and the aluminum parts. Step 5/14 S3018 Pro Ver 2.3...
- Page 6 Be sure to turn of the switch before you start laser engraving. 4. Candle Software Candle is a GUI application for GRBL-based CNC-machines with G-Code visualizer. Candle is an open-source software suitable for CNC machine tool processing. It supports G code file processing and visual display. S3018 Pro Ver 2.3...
- Page 7 "Settings" option in the upper left corner. Selecting the setting will pop up the setting window. Under "Connection", select the port name you queried, select the baud rate 115200, and then click the "ok" to finish the setting. S3018 Pro Ver 2.3...
- Page 8 At the same time, the content of the G-Code will be displayed in the lower command bar. During processing, the machine will run one by one according to the G-Code commands. S3018 Pro Ver 2.3...
- Page 9 You can choose the pause and stop buttons below when engraving. (After pausing, click again to continue the previous carving. After termination, click Send to start processing from the beginning). (7). Finished processing After the processing is completed, the visualization window prompts that the engraving is completed and the time required for carving. S3018 Pro Ver 2.3...
- Page 10 . Click Crea e af er se ing. S3018 Pro Ver 2.3...
- Page 11 The length of time required for engraving depends mainly on the speed of the engraving, the speed of the idling, and the size of the picture. Users can view the total time spent on the software or on the progress bar on the touch screen. S3018 Pro Ver 2.3...
- Page 12 File list Select the file to be engraved. Support documents include: NC, NCC, TAP, TXT, Gcode, GCO, NL, CUT, CNC . Y+: up, Y-: down OK/SPN: Confirm the selection and enter the confirmation engraving page. 6.4 Confirm the engraving page: Confirm that the engraving file is started without errors. S3018 Pro Ver 2.3...
- Page 13 Q: The picture engraved is the opposite of the original picture A: Just need to adjust on software [ Reversal X/Y axis] Q: The picture engraved distortion. A: The screw rod and motor shaft are not locked and slipping. S3018 Pro Ver 2.3...
- Page 14 Please scan the QR code below to watch the machine assembly video. If the U disk in the machine kit can't be read, please scan the QR code to see how to download the software and related documents. Powered by VEVOR 2020 S3018 Pro Ver 2.3...
