VEVOR L4040 Manual

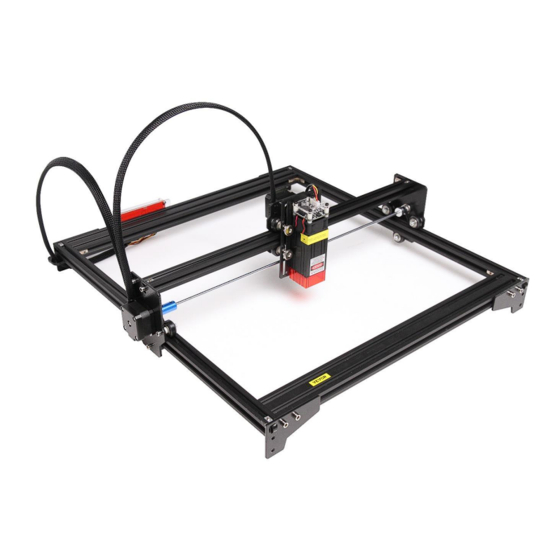

Laser engraving machine
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

L4040
Laser Engraving Machine
Warning
Strictly prohibit laser radiation of the eyes!
Strictly prohibit watching laser without wearing protective glasses!
Strictly prohibit using by children!
Strictly prohibit using this machine unattended!
Scan for assemble video
L4040 V1.0
1/7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L4040 and is the answer not in the manual?

Questions and answers

Related Manuals for VEVOR L4040

Summary of Contents for VEVOR L4040

  • Page 1 L4040 Laser Engraving Machine Warning Strictly prohibit laser radiation of the eyes! Strictly prohibit watching laser without wearing protective glasses! Strictly prohibit using by children! Strictly prohibit using this machine unattended! Scan for assemble video L4040 V1.0...

  • Page 2: Parts List

    —— Laser package（Optional） Laser kit Optional 1Set Inner hexagon screw M3x6 Control board package（15） Control board VIGO-13 Acrylic plate for control board A —— Acrylic plate for control board B —— Column Φ3*7 Inner hexagon screw M3×18 L4040 V1.0 4040：V1.0...

  • Page 3: Machine Assembly

    01: Portal frame component 03: Aluminum profile 2020*555mm 03: Aluminum profile 2020*555mm 08: Synchronous 11: Set screw M5*6 4PCS belt 620mm 12: Square nut M5 4PCS 08: Synchronous belt 620mm 2PCS Stepper motor Y Stepper motor X L4040 V1.0 4040：V1.0...

  • Page 4: Laser Installation

    C6: Nut M3 4PCS 09: Screw M5*8 2PCS 14: Ship nut 2PCS 3. Laser Installation 05: Acrylic plate B L1: Laser kit 1Set Weak light switch for X-Part 1PCS 13: Manual nut M5 4PCS M1: Screw M3*6 4PCS L4040 V1.0 4040：V1.0...

  • Page 5: Cable Connection

    The wire is stuck in hole of the fixed wire block. Laser Stepper motor X-Stepper motor wire 4P-6P, 1400mm Laser 3P,1500mm X-Stepper motor 3 pieces of cable tie. Stepper motor Y1-Stepper motor wire 4P-6P, 800mm L4040 V1.0 4040：V1.0...

  • Page 6: Adjust Focus

    Open our website www.vevorengraver.com Find the control software for L4040, then click to download it to your computer. Green software doesn't need to be installed. Decompress the file you downloaded just now. The software running OS is Win7 Win8 and Win10.
  • Page 7 Please visit our website: www.vevorengraver.com for more new products and software. Please be sure to download the VevorWorks for this machine. Please refer to the Software Installation Manual for control software instructions. Please contact us if you have any questions. Powered by VEVOR 2022 L4040 V1.0...
