The user manual of the desktop-CNC
Notice:
1. This machine should be used with the PC parallel port and controlled by Mach 3 or other software.
The PC parallel port should work in condition of the EPP mode, the setup of the EPP mode should be
applied on the main board BIOS.
2. You'd better use the PC to control the machine, especially for this machine and do not install other
software if conditions permit. And please do not use the Laptop to control the machine, the battery of
some laptops will impact the pulse signal of the machine and the voltage of some parallel port is very low,
it will cause the lost of the signal.
Warn:
You should setup the software correctly, it will make the machine works well. If you do not do it well and
try to run the machine, it may damage the machine or cause the danger.
When you install or setup the machine, please do not turn on the control box, it may cause some
damages.
Please do not put the connectors on the control box, when it is power on. You should regulate the
spindle as the low speed when you want to restart it. The interval of the open/close button time should be
at least 30s, when you restart the spindle or turn on the control box again, otherwise it will cause the
damages of the control box.
Our machine is 220V, when it is power on, please do not open the control box, do not touch the
wiring connectors and not touch the running cutters, please wear the glasses or mask to protect yourself.
1. Open the Mach 3 file, double click the "Mach3xxxxx.Exe"to start.
1.Software
0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VEVOR 3020
Summary of Contents for VEVOR 3020
- Page 1 The user manual of the desktop-CNC Notice: 1. This machine should be used with the PC parallel port and controlled by Mach 3 or other software. The PC parallel port should work in condition of the EPP mode, the setup of the EPP mode should be applied on the main board BIOS.
- Page 2 2. Click the “Next” 3. Click the “Yes”...
- Page 3 4. Click the “Next”...
- Page 4 5. Click the “Next” 6. Click the “Next”...
- Page 5 7. Click the “Ok”...
- Page 6 8. Click the” Finish” 9.Click the“Ok”...
- Page 7 10.Click the“Ok”...
- Page 8 After installing the Mach 3, on the desktop, there will occur 3 icon as follows: Notice: do not open them, please restart your PC at first (if you open the software not restart PC,it need uninstall fully and reinstall it) After restarting the PC, please double click the “MACH 3 MILL”...
- Page 9 3. See as below,open”Config--Ports and Pins” to enter the setup. 4. To check whether all the data is same as the follows in the big red circle and then choose OK to continue.
- Page 10 5. Click “Motor Outputs” to setup the Pin of the stepper motor as follow...
- Page 11 This part is very important, please check your setup is as same as the data above. Even a small error will cause the machine working incorrectly. Do not forget to save the setup. Remark: (1). If you want to use the 4th axis(A axis), you can setup the A axis data as follows: (2).”Dir Low Active”...

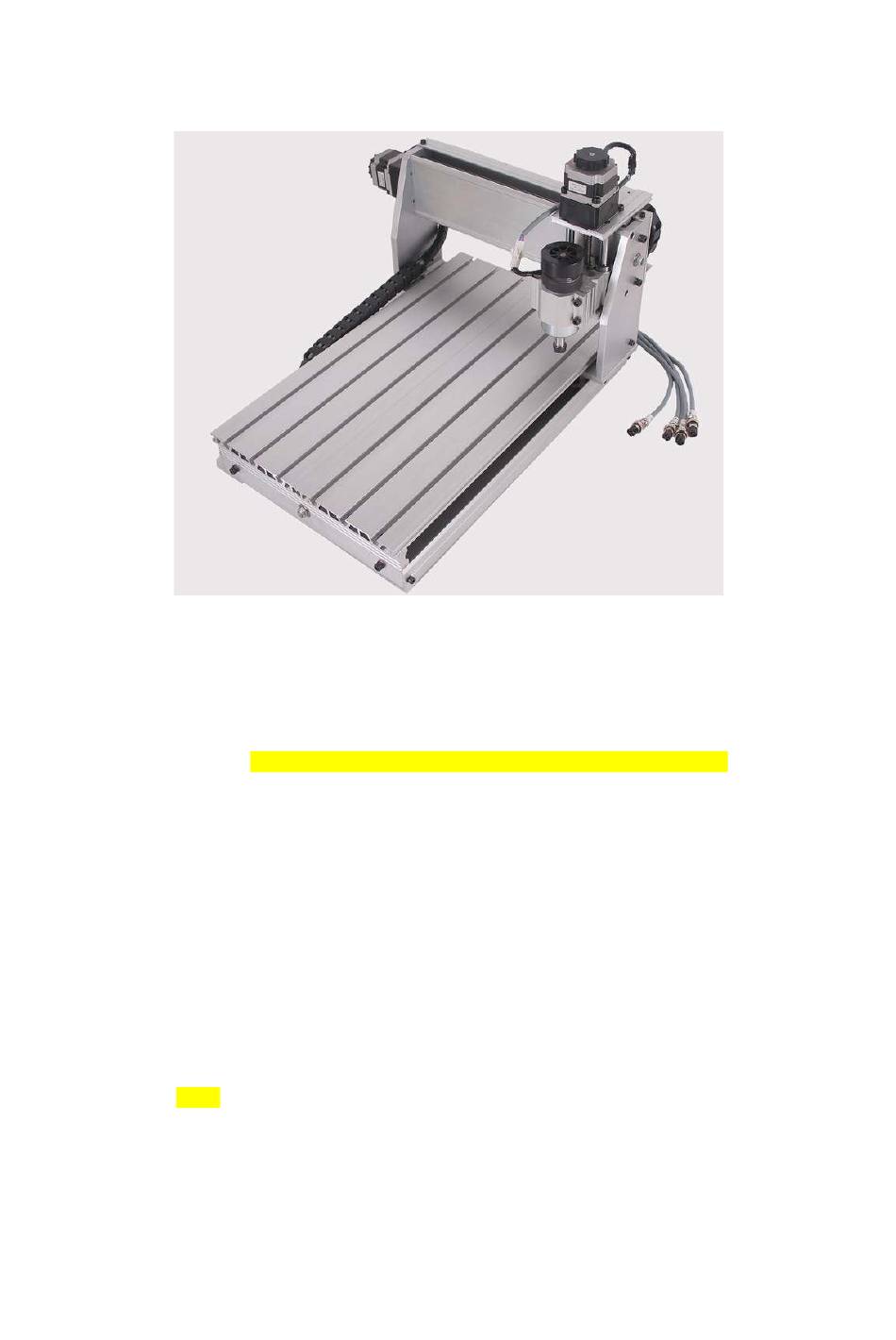

- Page 12 3. Try to use your CNC 1. First let us to learn this machine, below take 3020 for example, The full kit has the machine(the Frame), the electrical control box, X,Y,Z stepper motors, the spindle and the spare parts box(it contains the 4 pcs presser feet, 5 pcs test bits, 1 pair of spare carbon brush, 1 pcs fuse pipe,ancethe spanner of the spindle, the 6 hexagonal spanner and the nuts and screws).
