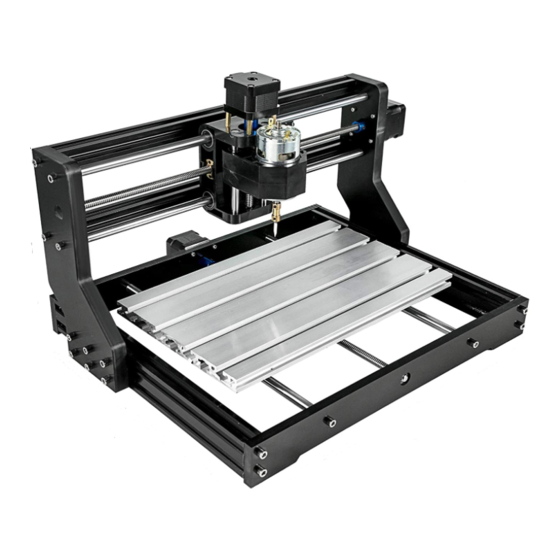

S3018 Prover
1. Part List.................................................................................2
2. Machine Assembly......................................................................3
3. Candle Software.....................................................................8
4. Offline Controller ................................................................11
5. Restore factory settings..........................................................12
6. Online guide and video...........................................................12
Safty Notice
Avoid direct laser radiation on eyes or skin
Away from children
Always wear protective glasses when use the laser
Prohibited from use in flammable objects or gases
Please cut off the power immediately in case of emergency
Shutdown steps: first cut off the power, then pull out the USB cable
Precautions
(1). All parts description just for illustrative purpose. If there is any difference, please refer to the actual part shape.
(2). Please make sure that the machine is under care when it is working.
(3). If your machine is equipped with an offline controller, please note that the offline controller and the computer
cannot be connected to the engraving machine at the same time, otherwise it will not work normally.
(4). If the U disk in the machine kit can't be read, please scan the QR code to see how to download the software and
related content.

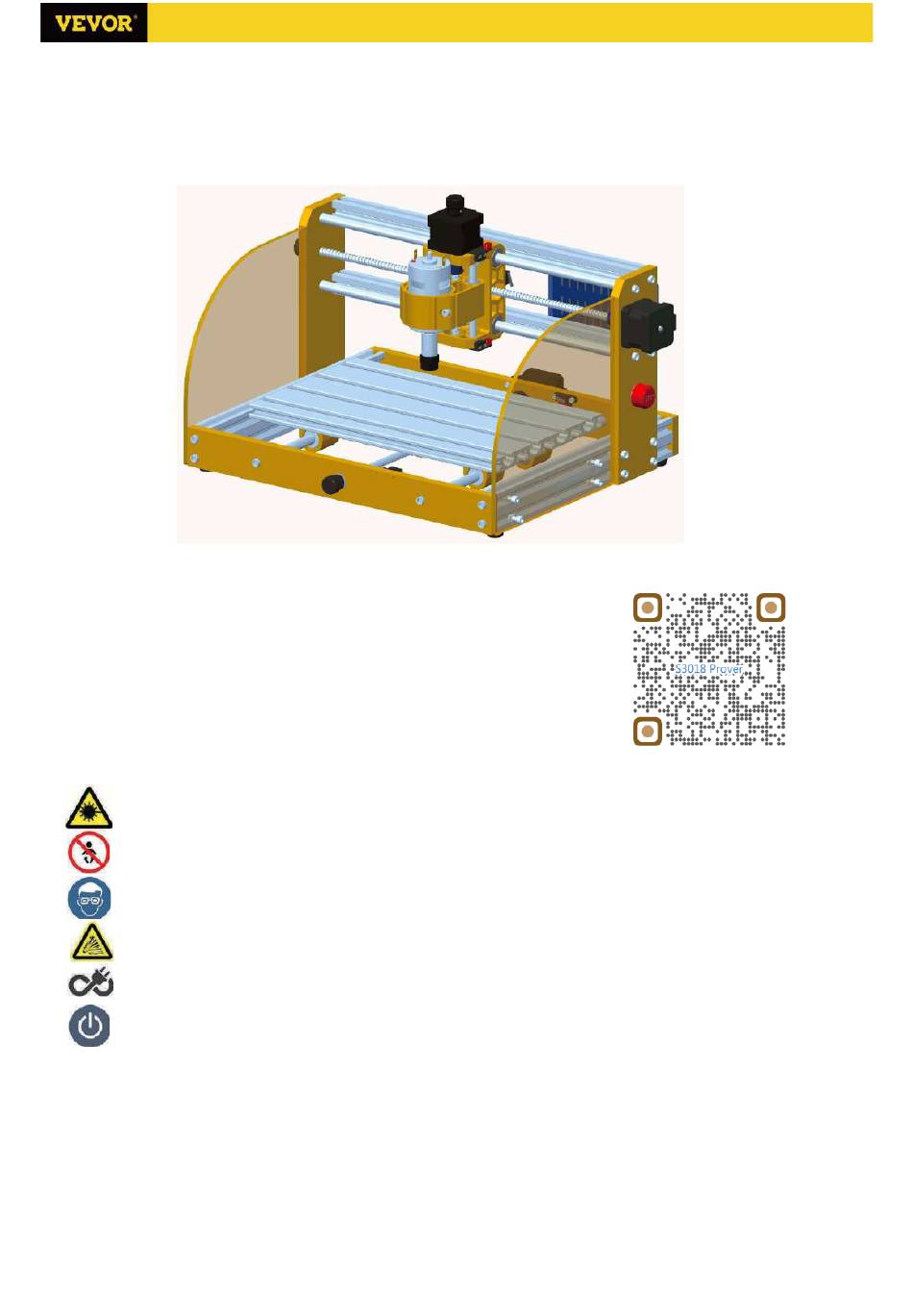

CNC Engraving Machine
Catalog
Scan for videos and guides
1/12
Advertisement
Related Manuals for VEVOR S3018 Prover
Summary of Contents for VEVOR S3018 Prover
-
Page 1: Table Of Contents
S3018 Prover CNC Engraving Machine Catalog Scan for videos and guides 1. Part List…………………………………………………………………...…2 2. Machine Assembly………………............3 3. Candle Software………………………………………………..…..8 4. Offline Controller ……………………………………………..……..…11 5. Restore factory settings…….……………….........12 6. Online guide and video……..……………….........12 Safty Notice Avoid direct laser radiation on eyes or skin... -
Page 2: Part List
1.Parts List 3018 Prover Parts List Optional package Laser Guard plate Emergency stop and limit switch Offline controller Part No Part Name Explanation Quantity Picture Laser package （ optional ） Component for X-axis —— 1Set Part No Part Name Explanation Quantity Picture Laser kit... -
Page 3: Machine Assembly
2. Machine Assembly ① X-axis and Y-axis component assembly 1: X-axis component 1Set 2: Y-axis component 1Set 3: M5*16 8PCS 4: Trapezoidal nut M5-20 8PCS 3018 Prover Ver：V1.2 3/12... - Page 4 ② Control board and emergency stop switch assembly G1: Emergency stop switch 1Set C3: Ship nut M5-10 4PCS C1: Control board 1PCS C2: M5*12 4PCS 3018 Prover Ver：V1.2 4/12...
- Page 5 ③ Y-limit switch and rubber mat assembly G8: M3*6 4PCS G3: Y-limit switch 2PCS G11: Shim 2PCS 5: M4*10 4PCS 7: Rubber mat 4PCS 6: Trapezoidal nut M4-20 4PCS 3018 Prover Ver：V1.2 5/12...
- Page 6 ④ Guard plate assembly D1: Guard plate 2PCS D2: M5*10 8PCS C3: Ship nut M5-10 8PCS 3018 Prover Ver：V1.2 6/12...
- Page 7 3. Instructions for control-board 3P Laser Offline Controller Z/Y2-Axis Z1-Limit Y1-Axis Z2-Limit Y1-Limit Y2-Limit X-Axis X-Limit X-Limit Spindle Motor 0-500W Hold Power Prode Spindle Emergency Motor Stop Pwoer Switch 24V DC Power 24V DC 4P,Length 480mm Z-Axis X-Limit Spindle 2P,Length 480mm 2.54-3P Length 600mm Motor...
-
Page 8: Candle Software
3. Candle Software Candle is a GUI application for GRBL-based CNC-machines with G-Code visualizer. Candle is an open-source software suitable for CNC machine tool processing. It supports G code file processing and visual display. Supported functions: (1) Controlling GRBL-based CNC-machine via console commands, buttons on form, numpad. - Page 9 After installing the driver, open the device manager of the computer and click on the port option to see the content inside the red box on the screen shown in the figure below (the port information is in brackets). Remember the port information queried above, switch to the Candle software interface and click the "Settings"...
- Page 10 the middle wheel can zoom in and out of the graphics. At the same time, the content of the G-Code will be displayed in the lower command bar. During processing, the machine will run one by one according to the G-Code commands. (5).
-
Page 11: Offline Controller
4. Offline controller (Optional) Note: The offline controller and the computer cannot be connected to the engraving machine at the same time. When using the offline controller, please make sure that the USB cable of the machine and the computer is disconnected. 4.1 Main page: Y-: right Y+: left Z+: Send $X to the GRBL motherboard to unlock it. -
Page 12: Restore Factory Settings
Please scan the QR code below to watch the machine assembly video. If the U disk in the machine kit can't be read, please scan the QR code to see how to download the software and related documents. Powered by VEVOR 2020 12/12...
