EasyCoder PX4i and PX6i Printers

• Switch oﬀ the power and disconnect the power cord.

• Disconnect all communication cables.

• Open the right-hand door.

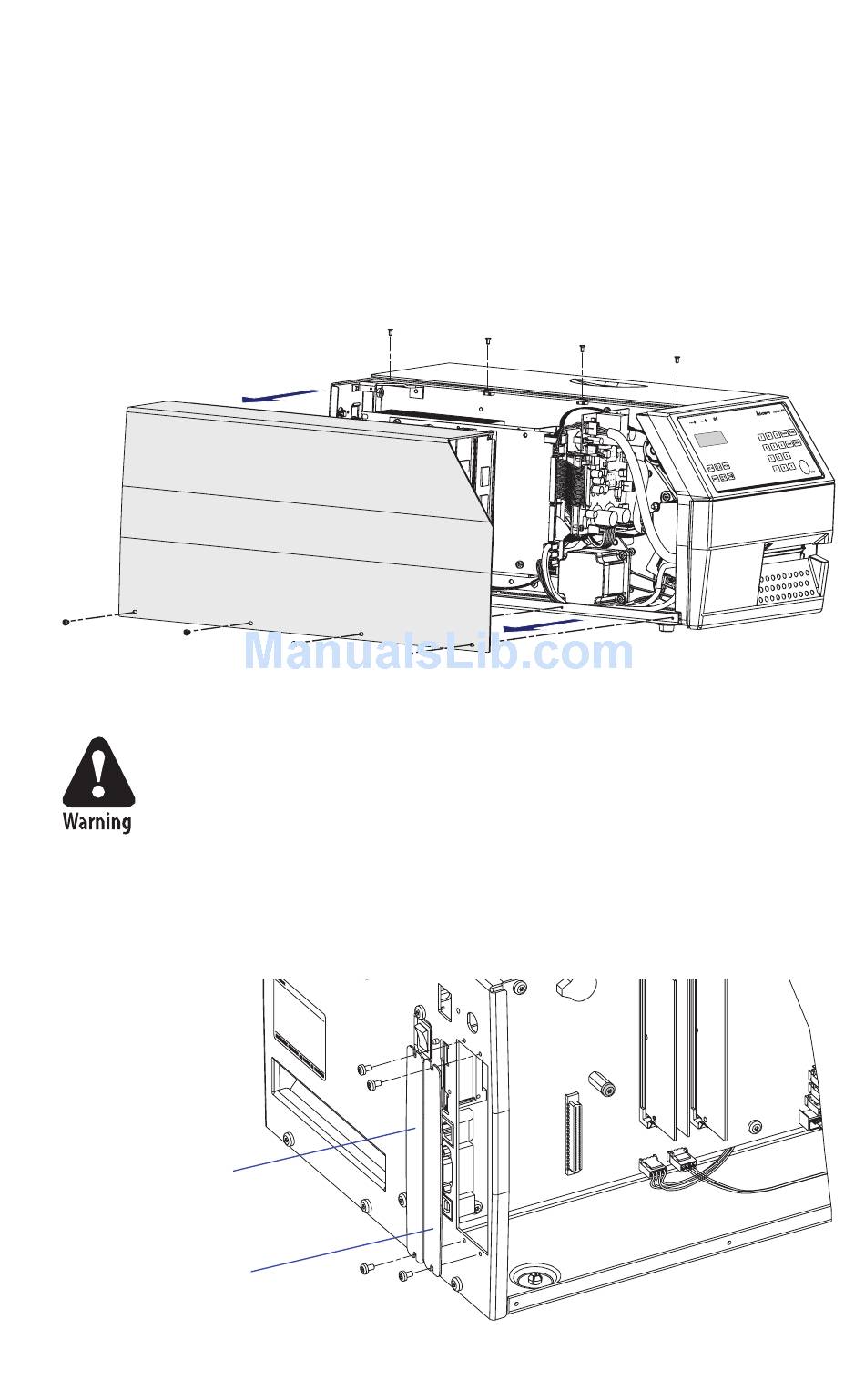

• Remove the eight #T10 Torx screws that hold the left-hand cover.

• Put the cover aside on a soft cloth or similar to avoid scratches.

Th e electronics compartment contains high voltage compo-

nents and wires. Do not open the electronics compartment

before the printer is safely disconnected from any AC

supply.

• Remove the one or two cover plates depending on how many interface

boards you are going to install. Each plate is held by two #T10 Torx

screws. Always start installation at the innermost position.

Inner cover plate

Outer cover plate

Double Serial Interface Kit Installation Instructions

Chapter 2 — Physical Installation
