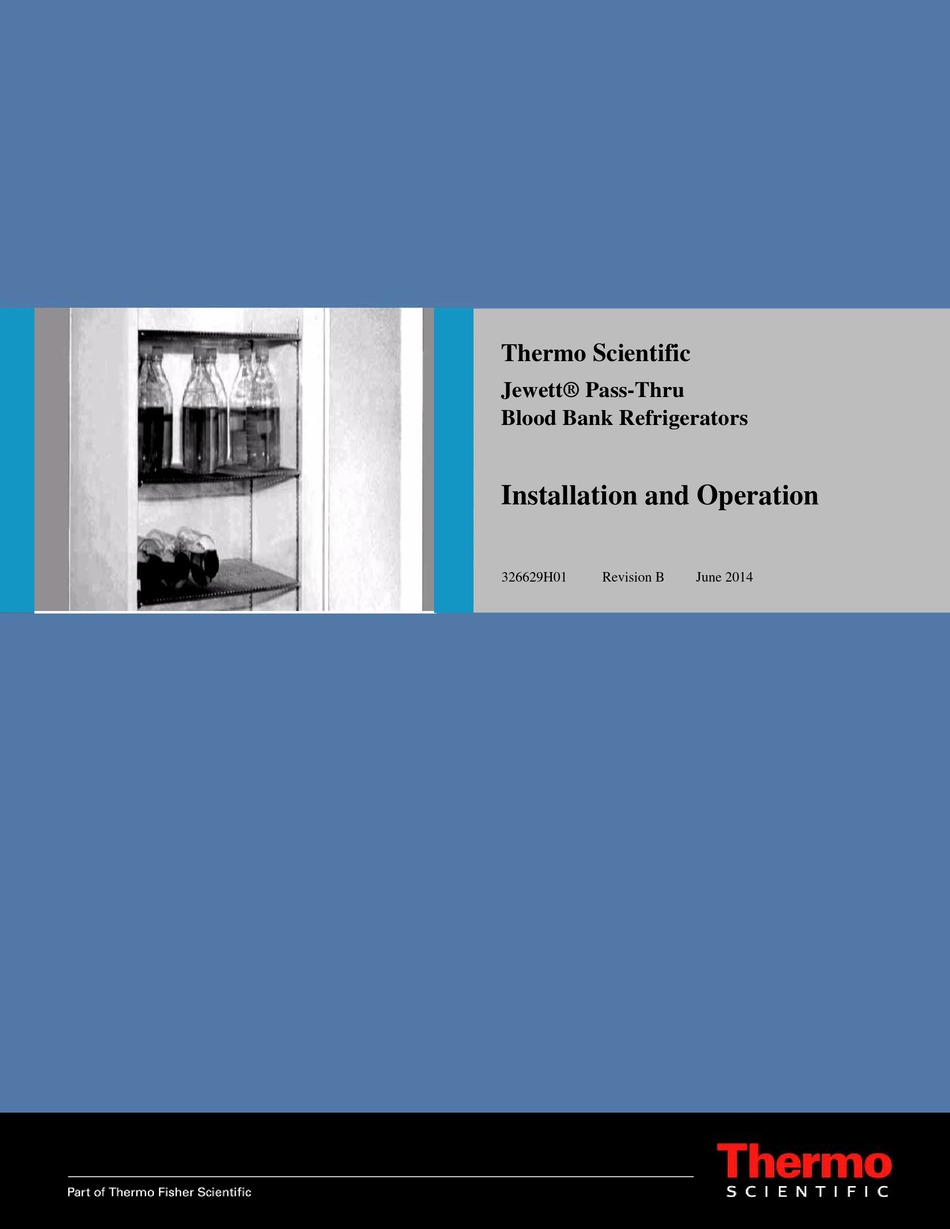

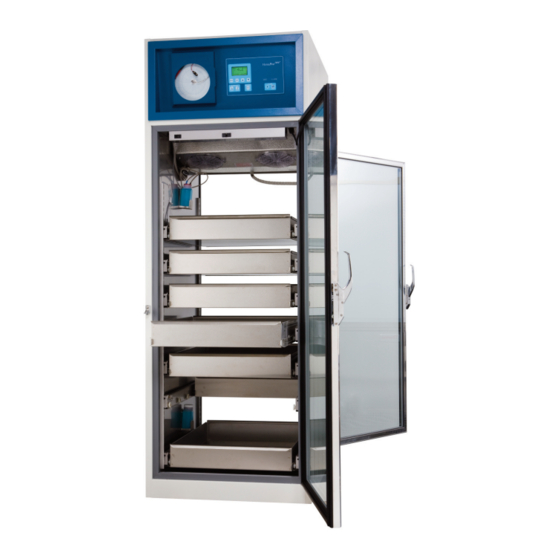

- Page 1 Thermo Scientific Jewett® Pass-Thru Blood Bank Refrigerators Installation and Operation 326629H01 Revision B June 2014...
- Page 2 © 2014 Thermo Fisher Scientific Inc. All rights reserved. IMPORTANT Read this instruction manual. Failure to follow the instructions in this manual can result in damage to the unit, injury to operating personnel, and poor equipment performance. CAUTION All internal adjustments and maintenance must be performed by qualified service personnel. Material in this manual is for informational purposes only.
-
Page 3: Table Of Contents
Hinge Adjustment..............7-19 Latch and Strike Adjustment..........7-20 Chapter 8 Maintenance ............... 8-21 Gasket Maintenance.............. 8-21 Condenser Maintenance ............8-22 Bulb Maintenance..............8-23 Chapter 9 Troubleshooting ..............9-29 Chapter 10 Accessories ................ 10-33 Thermo Scientific Jewett Pass-Thru Blood Bank Refrigerators... - Page 4 Table of Contents Jewett Pass-Thru Blood Bank Refrigerators Thermo Scientific...
-
Page 5: Chapter 1 Introduction
Before installing, using or maintaining this product, please be sure to read this manual and product warning labels carefully. Failure to follow these instructions may cause this product to malfunction, which could result in injury or damage. Thermo Scientific Jewett Pass-Thru Blood Bank Refrigerators... - Page 6 Disconnect the unit from all power sources before cleaning or performing other maintenance on the product or its controls. The following symbols are used in caution, warning and informational labels attached to the unit: Jewett Pass-Thru Blood Bank Refrigerators Thermo Scientific...
-
Page 7: Chapter 2 Inspection For Damage
Do not return goods to the manufacturer without written authorization. When submitting a claim for shipping damage, request that the carrier inspect the shipping container and equipment. Thermo Scientific Jewett Pass-Thru Blood Bank Refrigerators... - Page 8 Inspection for Damage Jewett Pass-Thru Blood Bank Refrigerators Thermo Scientific...
-
Page 9: Chapter 3 Operating Standards
Bank models are used to support a medical application/s, it is an accessory to a medical device and is therefore considered as a medical device in its own right by the regulatory body (e.g.FDA). Thermo Scientific Jewett Pass-Thru Blood Bank Refrigerators... - Page 10 Operating Standards Packing List This product is intended for use: • As cold storage in research use. • As a medical device for diagnostic use (storage of samples not intended to be re-introduced to the human body). • As a medical device for blood component storage use and possible re-introduction to the human body.
-
Page 11: Chapter 4 Installation
If the cabinet sets on an uneven floor, a slight rocking or vibration might result when the condensing unit is set in operation. Thermo Scientific Jewett Pass-Thru Blood Bank Refrigerators... - Page 12 • Do not store flammable materials close to the refrigerator as fire, explosion or death may result. • Do not store flammable materials in the refrigerator as fire, explosion or death may result. Jewett Pass-Thru Blood Bank Refrigerators Thermo Scientific...
-
Page 13: Wiring
Use a dedicated branch circuit breaker and time delay fuses for #12 AWG circuits. CAUTION Do not use an outlet that can be turned off by a switch. Thermo Scientific Jewett Pass-Thru Blood Bank Refrigerators... - Page 14 Installation Wiring Jewett Pass-Thru Blood Bank Refrigerators Thermo Scientific...
-
Page 15: Chapter 5 Operation
All models have been provided with an electric condensate evaporator located at the cabinet bottom. Periodic cleaning of the condensate pan will ensure proper operation. Refer to image below for location of condensate pan. Thermo Scientific Jewett Pass-Thru Blood Bank Refrigerators... - Page 16 Operation Performance Condensate Pan Jewett Pass-Thru Blood Bank Refrigerators Thermo Scientific...
-
Page 17: Chapter 6 Installation And Removal Of Drawers
1. Push into slots in rear standard as shown in Step # 1. Make certain that the opposite drawer slides are in the same slots in the opposite Slides standards. 2. Push into slots in front standard and press down. If necessary, tap into place. Thermo Scientific Jewett Pass-Thru Blood Bank Refrigerators... -
Page 18: Installation
Installation 1. Place drawer on top of slides and push into rear stops. 2. Align slot on lever with the tabs on the drawer slide. Push lever down to lock in place. Lever Jewett Pass-Thru Blood Bank Refrigerators Thermo Scientific... -
Page 19: Removal
Installation and Removal of Drawers Removal Removal 1. Lift lever up to unlock drawer from the drawer slides. 2. Lift front of drawer up and pull clear of slides. Lever Thermo Scientific Jewett Pass-Thru Blood Bank Refrigerators... - Page 20 Installation and Removal of Drawers Removal Jewett Pass-Thru Blood Bank Refrigerators Thermo Scientific...
-
Page 21: Chapter 7 Hinge And Latch Adjustment
Check the perimeter of the door. If the latch is loose, see latch-adjusting information. 5. Replace cover plate "A." Note To accomplish different offsets, shims are utilized. If replacing hinges, make sure to reuse any shims furnished on the cabinet. Thermo Scientific Jewett Pass-Thru Blood Bank Refrigerators... -
Page 22: Latch And Strike Adjustment
Do not use a nut driver or pliers. Note If replacing latch and strike assembly, make sure to reuse any shims furnished on the cabinet. Jewett Pass-Thru Blood Bank Refrigerators Thermo Scientific... -
Page 23: Chapter 8 Maintenance
Keep the door gaskets clean and debris free by cleaning with a solution of water and a mild detergent. Gently wipe the gasket dry with a soft cloth. Thermo Scientific Jewett Pass-Thru Blood Bank Refrigerators... -
Page 24: Condenser Maintenance
3. Use a vacuum cleaner with hose and brush attachments to clean the front face of the finned surface shown in the image below. 4. Clean up any loose dust and replace the grill. 5. Reconnect the power. Finned Surface Jewett Pass-Thru Blood Bank Refrigerators Thermo Scientific... -
Page 25: Bulb Maintenance
Figure 3. Square base of the bulb Figure 4. Light Cover Failure to replace the bulb shield may result in physical harm. Failure to replace the shield changes the design and voids the warranty. Thermo Scientific Jewett Pass-Thru Blood Bank Refrigerators... - Page 26 3.3 CONTROL OF EVAPORATOR FANS displayed. The fan control mode is selected by means of the “FnC” parameter: FnC = C_n: fans will switch ON and OFF with the compressor and not run during defrost; Thermo Scientific dIXEL Installing and Operating Instructions...
- Page 27 When the digital input is ON the compressor is always OFF. If the nPS activation in the did time is reached, switch off and on the instrument to “HA” restart normal regulation. “LA” Mini "HA2" "LA2" dIXEL Installing and Operating Instructions Thermo Scientific...
- Page 28 Dixell S.p.A. Z.I. Via dell’Industria, 27 N.C. TTL or. X-REP output Line Comp 32010 Pieve d’Alpago (BL) ITALY tel. +39 - 0437 - 98 33 - fax +39 - 0437 - 98 93 13 E-mail: dixell@dixell.com - http://www.dixell.com dIXEL Installing and Operating Instructions Thermo Scientific...
-
Page 29: Chapter 9 Troubleshooting
Turn unit back on after ice is clear. Cold or warm air from building HVAC system blowing directly on Move unit out of HVAC airflow path refrigeration system Troubleshooting table continued on next page Thermo Scientific Jewett Pass-Thru Blood Bank Refrigerators... - Page 30 Clean and dry gasket Latch out of adjustment Adjust latch per instructions in The door is difficult to “Troubleshooting” open Vacuum lock Wait a short period after door has been closed to re-open. Jewett Pass-Thru Blood Bank Refrigerators Thermo Scientific...
- Page 31 (314357H01) and install the light cover (314755H02) on the not turn on bulb. Door switch is stuck Check door switch at top of refrigerator opening to make sure it slides in and out when door is opened. Thermo Scientific Jewett Pass-Thru Blood Bank Refrigerators...
- Page 32 Troubleshooting Jewett Pass-Thru Blood Bank Refrigerators Thermo Scientific...
-
Page 33: Chapter 10 Accessories
Shelf set for BBR25D models (5 shelves) 7476TA Shelf set for BBR55D models (10 shelves) 7465TA Additional shelf 7480TA Right-hand hinge door, non controller side for model BBR25D 7477TA Left-hand hinge door, controller side for model BBR25D Thermo Scientific Jewett Pass-Thru Blood Bank Refrigerators... - Page 34 Accessories Jewett Pass-Thru Blood Bank Refrigerators Thermo Scientific...
- Page 35 EU Member State, and this product should be disposed of or recycled through them. Further information on our compliance with these Directives, the recyclers in your country, and information on Thermo Scientific products which may assist the detection of substances subject to the RoHS Directive are available at www.thermo.com/ WEEE Konformittät.
- Page 36 Jewett Pass-Thru Blood Bank Refrigerators Thermo Scientific...
