EasyCoder F4-Series—Printhead Replacement
Step-by-Step Instructions, cont.
9
10

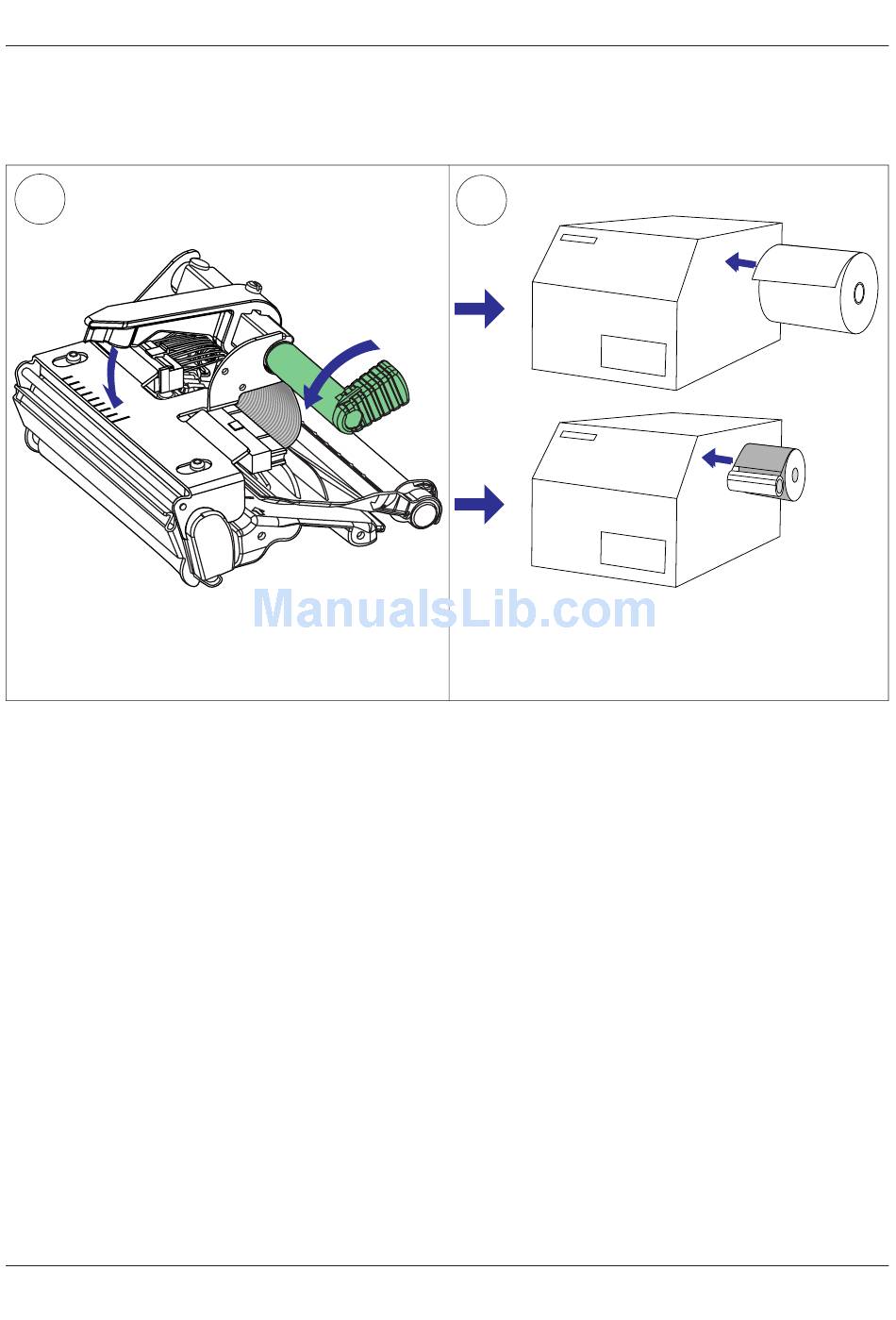

Turn the printhead lift lever counterclockwise so the
Load a new supply of media and ribbon, as described
magnet engages the printhead bracket.
in the User's Guide
5
Printhead for EasyCoder F4 & F4 Compact Industrial, Installation Instructions
