EasyCoder F4-Series—Printhead Replacement
Step-by-Step Instructions, cont.
5

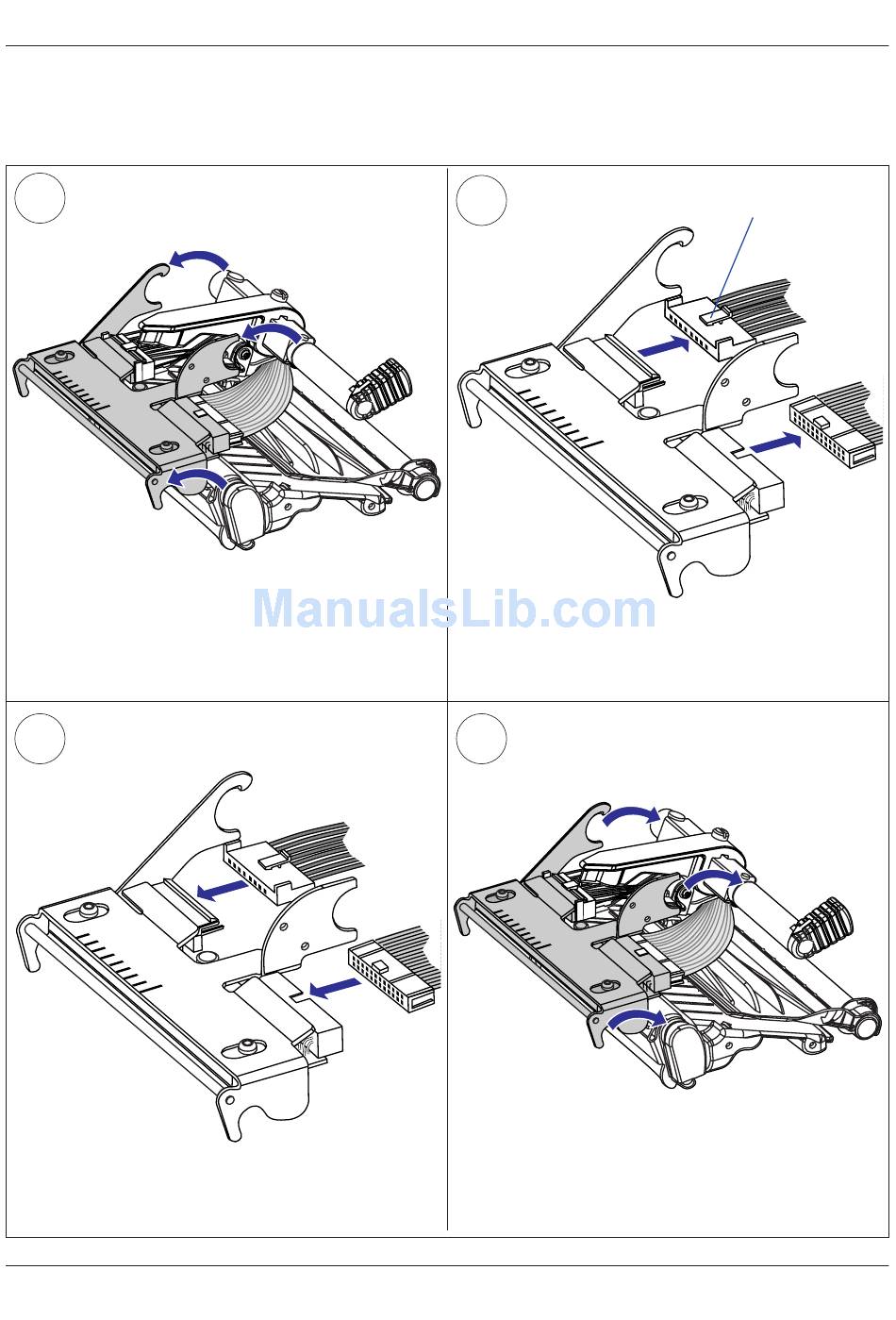

Disconnect the printhead bracket from the print
mechanism as indicated by the arrows and pull out the
printhead as far as the cables allow.
7
Connect the two cables to the replacement printhead.
4
Printhead for EasyCoder F4 & F4 Compact Industrial, Installation Instructions
6
Disconnect the cables from the printhead. Note the
snap-lock on the inner connector. Pull at the connec-
tors–not at the cables!
8
Put back the printhead in reverse order and check that
the printhead cables run freely.
Snap-Lock
