Hooker Furniture 5149-75003 Assembly Instruction

Double ped base & double ped top w/2-18in leaves

Item#: 5149-75003 Double Ped Base

Item#: 5149-75004 Double Ped Top w/2-18in Leaves

***Please make sure you have all parts indicated below prior to assembly.

This unit is heavy and can best be assembled with the help of two or more people.

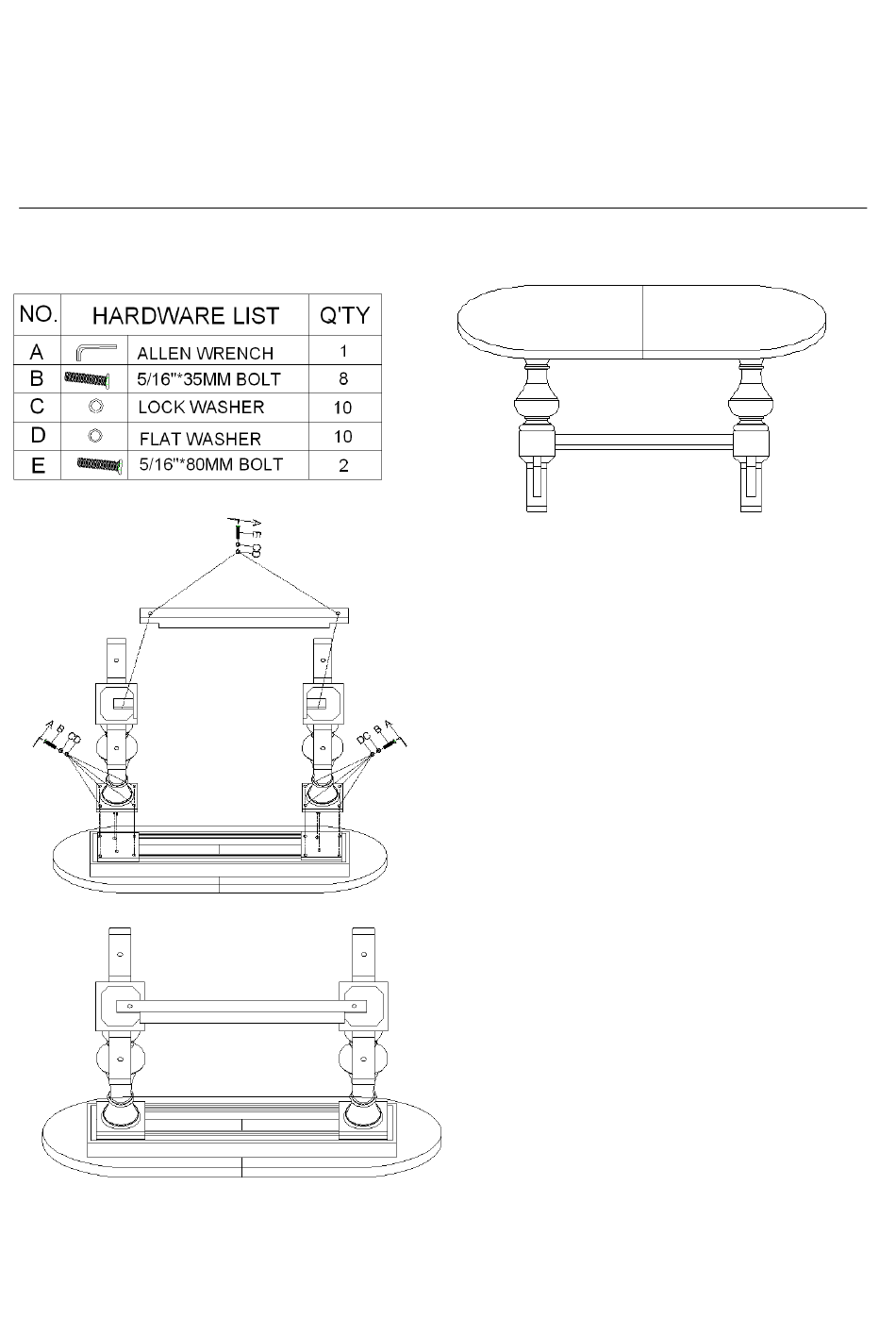

Diagram 1

ASSEMBLY INSTRUCTION

1. Place the top upside down on a

soft surface to prevent from

scratching.

2. Align locator dowels at mounting

bridge of pedestal to the holes of

top panel.

3. Screw each pedestal and top by

using 4 bolts (B), 4 lock washers

with allen wrench (A) in clockwise

direction. (see diagram 1).

4. Place the rail onto pedestals;

insert bolt (E) with lock washer

on rail of each side and

corresponding holes in pedestal;

Secure the bolt (E) in clockwise

direction with allen wrench (A)

tightly (see diagram 1).

5. Turn the table upright.

1/2

Table of Contents

Need help?

Do you have a question about the 5149-75003 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION Item#: 5149-75003 Double Ped Base Item#: 5149-75004 Double Ped Top w/2-18in Leaves ***Please make sure you have all parts indicated below prior to assembly. This unit is heavy and can best be assembled with the help of two or more people.
Page 2 Instruction for the leaves: 1. There is a latch on the bottom of the top, turn off the latch (see diagram 2). Diagram 2 2. Pull out the table top as the arrow direction (see diagram 3). 3. Place the leaves on it and push them together.

5149-75004
