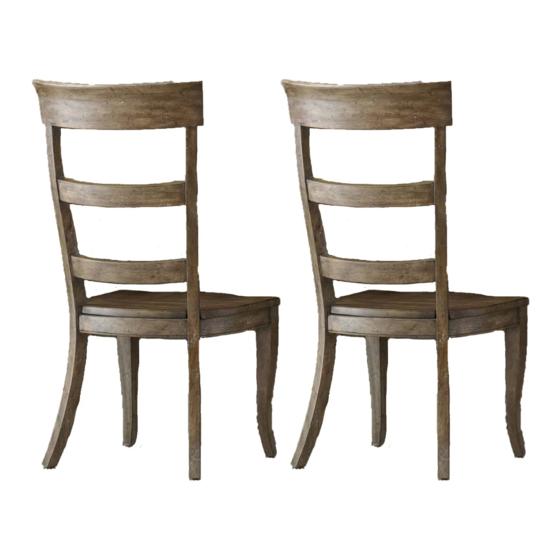

Item#: 5107-75310 Ladderback Side Chair-2 per carton

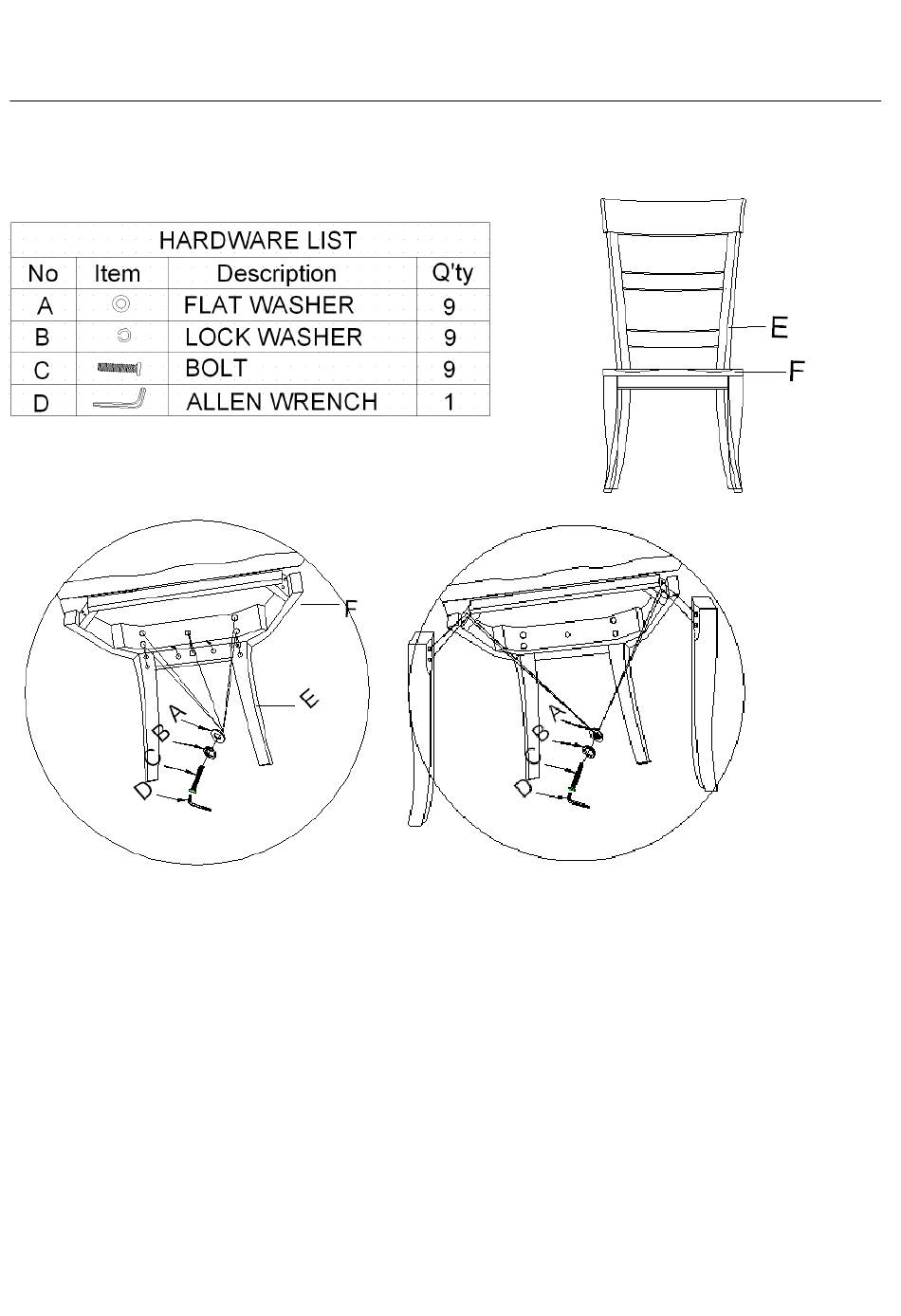

** Please make sure you have all parts indicated below prior to assembly.
Diagram 1
Assembly Steps:
There are two K/D chairs in one box. Please follow numbers on one chair and letters on another chair during
assembly.
1. Place back frame(E) on a clean surface.
2. Attach back rail of the seat frame (F) to back frame (E) by aligning the holes in center of seat frame and
back frame, then secure with bolt (C) ,lock washer(B) ,flat washer(A).
3. Tighten rear corner blocks of seat frame (F) to back legs of frame (E) using bolts (C), lock washers(B) ,flat
washers(C). (See diagram 1)
4. Assemble front corner blocks of seat frame (F) with front legs using bolts (C), lock washers (B), flat
washers (A). Hand tighten these bolts. (See diagram 2)
5. After all bolts are attaching and hand tightened, turn the chair upright.
6. Level the chair following the "chair leveling instruction" as below.
ASSEMBLY INSTRUCTION
Diagram 2
1/2
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 5107-75310
Summary of Contents for Hooker Furniture 5107-75310
- Page 1 ASSEMBLY INSTRUCTION Item#: 5107-75310 Ladderback Side Chair-2 per carton ** Please make sure you have all parts indicated below prior to assembly. Diagram 1 Diagram 2 Assembly Steps: There are two K/D chairs in one box. Please follow numbers on one chair and letters on another chair during assembly.
- Page 2 7. Make sure the chair is level and then tighten all bolts completely by using the allen wrench(D). PLEASE READ THESE INSTRUCTIONS PRIOR TO ASSEMBLING THE CHAIRS CHAIR LEVELING INSTRUCTION SUPPLEMENT Chair leveling procedures: To make the assembly process easy and efficient, please read the entire instruction sheet prior to assembling of the chair.
