** Please make sure you have all parts indicated below prior to assembly.

ASSEMBLY STEPS:

1. Locate side posts (A) and center rail(B) in a soft place to prevent them from scratching.
2. Insert full thread bolt (H) into holes of ends of center rail (B). Attach side post(A) to center
rail(B) through full thread bolt (H). Use nut (E), curved washer (G) and tighten them with
spanner wrench (F). See diagram 1.
3. Repeat step 2 to well attach both side posts (A) to center rail (B).
ASSEMBLY INSTRUCTION

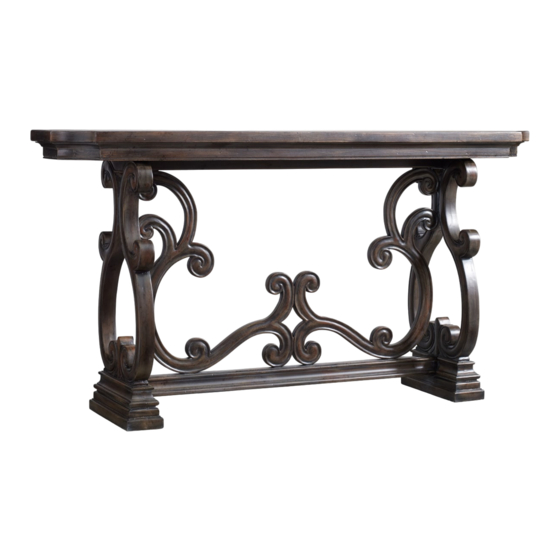

Item#:5165-85001 DAVALLE SCROLL CONSOLE
1/2

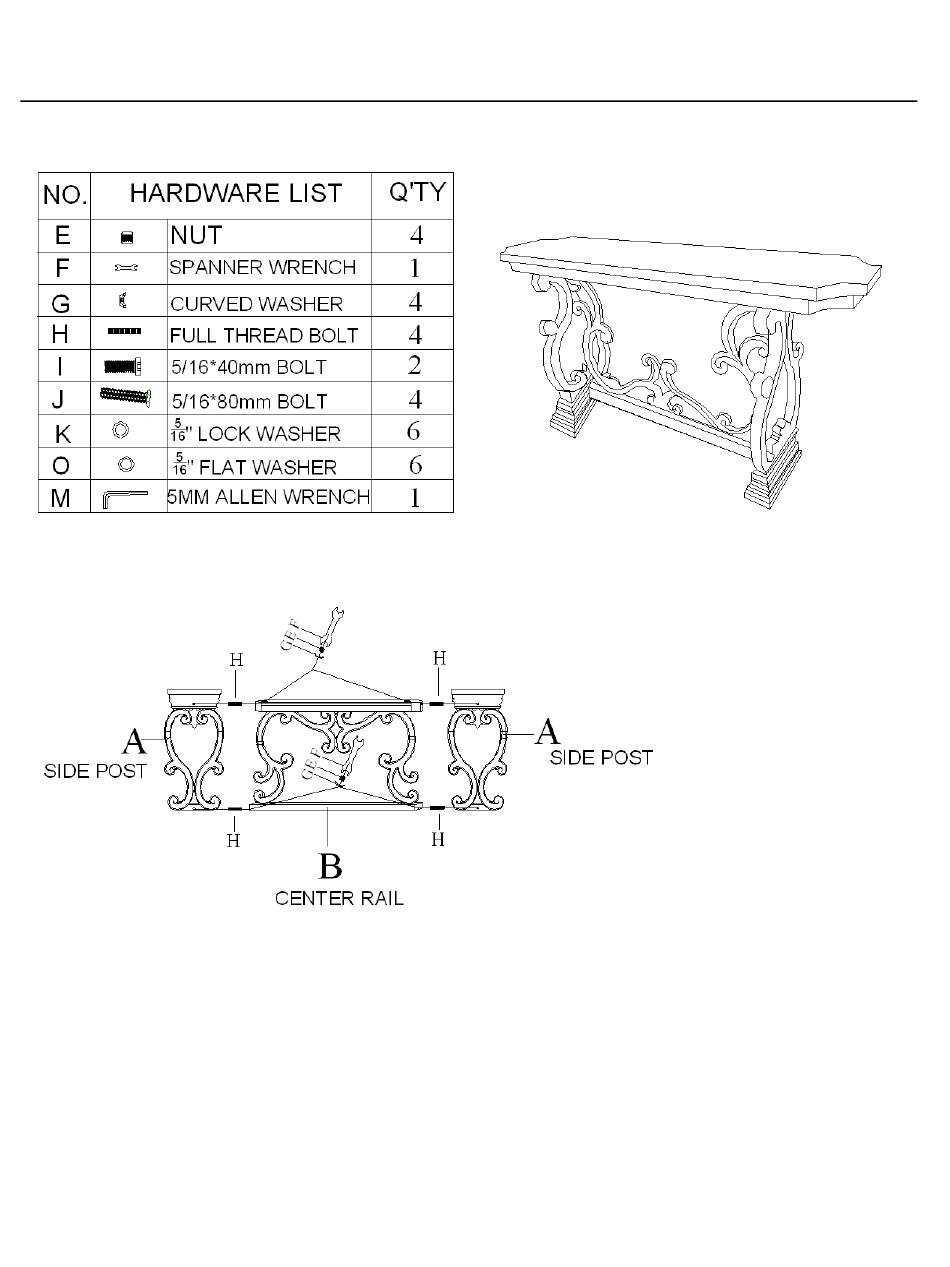

DIAGRAM 1
