EasyCoder 401/501 – Installation Instruction
PAPER CUTTER KIT, cont'd.
Step-by-Step Instructions,
cont'd.

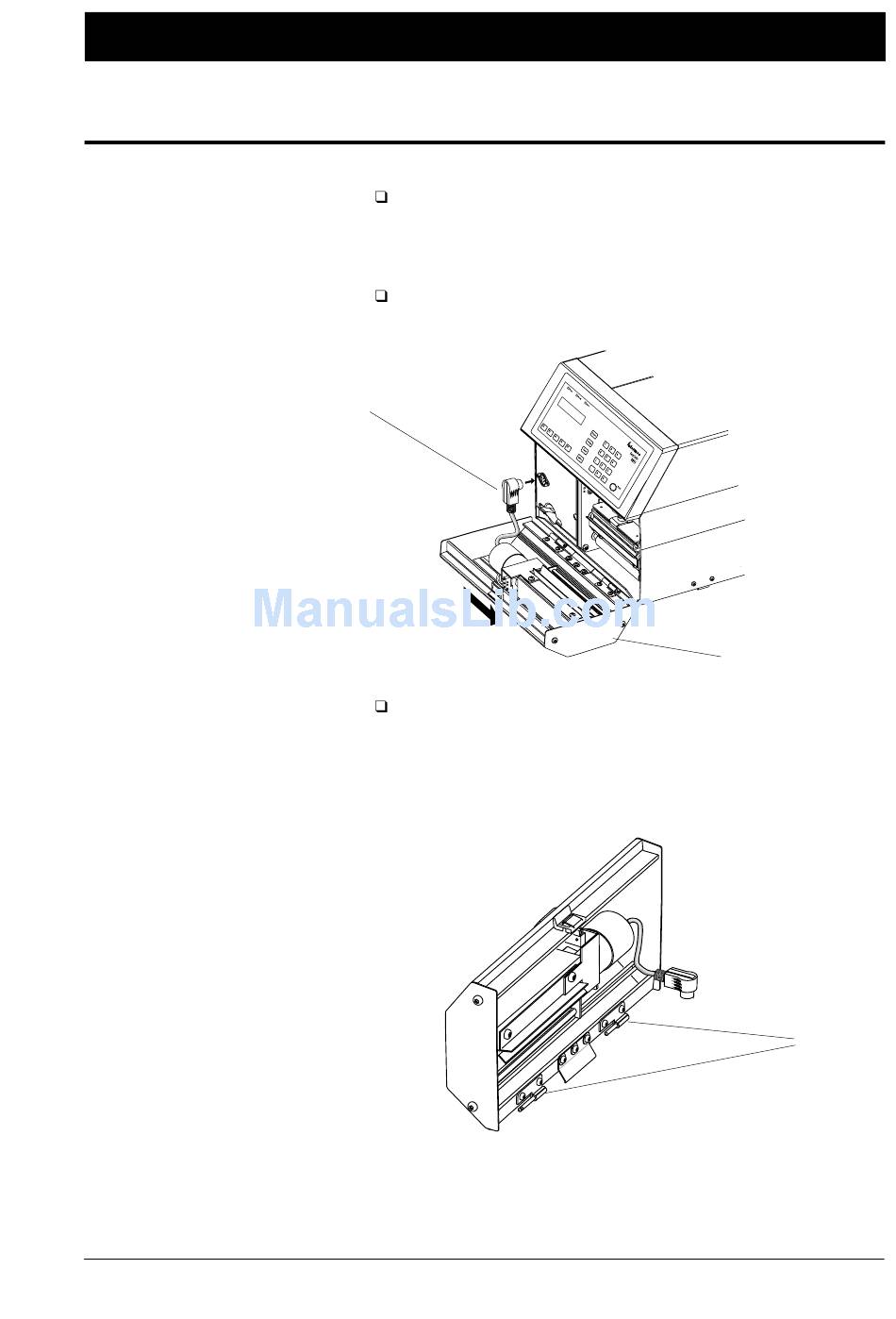

Fit the cutter unit to the vacant hinges from which you removed
the front hatch. Make sure that the locking plate snaps into the
groove of the right-hand hinge and that the angled plate at the
bottom of the cutter is inserted under the printer's bottom plate.
Fit the cable from the cutter unit into the DIN connector above
the memory card slot on the printer's front.
DIN Connector
Tilt the cutter unit upwards until it locks into place. If the cutter
does not lock properly, the hinges of the cutter unit may need to
be adjusted using a #T10 Torx screwdriver.
Cutter Unit
Hinges
Continued!
