Summary of Contents for STONEX S700A

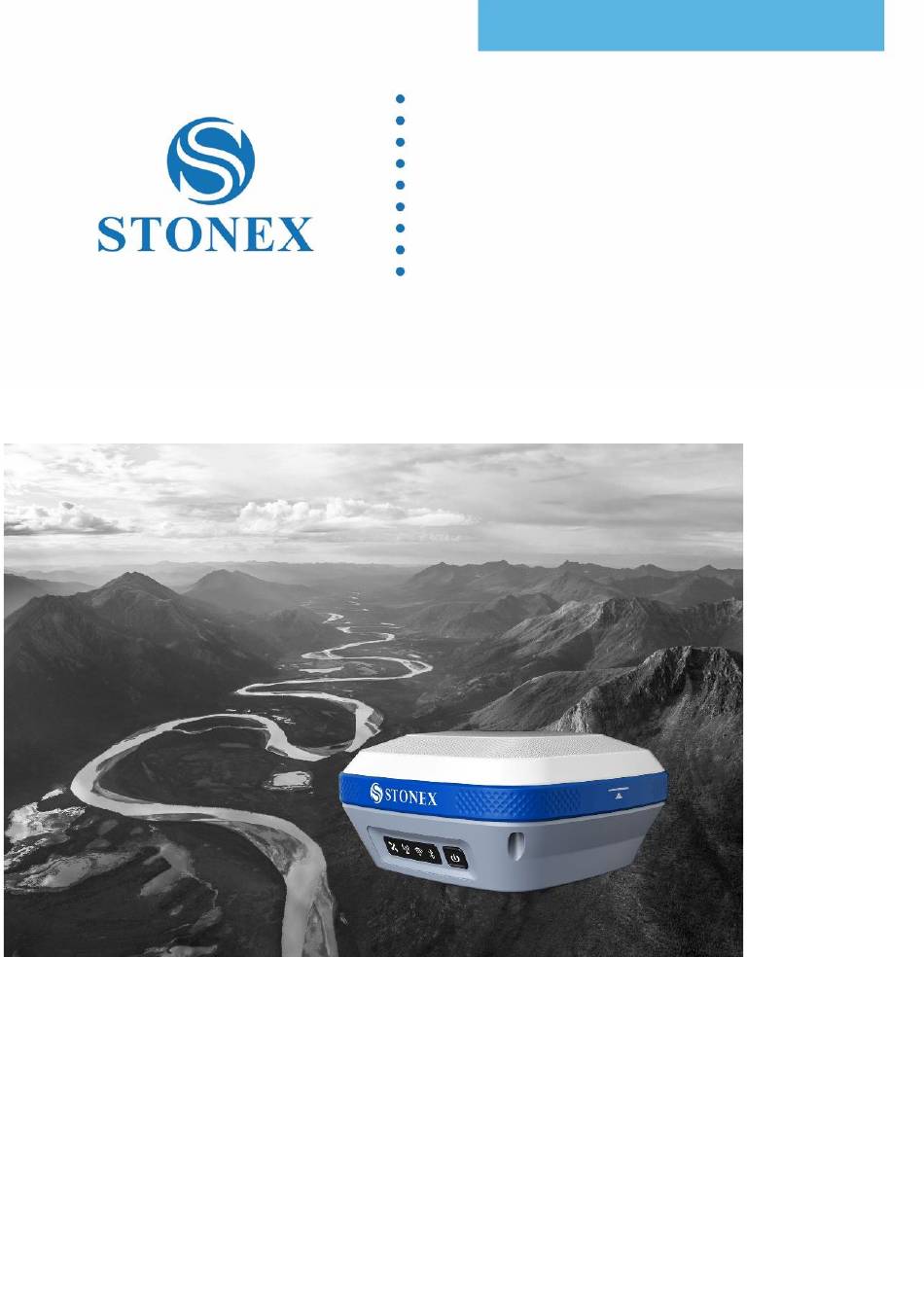

- Page 1 STONEX S700A GNSS Receiver User Manual www.stonex.it Jan 2020 - Ver.1 - Rev.0...
-
Page 2: Table Of Contents
4.1 Carrying case ......................14 4.2 Standard accessories ....................14 5. Technical specification ....................... 15 Appendix 1: Copyrights, warranty and environmental recycling ..........18 Copyrights and trademarks ..................18 Release Notice ........................18 Stonex S700A GNSS Receiver – User Manual... - Page 3 For countries outside European Union (EU) ............22 Appendix 2: Safety Recommendations ..................23 Warnings and Cautions ....................23 Wireless Module Approval ................... 23 Instrument Approval ....................... 24 Bluetooth/WiFi radio Module ..................24 Rechargeable Lithium-ion batteries ................. 25 Stonex S700A GNSS Receiver – User Manual...
-
Page 4: Introduction
Introduction This document is user guide for S700A and it is intended to introduce how to use the receiver correctly. S700A GNSS receiver is a multiple-frequency receiver and designed for GNSS surveying applications. It is available as a base station, or as a standalone... - Page 5 Key Features: • Rugged housing • Support full constellation satellites • 4G LTE and Bluetooth / WLAN datalink support • Easy configuration from Web UI and remote server. • Intelligent connection • IP67 Stonex S700A GNSS Receiver – User Manual...
-

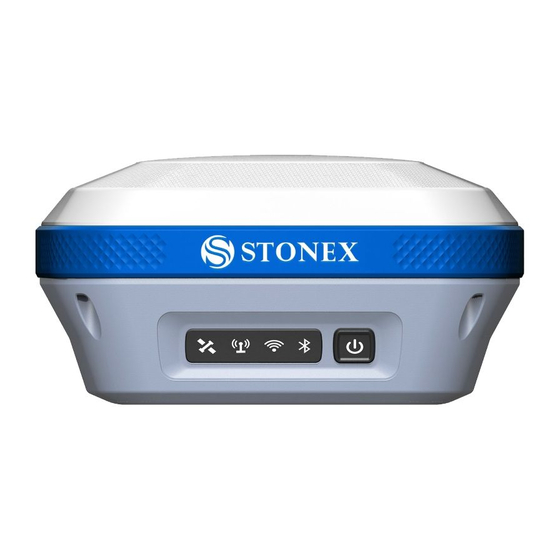

Page 6: Receiver Appearance
Flashing green and red alternately: GNSS board abnormal 2. Datalink indicator Green: datalink setting succeeds Flashing green: data in normal transmission Red: In static mode Flashing red: in static mode, flashing red according to static sampling interval Stonex S700A GNSS Receiver – User Manual... - Page 7 Switch on/off the receiver; short press to broadcast current operation mode and status. Green: The power supply is enough Flashing green (1s): power in 10%-20% Flashing red (1s): power＜10% Flashing red (3s): The device is charging Stonex S700A GNSS Receiver – User Manual...
-
Page 8: Bottom View
TNC, external UHF antenna connector 2. SIM card slot Nano SIM card interface 3. 5-pin LEMO Connect the external power supply and external radio 4. Type-C Power supply and data transfer *UHF not available for S700A Stonex S700A GNSS Receiver – User Manual... -
Page 9: Web Interface
2. Web Interface S700A receiver has Web UI functionality. By getting access to its internal hotspot, you can easily manage it on the Web UI. As long as you have a smart phone, PC or handheld with WIFI functionality, you can easily connect to the S700A receiver to view status, download data and configure the receiver. -
Page 10: Working Mode
If you select Network, then besides set the data type, site ID, base position and record raw data, the most important is you can input APN account, APN user and password, connect mode, caster address and port. Stonex S700A GNSS Receiver – User Manual... -
Page 11: Download
WEB UI. The detailed steps are shown as followed. In management page, you can see “registration”. Input register code and click submit, and then registration is done. After registration, you can check the expiration time of current registration in the page. Stonex S700A GNSS Receiver – User Manual... -
Page 12: Set The Language
2.5 Set the language As you can see, there is language button in the right-up side of WebUI. And the S700A has 7 languages to set up. They are Chinese, English, Korean, Portuguese, Russian, Turkish and Japanese. Stonex S700A GNSS Receiver – User Manual... -
Page 13: Basic Operation
Self-check functionality is to check whether every module works normally. When S700A receiver has indicators off or module doesn’t work normally, you can use self-check to inspect the receiver. S700A self-check consists of six parts, namely GNSS, network, WIFI and Bluetooth. The self-check results will be voice broadcasted in the process. -
Page 14: Insert Sim Card
3.5 Insert SIM card If you need to use the SIM card, you should insert the SIM card before you power on the S700A; open the card cover first, then insert the SIM card as the notes in card cover. -
Page 15: Accessories
Power adaptor (model: KSA-45P-45W) with 4 plugs (US, UK, AU and EU). Charging cable Type C -Type C charging cable (model: CTMM-1.5) 1.5 meter long. Data cable Type C -USB cable (model: CUTM-1.5) 1.5 meter long. Stonex S700A GNSS Receiver – User Manual... -
Page 16: Technical Specification
<0.6 m RMS Vertical <1.2 m RMS REAL TIME KINEMATIC (< 30 Km) – NETWORK SURVEYING Fixed RTK Horizontal 8 mm + 1 ppm RMS Fixed RTK Vertical 15 mm + 2 ppm RMS Stonex S700A GNSS Receiver – User Manual... - Page 17 9 to 28 V DC external power input with over-voltage Voltage protection (5 pins Lemo) Working time Up to 10 hours Charge time 4 Hours PHYSICAL SPECIFICATION Dimensions 140 mm × 140 mm × 71 mm Weight 1.10 Kg Stonex S700A GNSS Receiver – User Manual...
- Page 18 3.Network RTK precision depends on the network performances and are referenced to the closest physical base station. 4.Varies with the operating environment and with electromagnetic pollution. 5. Optional, it can be activated via firmware. Stonex S700A GNSS Receiver – User Manual...
-
Page 19: Appendix 1: Copyrights, Warranty And Environmental Recycling
Bluetooth is a trademark owned by Bluetooth SIG, Inc. and licensed to Trimble Navigation Limited. All other trademarks are the property of their respective owners. Release Notice This is the January 2020 release of the STONEX S700A GNSS new model ® receiver user guide. -
Page 20: Shipping Policy
(30) days only if STONEX ® Europe recognizes that the defects of the instrument are not caused by human factors or no obvious damage to its surface is visible. STONEX ® warrants any new replaced parts or products are warranted to be free from... -
Page 21: Firmware/Software Warranty
Firmware/Software will operate to meet your requirements. Stonex will forward the Software/Firmware Fix to the dealer or customer. Firmware/software Fix means an error correction or other update created to fix a previous firmware version that substantially doesn’t conform to the... -
Page 22: Instruments
GNSS receiver: S700A GNSS Series Accessories Accessories and specific parts warranty For accessories provided by Stonex with the instruments S700A GNSS the following general warranty time is for reference: Power Adaptor, cables: 2 years. Stonex S700A GNSS Receiver – User Manual... -
Page 23: Environmental Recycling
· For countries outside European Union (EU) The treatment, recycling, collection and disposal of electric and electronic devices may vary in accordance with the laws in force in the Country in question. Stonex S700A GNSS Receiver – User Manual... -
Page 24: Appendix 2: Safety Recommendations
Before using this instrument, check if authorization to operate the receiver is required in your country. It is the responsibility of the importer to verify if it is necessary a certification or license for the equipment in the country of use. Stonex S700A GNSS Receiver – User Manual... -
Page 25: Instrument Approval
“safety standards and recommendations “published by Scientific organizations. Stonex srl therefore believes the internal wireless radio is safe for use by end users. The level of energy emitted is far less than the electromagnetic energy emitted by wireless devices such as UMTS phones. However, the use of Bluetooth/WiFi may be restricted in some special situations or place, like aircraft , hospital ,etc. -
Page 26: Rechargeable Lithium-Ion Batteries
– Do not use or store the battery in very hot ambient. – Do not drop or puncture the battery. – Do not open the battery and do not put in short-circuit its electrical contacts. Stonex S700A GNSS Receiver – User Manual... - Page 27 STONEX® SRL Viale dell’Industria, 53 - 20037 Paderno Dugnano (MI) Tel: +390278619201 Stonex S700A GNSS Receiver – User Manual www.stonex.it | info@stonex.it...
