Item ref: 152.745UK
3D Animation Laser
User Manual
Please read through this manual thoroughly before use, any damage
Caused by misuse of product will not be covered by warranty.

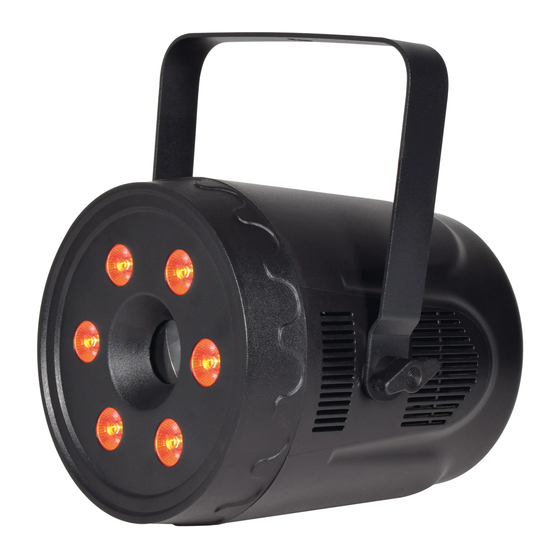

Thank you for choosing the QTX Mesmerizer 3D animation Laser With a stunning set of 440 dynamic and
static patterns available including jaw-dropping 3D laser animations, colourful RGBW patterns and wall
washes, the Mesmerizer is sure to pack a punch at any party, show or event. 4 control modes including
auto, sound to light and DMX512 make this compact and lightweight unit perfect for any occasion large or
small.
In the box:
Your Mesmerizer should arrive with you in a single carton in good condition. The carton should contain
1x main unit with bracket, 1x UK IEC mains lead, 1x laser key and 1x user guide.
Warning:
To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event
of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then
check the unit before continuing use.
Please do not open cover, contains high voltage. This
product is not serviceable or repairable by the end user.
Please refer to qualified personnel for service and repair.
