- Page 1 INSTRUCTION MANUAL LOW PRESSURE CALIBRATION PUMP MODEL PGL...
- Page 3 For more detailed technical data about the Instruction manual for ® Beamex PGL Low Pressure Calibration Pump, please contact the manufacturer. © Copyright 2013 - 2017 BEAMEX OY AB Ristisuonraitti 10...
-
Page 5: Table Of Contents
CONTENTS DESCRIPTION ..................... 1 Standard Accessories ..................1 Optional Accessories ..................1 Connections and Parts ..................2 Connection Diagram ................... 3 OPERATION ....................3 Positive Pressure Calibration ................3 Negative Pressure (Vacuum) Calibration ............4 Keep in Mind ....................... 5 TROUBLESHOOTING/MAINTENANCE ............. -
Page 7: Description

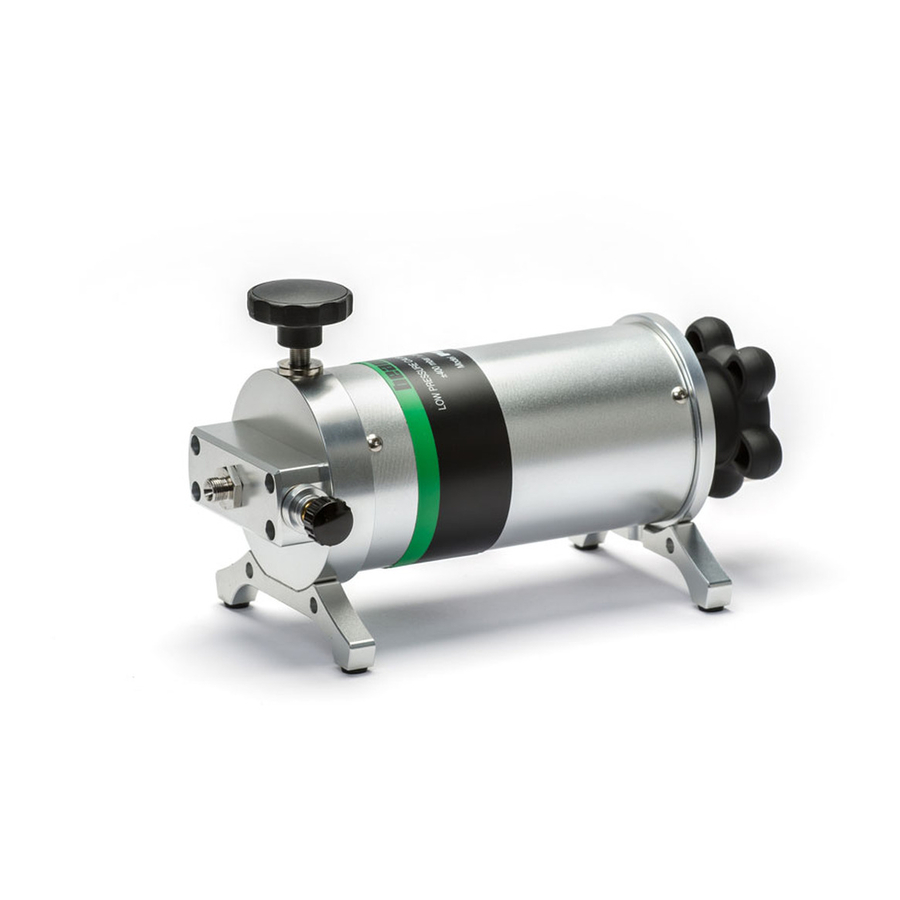

DESCRIPTION The PGL Low Pressure Calibration Pump is designed to manually generate up to 400 mbar (6 psi) for quick and accurate calibration of pressure gauges, transducers and other pressure measurement instruments. Standard Accessories The standard accessories are as follows: ... -
Page 8: Connections And Parts
Connections and Parts Fine Adjust handwheel (clockwise to increase pressure). Cylinder Coarse Adjust handwheel (clockwise to increase pressure). Pressure connector. Default: G 1/8" male with 60° internal cone. Release valve (clockwise to close/ counterclockwise to open). -
Page 9: Connection Diagram
Connect the calibrator (pressure module, reference) and the instrument to be calibrated (Device Under Test, DUT) to Pressure connector using a Beamex Pressure Measurement Hose or similar. Close Release valve and check that the measurement system is not leaking. -
Page 10: Negative Pressure (Vacuum) Calibration
12. Connect the calibrator (pressure module, reference) and the instrument to be calibrated (Device Under Test, DUT) to Pressure connector using a Beamex Pressure Measurement Hose or similar. 13. Close Release valve and check that the measurement system is not leaking. -
Page 11: Keep In Mind
The PGL has certain range in the volume adjustment and the effect of that to the pressure change in the system depends directly on the total volume of the system: ... -
Page 12: Troubleshooting/Maintenance
TROUBLESHOOTING/MAINTENANCE Hard to Adjust Using Coarse Adjust Valve CAUSES SOLUTIONS Release valve is not closed. Close the release valve Replace the o-ring. The Coarse Adjust Valve's o-ring is broken or loose. Hard to Fine Adjust Using Fine Adjust Valve CAUSES SOLUTIONS The connections are not tightened. -
Page 13: Leak Tests
If you want to test the pump and the connected measurement system, do as follows: If you do not already have a calibration measurement system connected to the pump, connect an accurate enough pressure measurement instrument, e.g. a Beamex 400mC pressure module to the pump. -
Page 14: Specifications
O / 15×10 Adjusting sensitivity Output connectors G 1/8" male with 60° internal cone, for Beamex pressure measurement hose, pre-installed. G 6/4" nipple delivered as an optional connector to replace the one meant for Beamex pressure measurement hose... -
Page 15: Warnings
If the pump is accidentally dropped, it may be damaged. Do not use the pump before it is inspected at Beamex’s service. Do not use PGL in any other way than as described in this manual. Any safety problems or damages caused by incorrect operation, are beyond... - Page 16 BEAMEX OY AB Beamex Inc Ristisuonraitti 10 2152 NW Parkway FIN-68600 PIETARSAARI Suite A FINLAND Marietta, GA 30067 Phone +358 - 10 5505000 U.S.A. +358 - 10 5505404 Phone 800 888-9892, E-mail sales@beamex.com +1-770-951-1927 service@beamex.com +1-770-951-1928 Internet http://www.beamex.com E-mail beamex.inc@beamex.com...
