HYDRAULIC CALIBRATION PUMP
MODEL PGHH
operating instructions
version 1.0a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PGHH and is the answer not in the manual?

Questions and answers

Related Manuals for BEAMEX PGHH

Summary of Contents for BEAMEX PGHH

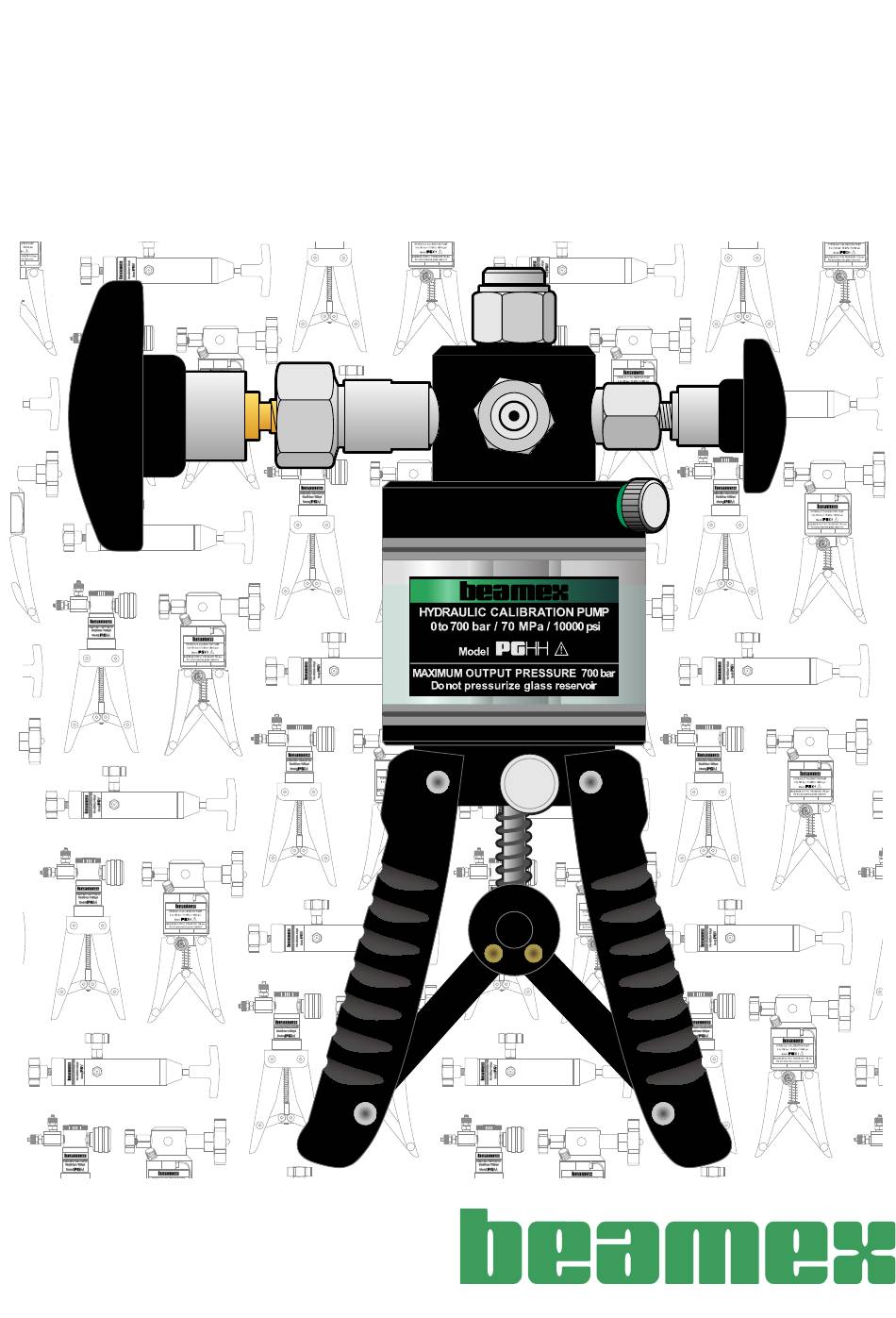

  • Page 1 HYDRAULIC CALIBRATION PUMP MODEL PGHH operating instructions version 1.0a...

  • Page 2: Table Of Contents

    Table of contents General information Typographic conventions 1 Introduction 1.1 Description 1.2 Standard delivery 1.3 Optional accessories 2 Operation 2.1 Operating instructions 2.2 Reservoir (fluid level) 3 Maintenance and troubleshooting 3.1 Periodic maintenance 3.2 Troubleshooting 3.3 Available spare parts 3.4 Disposal 4 Specifications 4.1 The Pump Unit 4.2 The Pressure Measurement Hose...

  • Page 3: General Information

    The above notwithstanding, we can assume no responsibility for any errors in this manual or their eventual consequences. We reserve rights to make modifications to this manual without any further notice. For more detailed technical data about the Instruction manual for PGHH Hydraulic Pressure Pump, please contact the manufacturer. Typographic conventions Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

  • Page 4: Introduction

    1 Introduction 1.1 Description The PGHH hydraulic calibration pump is designed to manually generate up to 700 bar (70 MPa, 10 000 psi) for quick and accurate calibration of pressure gauges, transducers and other pressure measurement instruments. Read the instruction manual carefully prior to setting up and using the pressure pump.

  • Page 5: Standard Delivery

    The standard delivery includes: • Carrying case; • G 1/4 (1/4’’ BSP) plug to blank off the connection for an optional Beamex EXT External Pressure Measurement module; • G 1/4 (1/4” BSP) adapter (on the top) for connecting the optional Beamex EXT External Pressure Measurement module;...

  • Page 6: Operation

    The pump is tested using water. Small amounts of water may still be inside the pump when you receive it. Flush the pump with the pressure media to be used before connecting any instruments to it. If you use water as the pressure medium, make sure that you store PGHH in temperatures above the freezing point.
  • Page 7 The maximum total volume of the measurement system may not exceed 200 cc (12.2 cubic inches). The volume inside PGHH is less than 1 ml (on the pressurized side, not the reservoir, with maximum volume in the fine control). The volume of the unpressurized Pressure Measurement Hose is 3.5 ml...
  • Page 8 Ensure that all connections are made correctly and that the hose and the connectors are undamaged. Do not use faulty hoses or connectors. Use only the measuring hose provided by Beamex. Observe the effect of the operational conditions to the maximum pressure allowed in the hose. The specifications can be found in chapter 4.
  • Page 9 PGHH but not the instrument to be calibrated. Pump until drops of water/oil come out of the end of the hose. Then connect the instrument and raise pressure as described in the previous paragraph.
  • Page 10 In that case, adjust the pressure back to required value using the fine control. The principal tool for releasing pressure from the measurement system is PGHH’s fine control. Use of PGHH’s vent valve is also possible, but requires caution in order to avoid pressure shocks to the measurement system.

  • Page 11: Reservoir (Fluid Level)

    Do not overfill the glass reservoir. The glass reservoir does not withstand high pressure but it is not pressurized when PGHH is used correctly. Do not add fluid to the glass reservoir when increasing pressure. The reservoir may overflow and explode when the pressure is released and all the excess fluid returns from system to the reservoir.

  • Page 12: Maintenance And Troubleshooting

    5. G 1/4 male / 1215 Special male connector 6. *O-ring 8 x 2 7. *O-ring 3.17 x 1.78 8. G 3/8’’ male - G 1/4’’ female adapter 9. O-ring * included in Maintenance kit Figure 4. PGHH Maintenance kit seals and connectors.
  • Page 13 If the pump is accidentally dropped, it may be damaged. Do not use the pump before it is inspected at Beamex’s service. Please include information on used pressure media when sending the pump for service. Always depressurize PGHH when it is left on its own.

  • Page 14: Troubleshooting

    3.2 Troubleshooting If the pump assembly fails to indicate a pressure increase after considerable pumping action of the handle, the following should be examined: • Check to assure that the connections between the pump, the hose end and the attached instrument(s) are tight and repeat operating instructions items 6 and 7 •...

  • Page 15: Specifications

    Glass reservoir for pressure media • G ¼’’ male / 1215 Special male connector (for Pressure Measurement Hose) Output connectors • G ¼” female connector (for Beamex External Pressure Measurement Module, XPM or EXT) 4.2 The Pressure Measurement Hose 3 ft 3.3” Length...

  • Page 16: Storage

    4.3 Storage Permissible conditions at the place of storage -10...50°C Storage temperature Humidity 35...85% relative humidity After each usage, the instrument has to be emptied and let dry out (drain screw at the bottom of the reservoir). Store the hydraulic calibration pump in its original packaging in a location that fulfills conditions listed below.
