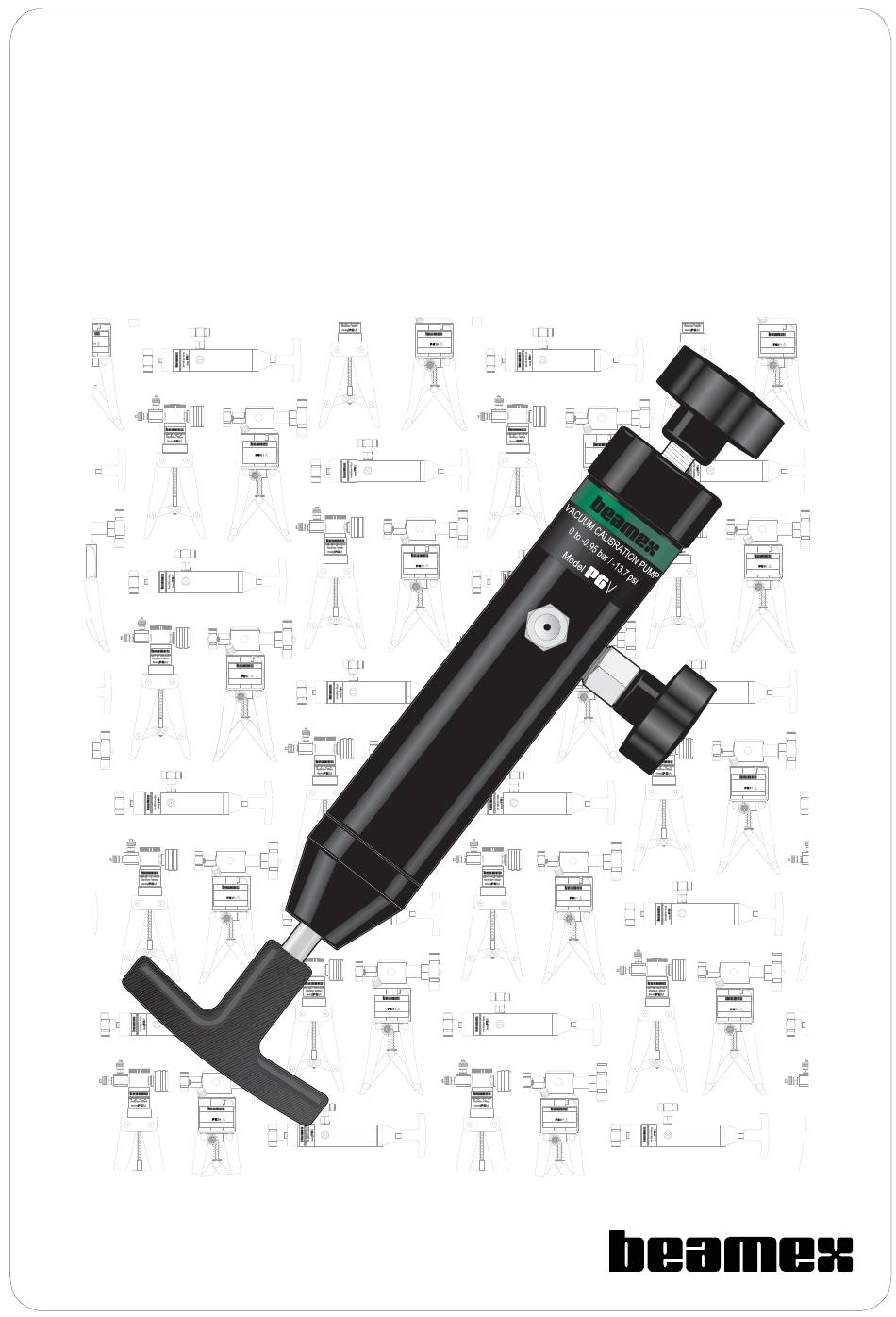

  • Page 1 INSTRUCTION MANUAL VACUUM CALIBRATION PUMP MODEL PGV A T I O N P U M P H Y D R A U L I C C A L I B R A T I O N P U M P...
  • Page 2 Do not use faulty hoses or connectors. Do not connect the pump to a pressure source. Use only the measuring hose provided by Beamex. Use only the connectors provided with the pump. Impurities from wrong materials may plug the pump.

  • Page 3: Table Of Contents

    CONTENTS 1 SPECIFICATIONS ................1 2 DESCRIPTION................... 2 2.1 Standard Accessories ..............2 2.2 Optional Accessories ..............2 3 OPERATION ..................3 4 TROUBLESHOOTING/MAINTENANCE ........... 4 4.1 Seal Replacement ................ 4 4.1.1 Main Piston Seal ............... 4 4.1.2 Fine Control Seal ..............4 4.1.3 Release Valve Seal ..............

  • Page 4: Description

    2 DESCRIPTION The PGV vacuum calibration pump is designed to manually generate up to -0.95 bar (-13.7 psi) of vacuum pressure for quick and accurate calibration of vacuum pressure instruments. 2.1 Standard Accessories The standard accessories are as follows: ∗ Service seal kit for PGV.

  • Page 5: Operation

    5. To release the vacuum open the release valve slightly. The release valve need not be opened fully in order to release the vacuum. The release valve shaft will loosen from the PGV body if the valve is rotated too much.

  • Page 6: Troubleshooting/Maintenance

    Do not scratch the cylinder surfaces when opening PGV. 4.1.1 Main Piston Seal Unscrew the conical end of PGV. If necessary, use the opening tool provided. Pull out the main piston and remove the old piston seal. Fit the new piston seal.

  • Page 7: Release Valve Seal

    4.1.3 Release Valve Seal Remove the release valve shaft from the PGV body by rotating the release valve counterclockwise. Fit new piston seal (o-ring). Reassemble. Main piston seal Release valve seal Fine control seal NOTE! Using PGV with seals not supplied by Beamex is at your own risk.
  • Page 8 © Copyright 1998, 2004, 2007, 2008 OY BEAMEX AB Beamex, Inc. 2270 Northwest Parkway, Suite 165 Ristisuonraitti 10 Marietta, GA 30067 FIN-68600 PIETARSAARI U.S.A. FINLAND Phone: 800 888-9892, Phone +358 - 10 - 5505000 +1-770-951-1927 +358 - 10 - 5505404...
