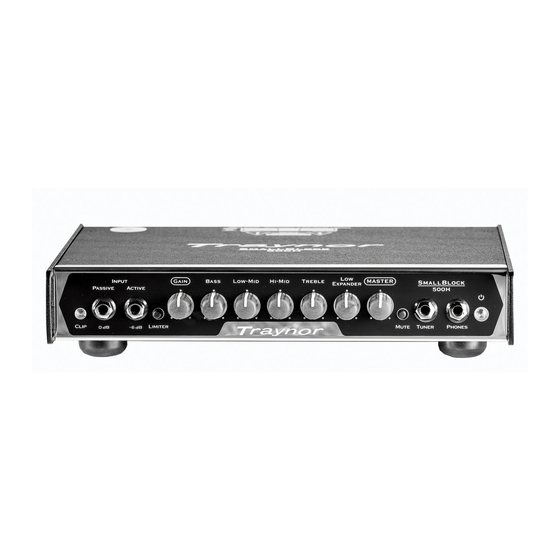

- Page 1 Input Gain Bass Low-Mid Hi-Mid Treble MASTER SmallBlock Expander Passive Active 500H Clip Limiter Mute Tuner Phones Small Block 500H B A S S G U I T A R A M P L I F I E R SB500H...
-
Page 2: Important Safety Instructions - English / Français
Important Safety Instructions - English / Français I MP OR TA N T S A FE T Y I N ST R U C TI O N S This lightning flash with arrowhead symbol, within an The exclamation point within an equilatereal triangle is intended to alert the user to the presence equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous of important operating and maintenance (servicing) instructions in the literature accompanying voltage”... -
Page 3: Table Of Contents
1. Commutateur Et Témoin De Mise En Marche ..... 4 Small Block Bass Amplifier ..........1 2. Entrées 0dB/Passive, -6dB/Active et Clip ....4 SB500H ................1 3. Bouton de Limiteur ............. 5 The Extras, They’re All Here ..........1 4. -
Page 4: Small Block Bass Amplifier
Phones Small Block Bass Amplifier SB500H Thank you for choosing the Small Block 500H super-lightweight power amplifier. You’ll be happy to discover that this bass guitar amplifier has the ability to sound “right” with a minimum amount of knob twirling. This amp delivers great tone making it ideal for any performance. -
Page 5: Gain Control
4. Gain Control The Small Block Gain control allows you to set the level of the signal before it’s sent to the tone controls. This con- trols the tonal ‘sensitivity’ or ‘definition’ of the amplifier. Higher Gain settings will give more ‘growl’ to your bass. 5. -
Page 6: Speakon™ Speaker Output Jacks
15. Speakon™ Speaker Output Jacks The amp’s minimum load is 4 ohms overall therefore you can connect a total of one 4 ohm speaker cabinet to the Speakon™ jack output or two 8 ohm speaker cabinets in parallel (by daisy chaining from one cabinet to the other). Note: The 500 watt rated power output (@ 4 ohms) is measured with the amp’s Gain and tone controls adjusted for minimal distortion. -
Page 7: Amplificateur Pour Guitare Basse Small Block
Input Gain Bass Low-Mid Hi-Mid Treble MASTER SmallBlock Expander Passive Active 500H Clip Limiter Mute Tuner Phones Amplificateur Pour Guitare Basse Small Block Small Block 500H. Merci d’avoir choisi l’amplificateur de puissance super-léger Small Block. Vous découvrirez que cet amplificateur de basse vous offrira le «... -
Page 8: Bouton De Limiteur
3. Bouton de Limiteur Lorsque vous appuyez sur le bouton limiteur, le limiteur du Small Block sera activé afin d’empêche l’écrêtage au niveau de l’amplificateur de puissance. 4. Commande de Gain La commande de gain du Small Block vous permet de régler le niveau du signal avant qu’il ne soit acheminé aux commandes de tonalité. -
Page 9: Sélecteur Lift/Gnd
14. Sélecteur Lift/GND Le sélecteur de Sorite Ligne Lift/Gnd peut aider à prévenir les bruits de bourdonnement indésirables lorsque vous acheminez le signal audio à un mixeur externe ou autre appareil. En position Lift, le bouton déconnecte la broche 1 de la prise XLR pour aider à réduire le bruit de bourdonnement causé par une boucle de masse lors de l’acheminement des signaux directement à... -
Page 10: Specifications - English / Français
Specifications - English / Français Specifications SB500H Model: bass amp Type: 4 ohms Cabinet Impedance (ohms): Power @ min. impedance (watts): 500 watts Minimum Impedance (ohms): 4 ohms 600 watts Burst Power - 2 cycle: Input Channels: Channel 1 - inputs:... -
Page 12: Block Diagram
Block Diagram... -
Page 13: Warranty - English / Français
Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date, simply return it to your Traynor dealer with original proof of purchase and it will be repaired free of charge. -
Page 14: Rear Page
WORLD HEADQUARTERS CANADA U.S.A. Yorkville Sound Limited Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W 3Y8 CANADA 14305, USA Voice: 905-837-8481 Voice: 716-297-2920 Fax: 905-837-8746 Fax: 716-297-3689 Manual-Owners-SMALLBLOCK500H-00-1v5 • September 2, 2022...
