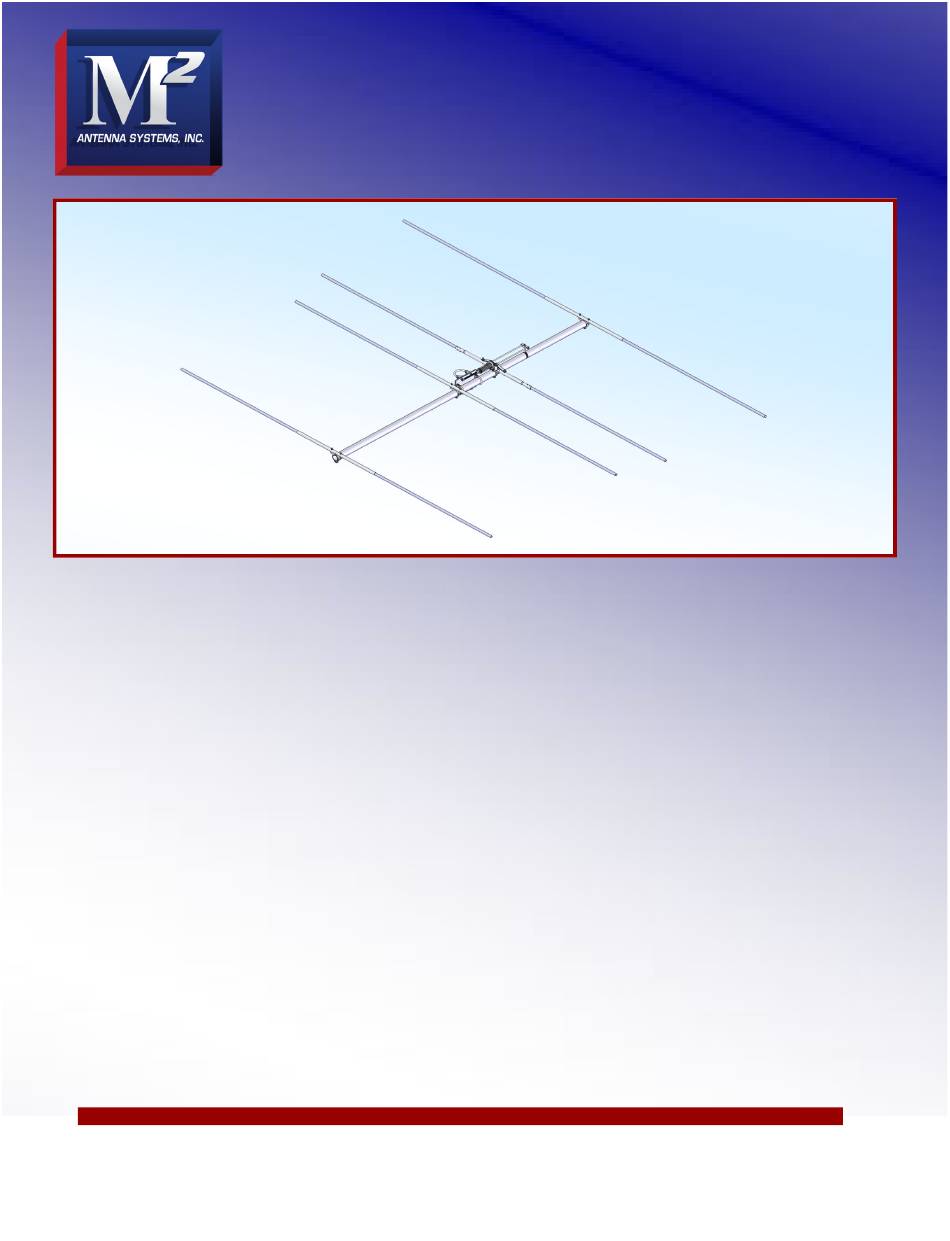

M2 Antenna Systems 48.5-4 Assembly Manual

Advertisement

Quick Links

SPECIFICATIONS:
Model ......................................... 48.5-4
Frequency Range ....................... 48.3 to 48.7 MHz
Gain ............................................ 10.39 dBi
Front to back .............................. 24 dB Typical
Feed type ................................... Hair Pin Match
Feed Impedance. ....................... 50 Ohms Unbalanced
Maximum VSWR ........................ 1.5:1 Typical
Input Connector .......................... "N' Connector
FEATURES:
The 48.5-4 has been computer optimized from the ground up for gain and pattern covering 48.3-48.7 MHz. Originally
designed for Meteor Scatter and monitoring systems. The custom 1:1 Fairite balun and low loss hairpin match help
maintain high efficiency. Element ring clamps and other important components are CNC machined for maximum strength
and electrical integrity. All antenna hardware is stainless steel and the U-bolts for mounting are Zinc plated.
M2 antenna Systems, Inc., has well over 35 designs for Meteor Scatter applications covering from 39 MHz to 50 MHz. If
you have a specific requirement, please contact us for more details.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 48.5-4
*Subtract 2.14 from dBi for dBd / FS = Free Space
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2022 M2 Antenna Systems Incorporated
Power Handling ......................... 1.5 kW
Boom Length / Dia ..................... 151" / 2"
Element Length / Dia. ................ 143" / 7/8" - 1/2"
Turning Radius: ......................... Call
Stacking Distance ...................... Call
Mast Size ................................... 2" to 3 " Nom.
Wind area / Survival .................. 2.1 Sq. Ft. / 100 MPH
Weight / Ship Wt. ....................... 40 Lbs. / 45 Lbs.
08/30/22
Rev.01

Advertisement

loading
Need help?

Need help?

Do you have a question about the 48.5-4 and is the answer not in the manual?

Questions and answers

Summary of Contents for M2 Antenna Systems 48.5-4

  • Page 1 All antenna hardware is stainless steel and the U-bolts for mounting are Zinc plated. M2 antenna Systems, Inc., has well over 35 designs for Meteor Scatter applications covering from 39 MHz to 50 MHz. If you have a specific requirement, please contact us for more details.
  • Page 2 48.5-4 ASSEMBLY MANUAL NOTE: A cup of zinc paste (PENETROX, NOALOX, OR equivalent) has been provided to enhance the quality of all the electrical joints in this antenna. Apply a thin coat wherever two pieces of aluminum come in contact.
  • Page 3 48.5-4 DIMENSION SHEET 2" RING CLAMP & 1/4-20 X 1" BOLT & LOCKNUT /4 -20 X 1-3/4" ELEMENT SPACING BOLT & LOCKNUT 26.50" 0.0" 3/4 X 36" 8-32 X 1" 7/8 X 15" SCREW & CENTER LOCKNUT SLEEVE 26.688" SHORTING BAR, 8-32 SCREW &LOCKNUT...
  • Page 4 48.5-4 ASSEMBLY MANUAL 10. Mount the BOOM TO MAST PLATE as shown on the DIMENSION SHEET and secure with two 2” U-bolts, cradles, stainless lockwashers and nuts. Two 2” U-Bolts and hardware are supplied for attaching the antenna to the mast.
  • Page 5 48.5-4 PARTS & HARDWARE DESCRIPTION BOOM SECTION, 2” X .058 X 84” SOE ........... 1 BOOM SECTION, 2” X .058 X 71” STR ........... 1 ELEMENT SECTION, 3/4” X .049 X 36” SOE .......... 8 ELEMENT TIP, 1/2” X .049 X SEE DIMENSION SHEET ......8 ELEMENT SPLICE, 7/8”...
