SPECIFICATIONS:
Model ......................................... 406-6SX
Frequency Range ....................... 401 To 412 MHz
*Gain .......................................... 11 dBi
Front to back .............................. 19 dB Typical
Beamwidth ............................... E=55° H=65°
Feed type ................................... Gamma Match
Feed Impedance. ....................... 50 Ohms Unbalanced
Maximum VSWR ........................ 1.5:1
Input Connector .......................... SO-239
FEATURES:

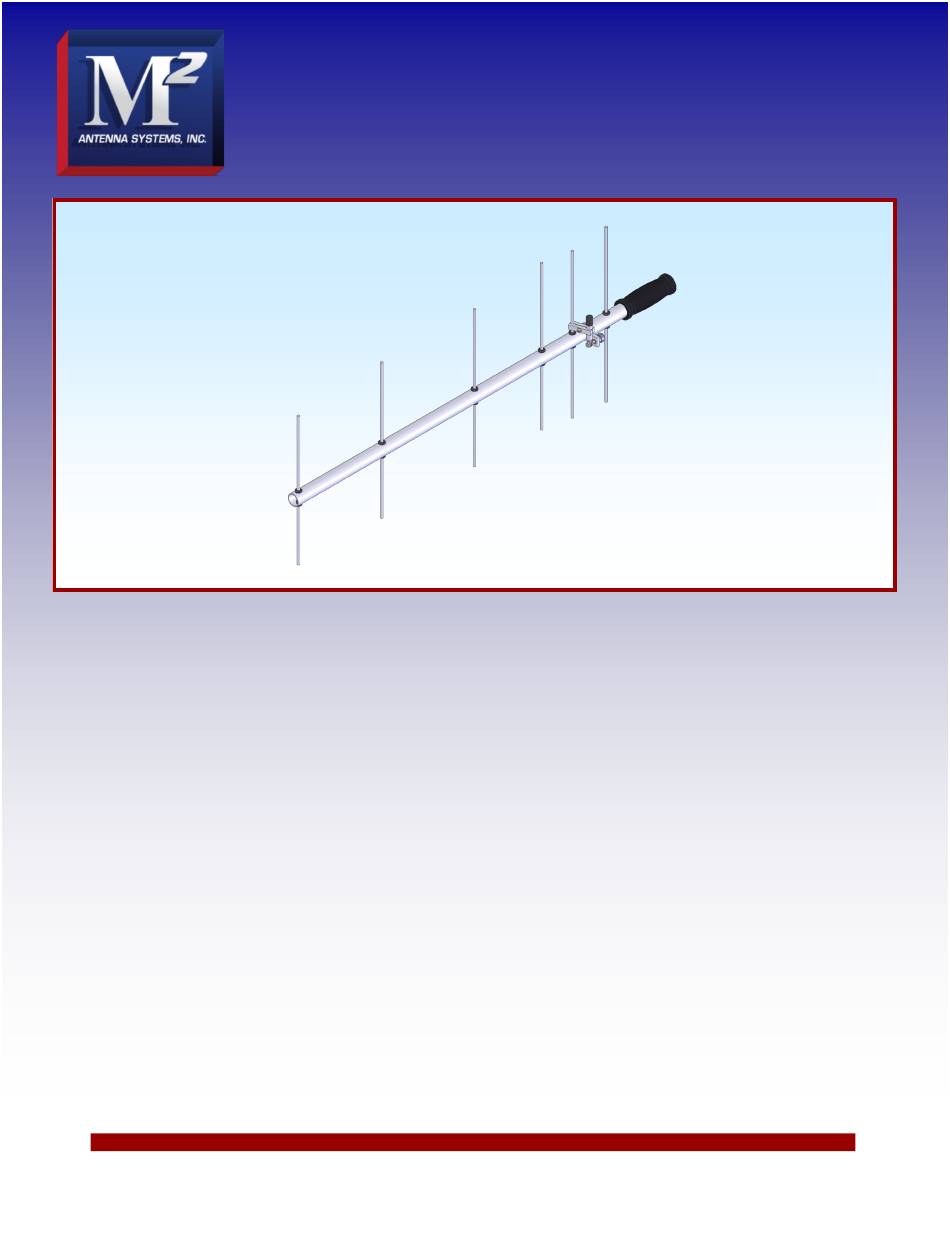

The 406-6SX a low cost, medium performance antenna and a great choice for a rugged hand held operation
without compromising quality. A comfortable rear mount handle and all stainless hardware, give you the confidence of
quality construction you have come to expect from M2. Built with size and portability in mind, this antenna is great for
hand held tracking applications. The antenna breaks down to no more than 36" long, making it a natural for portable oper-
ations.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 406-6SX
*Subtract 2.14 from dBi for dBd
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2015 M2 Antenna Systems Incorporated
Power Handling .......................... 500 Watts
Boom Length / Dia ...................... 36' / 1"
Maximum Element Length .......... 14-1/2"
Turning Radius: .......................... 34-1/8"
Stacking Distance ....................... 27" High & 30" Wide
Mast Size .................................... 1-1/2" to 2" Nom.
Wind area / Survival ................... 0.3 Sq. Ft. / 75 MPH
Weight / Ship Wt. ........................ 3 Lbs. / 4 Lbs.
04/6/15
Rev.00
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for M2 Antenna Systems 406-6SX
Summary of Contents for M2 Antenna Systems 406-6SX
- Page 1 *Subtract 2.14 from dBi for dBd FEATURES: The 406-6SX a low cost, medium performance antenna and a great choice for a rugged hand held operation without compromising quality. A comfortable rear mount handle and all stainless hardware, give you the confidence of quality construction you have come to expect from M2.
- Page 2 406-6SX ASSEMBLY MANUAL Tools handy for assembly process: Phillips head screwdriver, 5/16”,11/32” spin-tight or socket, 7/16” end wrenches / sockets, measuring tape. 1. This antenna uses a one-piece boom that will be rear mounted. 2. Lay out the elements by length and position as shown on the DIMENSION sheet. Start with the reflector (longest) element and push on a black button insulator to about 1/2”...
- Page 3 406-6SX ASSEMBLY MANUAL 11. Install the two halves of the Shorting Bar onto the Gamma Tube and the driven element below. Refer to the DIMENSION sheet for proper location of the shorting bar. Tighten the shorting bar in place using a single 8-32 x 7/8” screw and lock nut.
- Page 4 406-6SX DIMENSION SHEET...
- Page 5 GENERIC GAMA MATCH ASSEMBLY DETAIL...
- Page 6 406-6SX PARTS & HARDWARE DESCRIPTION………………………………………………….QTY BOOM SECTION, 1 X .058 X 36” ........... 1 ELEMENTS, 3/16 ROD X SEE DIM SHEET ......6 GAMMA CONNECTOR BLOCK ASSEMBLY ......1 GAMMA ROD, 3/16 X 2.0 ALUM ROD ........1 GAMMA TUBE, 3/8 X .058 X 1.750 ALUM TUBE ....1 GAMMA INSULATOR, .1/4 X .031 X 1.625 TEFLON TUBE ...
