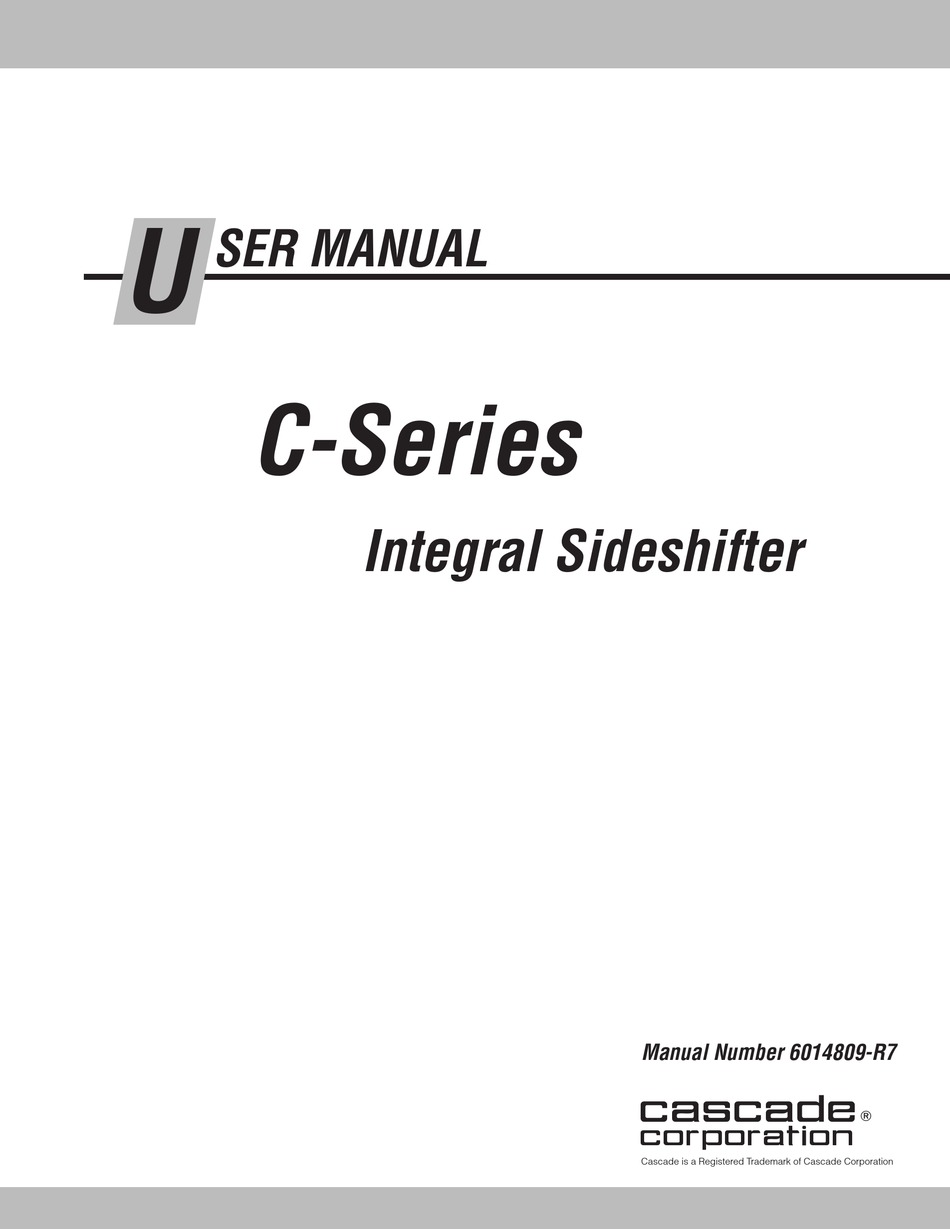

U
SER MANUAL
C-Series
Integral Sideshifter
Manual Number 6014809-R7
cascade
corporation
Cascade is a Registered Trademark of Cascade Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C Series and is the answer not in the manual?

Questions and answers

Summary of Contents for cascade corporation C Series

  • Page 1 Installation Instructions Operator Guide SER MANUAL C-Series Integral Sideshifter Manual Number 6014809-R7 cascade  corporation Cascade is a Registered Trademark of Cascade Corporation...
  • Page 2: Table Of Contents

    ONTENTS Page INTRODUCTION Special Definitions OPERATION Safety Rules Industrial Lift Trucks Handling Loads Integral Sideshifter Operation Safe Operation and Maintenance OSHA Regulations INSTALLATION Truck Requirements Recommended Hydraulic Supply Installation Procedure PERIODIC MAINTENANCE Daily 1000-Hour 2000-Hour PARTS Recommended Spare Parts PUBLICATIONS 6014809-R7...
  • Page 3: Introduction

    NTRODUCTION This User Manual is for Cascade Integral Sideshifters. WARNING: Rated capacity of the truck/ Contents include an Operator's Guide, Installation attachment combination is a responsibility Instructions, Periodic Maintenance and Parts. of the original truck manufacturer and may NOTE: Specifications are shown in both US and (Metric) be less than shown on the attachment units.
  • Page 4: Safety Rules

    PERATION Safety Rules – Industrial Lift Trucks No riders No reaching through mast No standing under load GA0047.eps Tilt With load Raise 3 in. (8 cm) No load Traveling RAMPS Motor off, park, lower load empty No parking on ramp No turning on ramp Watch clearances GA0048.eps...
  • Page 5: Handling Loads

    PERATION Safety Rules – Handling Loads Top of load Limit sideshifting should not extend with raised load. above backrest. CAUTION: Do not put side loads on forks. LOAD WEIGHT Center load prior to traveling. Limit truck movement FP0174.eps with raised load. Load weight must not exceed combined truck/ attachment capacity (see truck nameplate).
  • Page 6: Safe Operation And Maintenance

    AFE OPERATION AND MAINTENANCE OSHA Regulations – Trucks and Attachments (Specific Regulations from OSHA 1910.178) WARNING: The safe operation and maintenance of industrial trucks is regulated by Occupational Safety and Health (OSHA) regulations 1910.178 and American National Standards Institute (ANSI) Safety Standard (10) A load backrest extension shall be used whenever necessary for Powered Industrial Trucks, ANSI B56.1.
  • Page 7: Installation

    NSTALLATION Truck Requirements Truck Relief Setting 2000 psi (140 bar) Recommended 3500 psi (240 bar) Maximum Truck Flow Volume ➀ Min. Recommended Max. ➁ ➂ 1 GPM 3 GPM 2 GPM 35C, 55C, 70C (7.5 L/min.) (4 L/min.) (12 L/min.) Cascade Integral Sideshifters are compatible with SAE 10W ➀...
  • Page 8: Installation Procedure

    NSTALLATION Installation Procedure IMPORTANT: Integral attachment installation is an OEM or dealer responsibility. Some of the following steps may or may not be required, but are shown for reference. Refer to the appropriate service manual for service and repair procedures. Integral Sideshifter carriage should be installed in mast per OEM specifications and...
  • Page 9 NSTALLATION Install forks Install backrest Use pallet or blocks as necessary to raise forks to installation height. Keep feet clear of forks when installing. WARNING: If the fork locking pin is not fully engaged, the fork could become disengaged from the carriage.
  • Page 10: Periodic Maintenance

    ERIODIC MAINTENANCE Daily WARNING: After completing any service procedure, always test the Integral Check items shown each day. Report problems to your Sideshifter through five complete cycles. supervisor. See Service Manual for troubleshooting, First test with no load, then test with a maintenance and repair procedures.
  • Page 11: Parts

    Ordering Information Parts, Service and Operator Guide literature is sold through the Cascade Parts Depot. All dealerships with an open account, please indicate quantity desired and purchase order number. All others please enclose a check payable to Cascade Corporation. FAX: Mail:...
  • Page 12 Pte. Ltd. Rocklea, QLD 4107 East Tamaki, Auckland 18 Tuas South Street 5 Australia New Zealand Singapore 637796 Tel: 1-800-227-223 Tel: +64-9-273-9136 Tel: +65-6795-7555 Fax: +65-6863-1368 Fax: +61 7 3373-7333 Fax: +64-9-273-9137 © Cascade Corporation 2012 09-2012 Part Number 6014809-R7...
