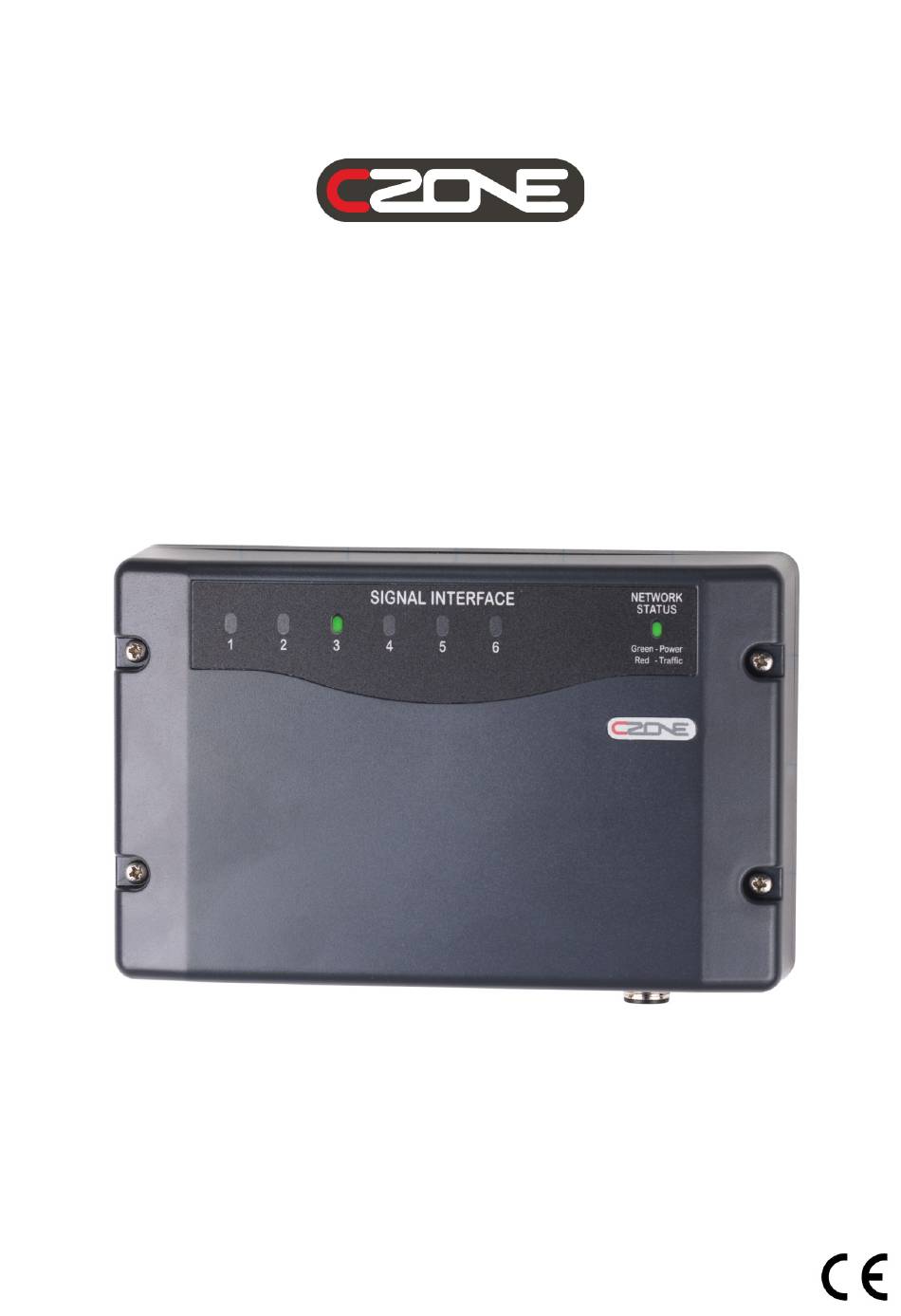

- Page 1 Signal Interface (SI) User & Installation Manual V2.0...
-
Page 2: Table Of Contents
EN / CZone® Signal Interface (SI) User & Installation Manual 1 Contents GENERAL INFORMATION Use of this manual Guarantee Specifications Quality Validity Of This Manual Liability Changes To The Signal Interface (SI) SAFETY AND INSTALLATION PRECAUTIONS Warnings and Symbols Use For Intended Purpose... -
Page 3: General Information
CZONE SIGNAL INTERFACE NO SEALS & CONN 80-911-0014-00 It is obligatory that every person who works on or with the Signal Interface is completely familiar with the contents of this manual, and that he/she carefully follows the instructions contained herein. ... -
Page 4: Safety And Installation Precautions
• Connection and protection must be done in accordance with local standards Do not work on the Signal Interface or system if it is still connected to a power source. Only allow changes • in your electrical system to be carried out by qualified electricians ... -
Page 5: Overview

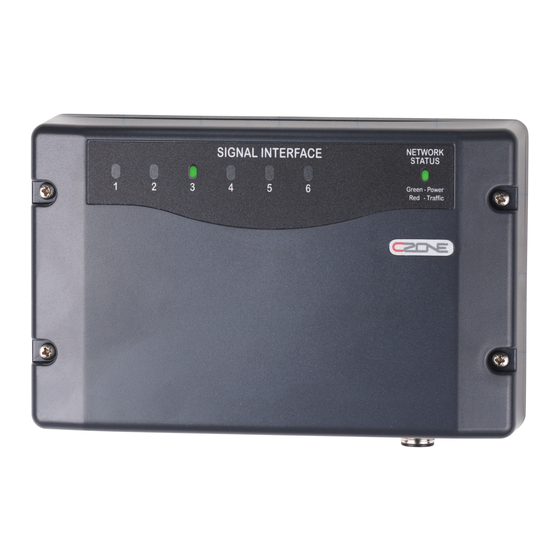

EN / CZone® Signal Interface (SI) User & Installation Manual 4 OVERVIEW DESCRIPTION The Signal Interface (SI) connects the CZone system to your external sensors, alarms and switching devices. The SI allows intelligent, automated operation of circuits depending on the state of the input. FEATURES •... -
Page 6: Installation
EN / CZone® Signal Interface (SI) User & Installation Manual 5 Installation GUIDELINES • Ensure the modules are installed vertically with the cables exiting downwards, this ensures IPX5 rating is retained. All seals and cable glands must be fitted including blanking plugs inserted in any unused positions. -
Page 7: Dipswitch
7. Refer to the CZone Configuration Tool Instructions for details on how to configure and calibrate the Signal Interface inputs. 8. Write configuration file to the Signal Interface and the rest of the CZone modules on the system. 9. Test all inputs and outputs for configured functionality. -
Page 8: Led Flash Codes
EN / CZone® Signal Interface (SI) User & Installation Manual 6 LED Flash Codes Figure 5. LED Flash Codes 1. Circuit Status LED’s Colour Description Green Solid ON Valid Signal Input 1x Red Flash Channel Not Configured 2x Red Flash... -
Page 9: Labelling
EN / CZone® Signal Interface (SI) User & Installation Manual 7 Labelling CONNECTIONS/LED FLASH CODE LABEL This label is located on the inside of the front lid of the unit, it shows the LED codes and electrical connections to the unit: Figure 6. -
Page 10: System Wiring Example
EN / CZone® Signal Interface (SI) User & Installation Manual 8 System Wiring Example Figure 8. Wiring Diagram... -
Page 11: Dimensions
EN / CZone® Signal Interface (SI) User & Installation Manual 9 Dimensions Figure 9. Dimensions... -
Page 12: Ordering Information
EN / CZone® Signal Interface (SI) User & Installation Manual 10 Ordering Information MODULE Description Part number CZONE SIGNAL INTERFACE c/w SEALS & CONN 80-911-0013-00 CZONE SIGNAL INTERFACE NO SEALS & CONN 80-911-0014-00 ACESSORIES AND SPARES Description Part number SEAL CABLE GLAND for ZONE SI BK SILICON... -
Page 13: Declaration Of Conformity
EN / CZone® Signal Interface (SI) User & Installation Manual 12 Declaration Of Conformity...
