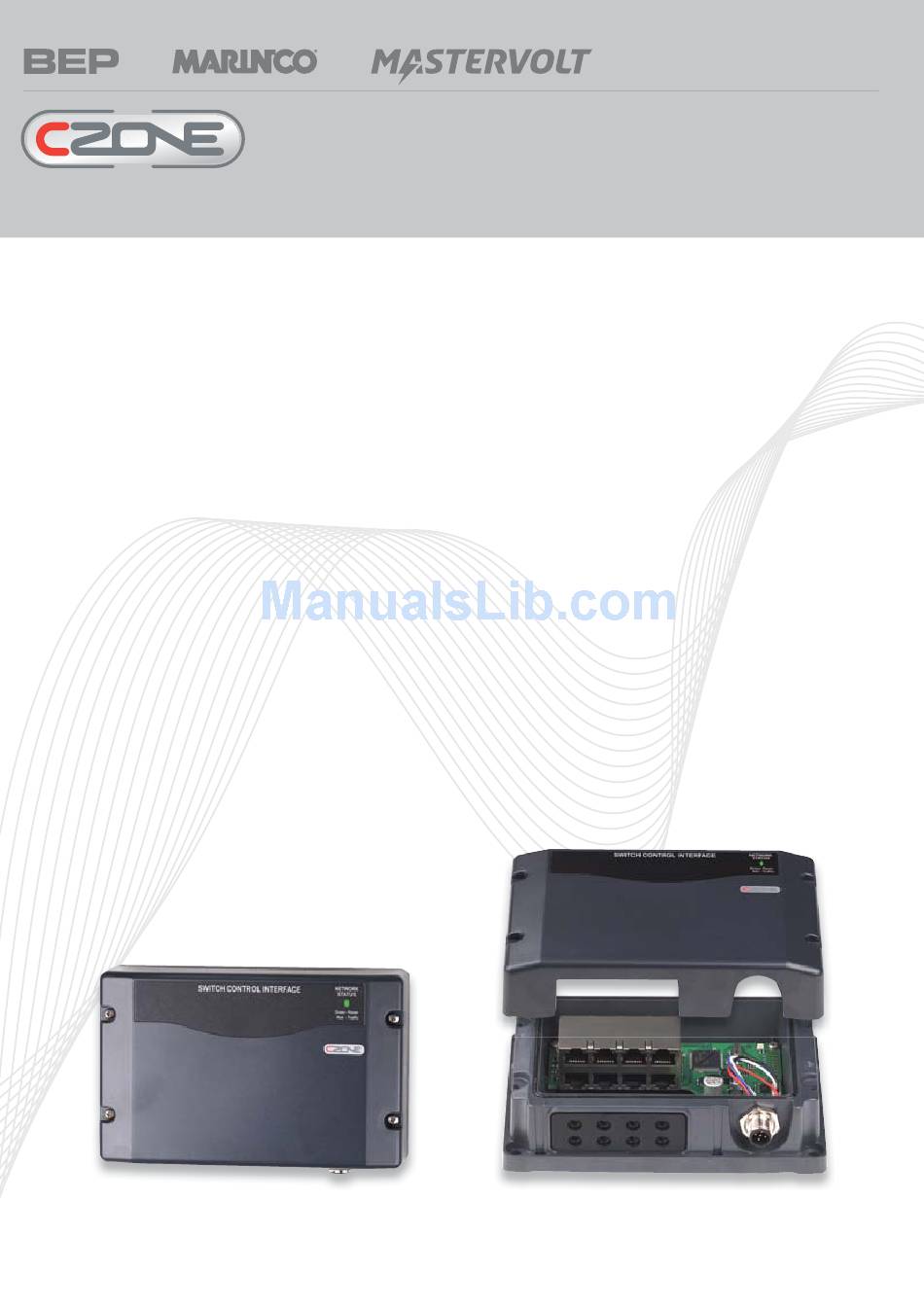

CZone Switch Control Interface Quick Manual

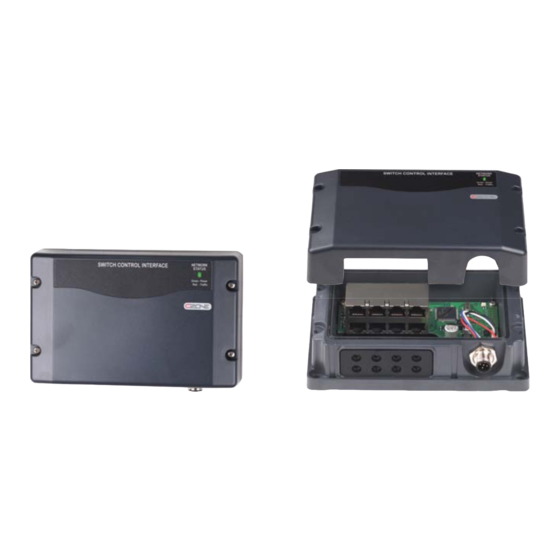

Switch Control Interface (SCI)

Product description:

The Switch Control Interface (SCI) is a module which converts signals from traditional mechanical switches and converts them into a CAN
signal to control loads via channels on output interface modules
SCI features:
•
8 switch channels per module (sixteen switch points)
•
Single switch position can control multiple OI channels
•
Multiple SCI switches can control single OI channel
•
Output for backlighting of switch labels (dimmable)
•
Outputs systems on and function/fault codes to systems
on LED of switches (dimmable)
•
Programmable switch types
Normally open
Normally closed
Momentary open or closed
Dimmer
Timer
Interlocking
Dimensions:
H 100mm (3"29/32) x W156mm (6"3/32) x D 42mm (1"5/8)
•
IPX5 water ingress rated
Weight: 281g
For more information contact BEP | ph: +64 9 415 7261 | email: enquiries@bepmarine.com | www.bepmarine.com
EMC ratings:
•
IEC EN 60945
•
IEC EN 61000
•
FCC Class B
•
ISO 7637 - 1 (12V Passenger cars and light commercial vehicles
with nominal 12V supply voltage - Electrical transient conduction
along supply lines only)
•
ISO 7637 - 2 (24V Commercial vehicles with nominal 24 V supply
voltage - Electrical transient conduction along supply lines only)
•
IEC Standards for indirect lighting strikes
