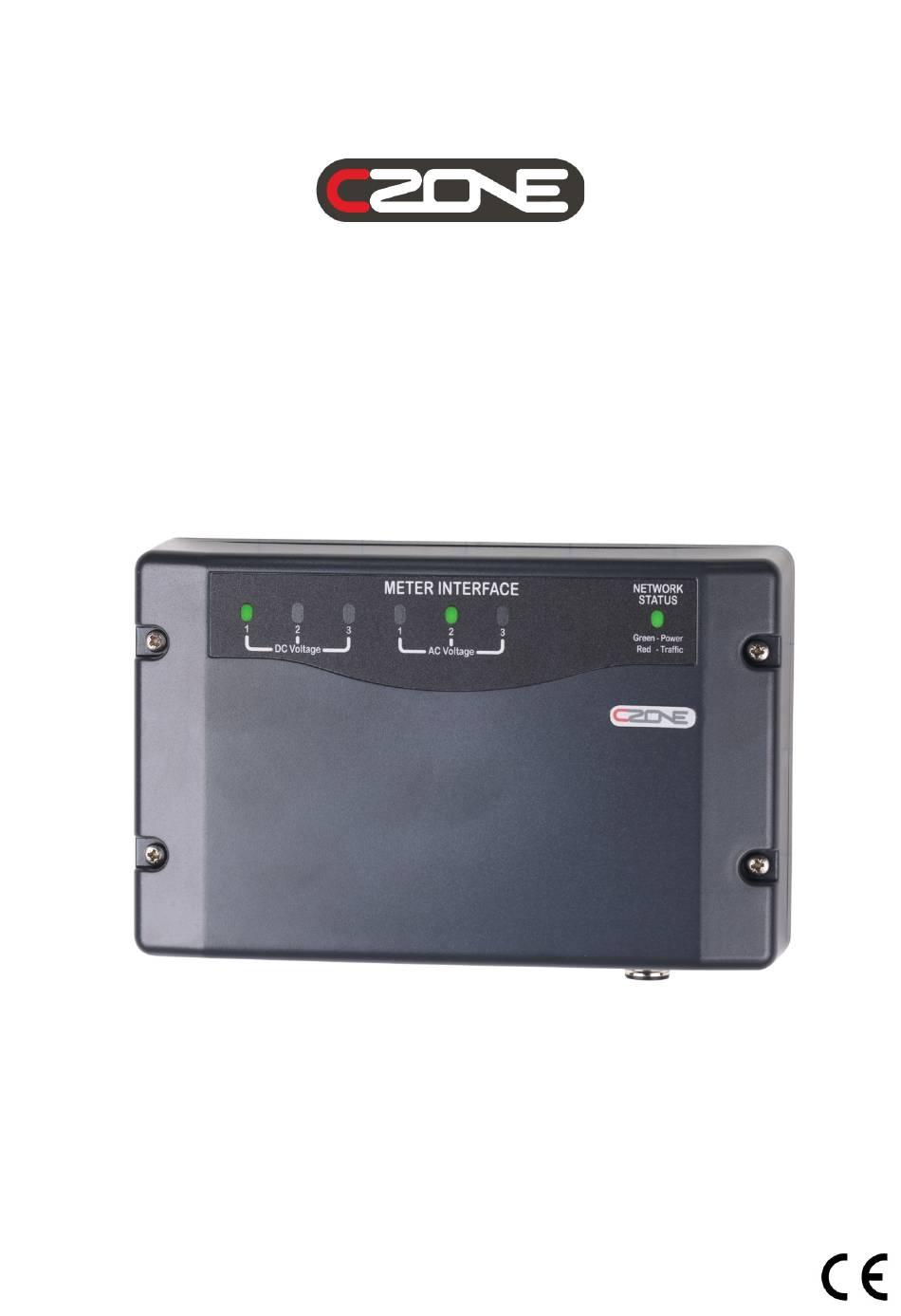

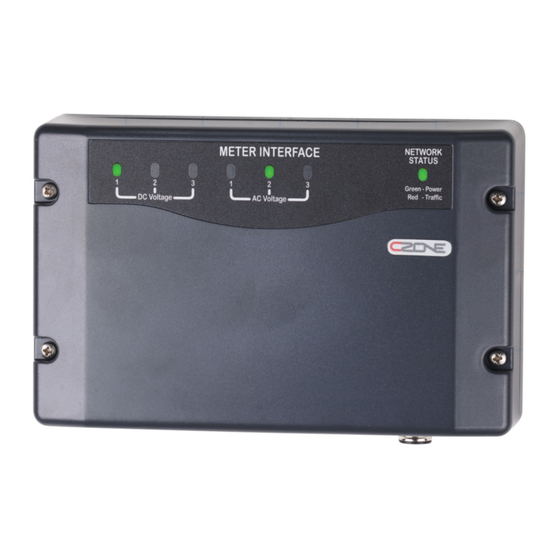

- Page 1 Meter Interface (MI) User & Installation Manual V2.0...
-
Page 2: Table Of Contents
EN / CZone® Meter Interface (MI) User & Installation Manual 1 Contents GENERAL INFORMATION Use Of This Manual Guarantee Specifications Quality Validity Of This Manual Liability Changes To The Meter Interface (MI) SAFETY AND INSTALLATION PRECAUTIONS Warnings And Symbols Use For Intended Purpose... -
Page 3: General Information
EN / CZone® Meter Interface (MI) User & Installation Manual 2 GENERAL INFORMATION USE OF THIS MANUAL Copyright © 2019 BEP Marine. All rights reserved. Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the prior written permission of BEP Marine is prohibited. This manual serves as a guideline for the safe and effective operation, maintenance and possible correction of minor malfunctions of the Meter Interface Module (MI). ... -
Page 4: Safety And Installation Precautions
EN / CZone® Meter Interface (MI) User & Installation Manual 3 SAFETY AND INSTALLATION PRECAUTIONS WARNINGS AND SYMBOLS Safety instructions and warnings are marked in this manual by the following pictograms: CAUTION Special data, restrictions and rules with regard to preventing damage. -
Page 5: Overview
The Meter Interface (MI) accepts inputs from external AC and DC power metering sensors such as: AC and DC voltage and amps, AC kWatts, and DC battery capacity in amp hours and percent remaining. All with user definable high and low alarms. The MI processes the information from these inputs and broadcasts it onto the CZone bus. FEATURES 3 x AC voltage inputs (multi voltage) •... -
Page 6: Installation
EN / CZone® Meter Interface (MI) User & Installation Manual 5 Installation GUIDELINES • Ensure the modules are installed vertically with the cables exiting downwards, this ensures IPX5 rating is retained. All seals and cable glands must be fitted including blanking plugs inserted in any unused positions. -
Page 7: Ac Connections
EN / CZone® Meter Interface (MI) User & Installation Manual 8 Way, DC DC Negative DC voltage positive input 3 Note: these are paired inputs DC voltage positive input 2 for correct metering these must be matched to the same supply source... -
Page 8: Dipswitch
DIPSWITCH Using a small screwdriver, carefully set the dipswitch to required setting. • The dipswitch number must be unique for all modules on the CZone network and must match the dipswitch • setting in the configuration to function correctly. The example shows a dipswitch number of 10000000 where 0 = Off and 1 = On. -
Page 9: Led Flash Codes
EN / CZone® Meter Interface (MI) User & Installation Manual 6 LED Flash Codes Figure 4. LED Flash Codes 1. Circuit Status LED’s Colour Description Green Solid ON Valid Signal Input 1x Red Flash Channel Not Configured 2x Red Flash... -
Page 10: Labelling
EN / CZone® Meter Interface (MI) User & Installation Manual 7 Labelling CONNECTIONS/LED FLASH CODE LABEL This label is located on the inside of the front lid of the unit, it shows the LED codes and electrical connections to the unit: Figure 5. -
Page 11: Ac Wiring Example
EN / CZone® Meter Interface (MI) User & Installation Manual 8 AC Wiring Example 1A FUSE 1A FUSE 1A FUSE Figure 7. AC Wiring Diagram... -
Page 12: Dc Wiring Example
EN / CZone® Meter Interface (MI) User & Installation Manual 9 DC Wiring Example Figure 8. DC Wiring Diagram... -
Page 13: Dimensions
EN / CZone® Meter Interface (MI) User & Installation Manual 10 Dimensions Figure 9. Dimensions... -
Page 14: Ordering Information
EN / CZone® Meter Interface (MI) User & Installation Manual 11 Ordering Information MODULE Description Part number CZONE METER INTERFACE c/w SEAL & PLUG 80-911-0005-00 CZONE METER INTERFACE NO SEAL & PLUG 80-911-0006-00 ACESSORIES AND SPARES Description Part number SEAL CABLE GLAND for CZONE MI BK SILICON... -
Page 15: Declaration Of Conformity
EN / CZone® Meter Interface (MI) User & Installation Manual 13 Declaration Of Conformity...
