CZone Meter Interface Quick Manual

Mastervolt czone meter interface (mi) quick manual

Advertisement

Quick Links

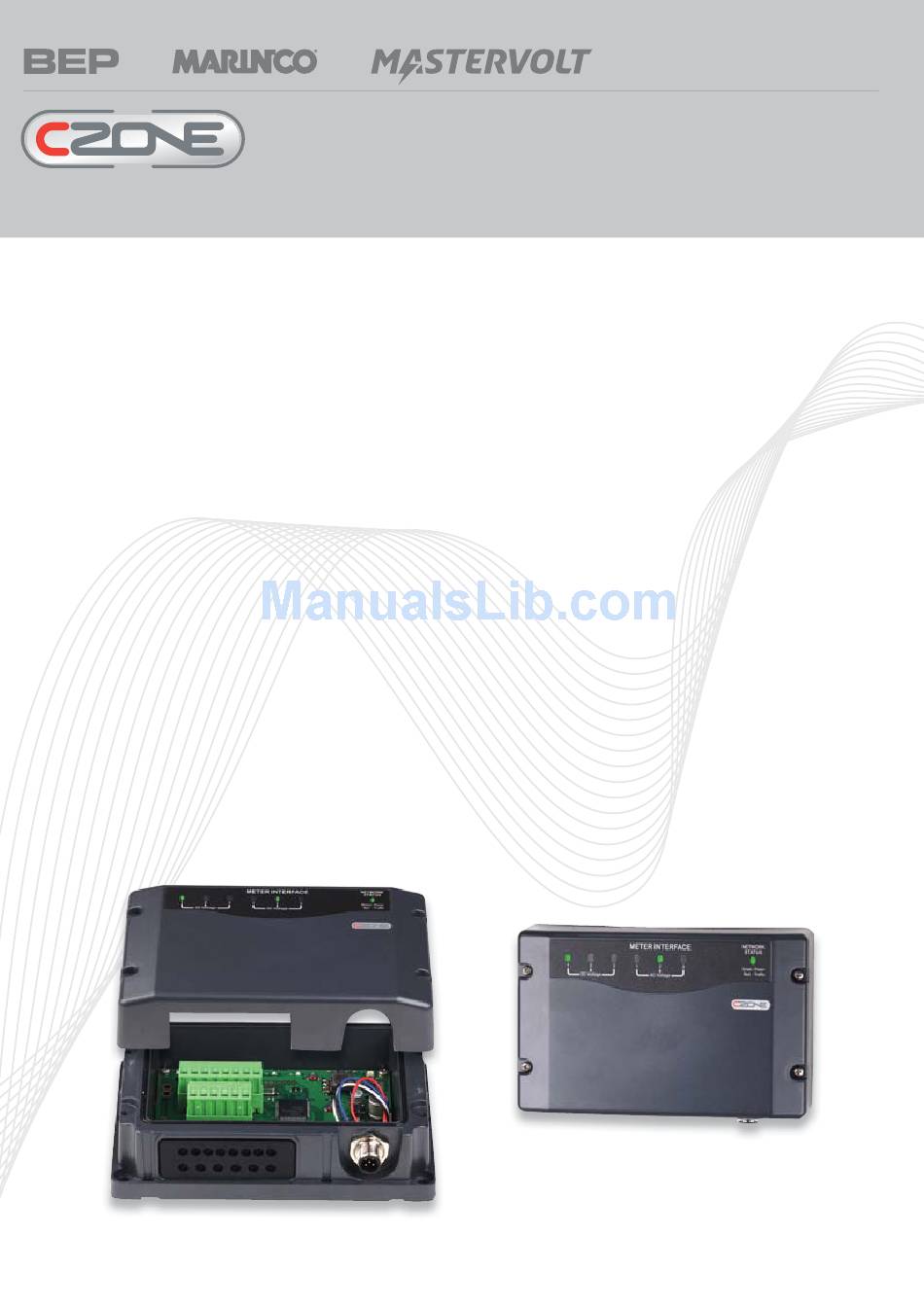

Meter Interface (MI)

Product description:

The Meter Interface is designed to accept multiple inputs from AC current and voltage transformers as well as DC voltage inputs and current
inputs from shunts The MI processes the information from these inputs and broadcasts it onto the CZone bus
MI features:
AC
3 x AC voltage inputs (multi voltage)
2 x AC current inputs
Calculates true RMS power
Ignition protected
IPX5 water ingress protection
DC
3 x DC voltage inputs (multi voltage)
2 x DC current inputs
Calculates battery capacity as Ampere hours and percentage
charge remaining
Resolution for current metering down to 0.1A
For more information contact BEP | ph: +64 9 415 7261 | email: enquiries@bepmarine.com | www.bepmarine.com
Dimensions:
H 100mm (3"29/32) x W156mm (6"3/32) x D 42mm (1"5/8)
Weight: 281g
Note: High and low alarm levels can be set for all inputs
EMC ratings:
• IEC EN 60945
• IEC EN 61000
• FCC Class B
• ISO 7637 - 1 (12V Passenger cars and light commercial vehicles
with nominal 12 V supply voltage - Electrical transient conduction
along supply lines only)
• ISO 7637 - 2 (24V Commercial vehicles with nominal 24 V supply
voltage - Electrical transient conduction along supply lines only)
• IEC Standards for indirect lighting strikes

Advertisement

loading
Need help?

Need help?

Do you have a question about the Meter Interface and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CZone Meter Interface

  • Page 1: Product Description

    Product description: The Meter Interface is designed to accept multiple inputs from AC current and voltage transformers as well as DC voltage inputs and current inputs from shunts The MI processes the information from these inputs and broadcasts it onto the CZone bus MI features: •...
  • Page 2: Led Flash Codes

    LED Flash Codes Channel status indicators Network Status indicator
 Network Status Indicator • Extinguished = Network power disconnected • Green = Network power connected • Red = Network traffi c Channel Status Indicators
 For more information contact BEP | ph: +64 9 415 7261 | email: enquiries@bepmarine.com | www.bepmarine.com...
  • Page 3 Connections Electrical Connections DC OUTPUT INTERFACE 1AMP FUSE BATTERY BILGE PUMP BATTERY ENGINE SWITCH NEGATIVE ALT 2 WIPER BUS BAR NMEA 2000 NETWORK STARTER ALT 1 BATTERY SWITCH HORN CIRCUIT BREAKER 450A 50mV SHUNT 1AMP FUSE (BATT) (LOAD) BATTERY TWISTED PAIR 8 Way, DC DC Negative DC voltage positive input 3...
  • Page 4 Labelling Connections/LED fl ash code label This label is located on the inside of the front lid of the unit, it shows the LED codes and electrical connections to the unit
 Module Identifi cation and Dipswitch label These labels allow easy identifi cation of each module whilst recording the dipswitch setting. These labels are to be fi tted to the cover and to the module (this prevents covers being swapped).
  • Page 5 Installation Guidelines Ensure the modules are installed vertically with the cables exiting downwards All seals and cable glands must be fi tted including blanking plugs inserted in any unused positions. Ensure all labels are fi tted and correct Dimensions

...
