- Page 1 Motor Output Interface (MOI) User & Installation Manual V2.0...
- Page 2 EN / CZone® Output Interface (MOI) User & Installation Manual Copyright This document is copyright 2018 under the Creative Commons agreement. Rights are granted to research and reproduce elements of this document for non-commercial purposes on the condition that BEP Marine is credited as the source.
-
Page 3: Table Of Contents
EN / CZone® Output Interface (MOI) User & Installation Manual TABLE OF CONTENTS GENERAL INFORMATION Use of this manual Guarantee Specifications Quality Validity Of This Manual Liability Changes To The Motor Output Interface SAFETY AND INSTALLATION PRECAUTIONS Warnings And Symbols... -
Page 4: General Information
BEP Marine is prohibited. This manual serves as a guideline for the safe and effective operation, maintenance and possible correction of minor malfunctions of the Motor Output Interface, called MOI further in this manual. This manual is valid for the following models:... -
Page 5: Safety And Installation Precautions
EN / CZone® Output Interface (MOI) User & Installation Manual 2 SAFETY AND INSTALLATION PRECAUTIONS WARNINGS AND SYMBOLS Safety instructions and warnings are marked in this manual by the following pictograms: CAUTION Special data, restrictions and rules with regard to preventing damage. -
Page 6: Overview
16 mm2 (6AWG) in size, or multiple smaller conductors. No need for specialized crimp terminals and expensive crimp tools to be carried for terminations to CZone, just a blade screwdriver. A protective flexible boot offers protection to the connections from harsh environment conditions. -
Page 7: Moi Hardware Overview

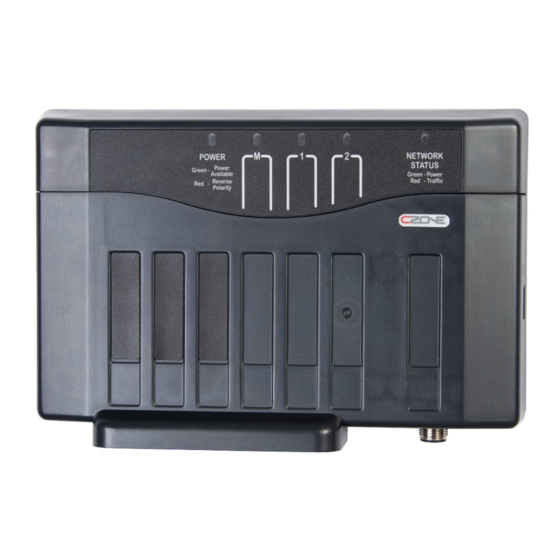

EN / CZone® Output Interface (MOI) User & Installation Manual MOI HARDWARE OVERVIEW DC POWER Green-Available Red - Fault MOI With Cover DC POWER Green-Available Red - Fault MOI No Cover DC Power LED Motor Circuit Fuses Waterproof Cover MOI Input/Output Fuse Label Circuit ID Labels 10. -
Page 8: Led Indicators
EN / CZone® Output Interface (MOI) User & Installation Manual LED INDICATORS DC POWER Green-Available Red - Fault MOI LED Indicators 1. DC Power LED Colour Description Extinguished Network Power Disconnected Green Input Power Available Input Power Reverse Polarity 2. Channel Status LED Indicators... -
Page 9: Design
EN / CZone® Output Interface (MOI) User & Installation Manual 4 DESIGN • Ensure load being H-Bridged is capable of being controlled via polarity change. Load must be under 20amps current draw. • Make a list of outputs to be wired to the MOI and assign them to one of the 2 output channels. -
Page 10: Mounting
EN / CZone® Output Interface (MOI) User & Installation Manual MOUNTING MOI Mounting 1. Mount the MOI on a vertical surface with the cables exiting downwards. 2. Allow enough space below cable grommet for wiring bend radius. Note - Cable radius determined by wiring manufacturer. -
Page 11: Connections
EN / CZone® Output Interface (MOI) User & Installation Manual CONNECTIONS The MOI has a convenient output connector that requires no crimping tools and accepts cables from 24AWG to 8AWG (0.5 - 6mm). The unit has no power key and will turn on when power is applied to the network. The module will continue to draw power even when it is not in operation. -
Page 12: Inserting Fuses
EN / CZone® Output Interface (MOI) User & Installation Manual INSERTING FUSES The MOI provides ignition protected circuit protection for each individual channel via standard ATC fuses (not supplied). Appropriately rated fuses should be selected and installed for each channel to protect the load and the wiring for each circuit. -
Page 13: Network Configuration
EN / CZone® Output Interface (MOI) User & Installation Manual NETWORK CONFIGURATION CZone modules communicate with each other over a NMEA2000 CAN BUS network. Each module needs a unique address, this is achieved by carefully setting the dipswitch on each module with a small screwdriver. The dipswitch on each module must match the setting in the CZone configuration. -
Page 14: Module Identification Label
4. Check the software version on the MOI with the CZone Configuration Tool and update if necessary. 5. Write the configuration file to the network (Refer to the CZone Configuration Tool Instructions for details on how to write a CZone configuration file). -
Page 15: System Diagram Examples
EN / CZone® Output Interface (MOI) User & Installation Manual SYSTEM DIAGRAM EXAMPLES System Diagram... -
Page 16: Ordering Information
EN / CZone® Output Interface (MOI) User & Installation Manual 6 ORDERING INFORMATION Part Numbers and Accessories Part Number Description 80-911-0007-00 CZONE MOI C/W CONNECTORS CZONE MOI NO CONNECTORS 80-911-0008-00 80-911-0041-00 TERM BLOCK OI 6W PLUG 10 16 PITCH 80-911-0034-00... -
Page 17: Emc Ratings
EN / CZone® Output Interface (MOI) User & Installation Manual EMC RATINGS • IEC EN 60945 IEC EN 61000 • FCC Class B • ISO 7637 - 1 (12V Passenger cars and light commercial vehicles with nominal 12 V supply voltage - •... -
Page 18: Declaration Of Conformity
EN / CZone® Output Interface (MOI) User & Installation Manual 8 Declaration of Conformity...
