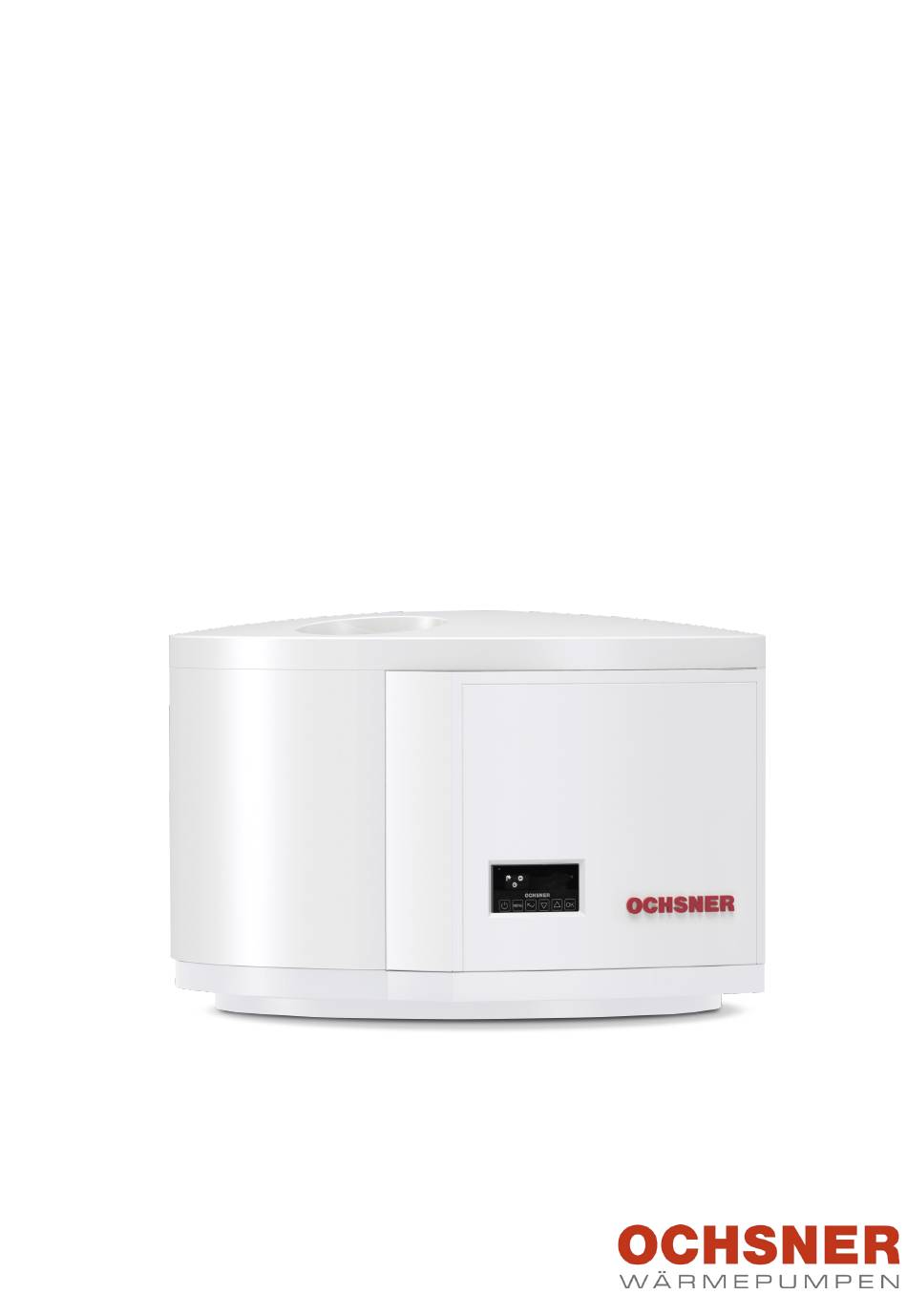

- Page 1 OPERATING AND INSTALLATION MANUAL ► EUROPA Mini IWPL TRANSLATION OF THE ORIGINAL MANUAL...
-
Page 3: Table Of Contents
12. Rectifying faults 12.1 Fault messages on controller display 13. Appliance maintenance 13.1 Service interval 13.2 Removing the cowl 13.3 Descaling the DHW tank 13.3.1 Effect of water quality 13.4 Customer service 13.5 Maintenance contract 14. Specification BIA-EUROPA Mini IWPL-EN11 | www.ochsner.com... -
Page 4: Please Note
Failure to observe this information will result in seri- ous injury or death. WARNING Failure to observe this information may result in se- rious injury or death. CAUTION Failure to observe this information may result in non-serious or minor injury. www.ochsner.com | BIA-EUROPA Mini IWPL-EN11... -
Page 5: Other Symbols
► Commissioning and maintenance of the appliance Units of measurement may be carried out only by OCHSNER Customer Ser- vice or by customer service partners authorised by Information OCHSNER. In these documents, unless otherwise specified, all lengths (e.g. -
Page 6: Appliance Description
500 l DHW tank must be assessed Anti-legionella 60.0°C 5.0°C to 65.0°C in advance by the system installer (all-year-round mode target value (S2) source temperature >15°C). OCHSNER accepts no liability for planning errors. www.ochsner.com | BIA-EUROPA Mini IWPL-EN11... -
Page 7: Control Buttons
Switching the heat pump on and off » Press and hold the On/Off button for at least 2 seconds. 1 LED status, charging pump LED off: Charging pump switched off LED flashes: Charging pump operating BIA-EUROPA Mini IWPL-EN11 | www.ochsner.com... -
Page 8: Dhw
Release the SET button. ► Interval period 7 days » Press and hold the Up and Down buttons for at least 3 seconds. The actual temperature is displayed again. » Press and hold the SET button. www.ochsner.com | BIA-EUROPA Mini IWPL-EN11... - Page 9 Target for anti-le- 5°C to 65°C 60.0°C » gionella mode Set the interval period (days). Interval period for an- 0 to 14 days 0 = deacti- ti-legionella mode 0 = no anti-le- vated gionella mode BIA-EUROPA Mini IWPL-EN11 | www.ochsner.com...
-
Page 10: Maintenance And Care
INSTALLATION | Maintenance and care Maintenance and care INSTALLATION We recommend having your heat pump inspected annu- ally and, if necessary, serviced by OCHSNER Customer Service. Safety Material damage Maintenance work on electrical components of the Only a qualified contractor should carry out installation, heat pump may only be carried out by qualified commissioning, maintenance and repair of the appliance. -
Page 11: Installation Location
1 m. ► Rear: min. 200 mm ► To sides: min. 500 mm each To prevent condensate from escaping, the air pipes must be laid horizontally or at a slight downward inclination to- BIA-EUROPA Mini IWPL-EN11 | www.ochsner.com... -
Page 12: Appliance Installation
The DHW tank must be completely filled before commissioning. » Please note the following when moving the appliance: Dry running will destroy the integral charging pump. » Do not unpack the appliance until it has been moved to the installation site. www.ochsner.com | BIA-EUROPA Mini IWPL-EN11... -
Page 13: Connecting Cold Water And Dhw
Information of safety devices and cable cross-sections. Observe all applicable national and regional regu- lations and provisions. OCHSNER does not accept liability for faults resulting from incorrectly designed safety devices! » Install a type-tested safety valve and a non-return valve on site. -
Page 14: Decommissioning
Material damage If the power supply to the heat pump system is interrupted and there is a risk of frost, drain the system on the water side. www.ochsner.com | BIA-EUROPA Mini IWPL-EN11... -
Page 15: Rectifying Faults
Check the safety device on the main distributor board for your house. Switch the safety device back on. If the safety device triggers again after being switched back on, contact a qualified contractor or OCHSNER Customer Service. Fault display heat pump (See page 16, Fault messages on controller display) -
Page 16: Fault Messages On Controller Display
Check sensor/terminal Safety shutdown Reduce target value High pressure No water in the tank Frost protection Condenser silted up → Clean condenser Air temperature too low Data loss in the parameter mem- Contact OCHSNER customer service www.ochsner.com | BIA-EUROPA Mini IWPL-EN11... -
Page 17: Appliance Maintenance
Divide the cowl outer casing by moving the individual and any screens and filters should also be checked for casing parts vertically to each other. cleanliness. OCHSNER Customer Service will be pleased to help in carrying out maintenance and testing. 13.2 Removing the cowl Material damage The cowl must be removed only by authorised con- tractors. -
Page 18: Effect Of Water Quality
Sulphate [1] <100 No limit (SO4²-) <200 quality components and care in its production, please con- >200 tact OCHSNER customer service on the phone numbers Ammonium (NH4+) <2 Within 24 h below. 2-20 >20 ► Customer service hotline for Austria: Chlorides (CI-) <100... - Page 19 ► For the system user, this reduces the risk of system failure. You can find further information on customer service and on the services offered under the maintenance contracts at www.ochsner.com. BIA-EUROPA Mini IWPL-EN11 | www.ochsner.com...
-
Page 20: Specification
Heat transfer medium temperature differential Test pressure [bar] Heat transfer medium flow rate [m³/h] 0,40 Internal pressure differential [mbar] Circulation pump heat sink WNA [internal] ZRS 12/4-3 Residual head I WNA external, incl. FM [mbar] www.ochsner.com | BIA-EUROPA Mini IWPL-EN11... - Page 21 Unrestricted air flow [m³/h] External pressure [Pa] EVAPORATOR: Type Finned tube heat exchanger Material Copper/aluminium Number [pce] Defrost technology / frost protection shutdown Electronics Max. refrigerant operating pressure [bar] Operating temperature min. [°C] Operating temperature max. [°C] BIA-EUROPA Mini IWPL-EN11 | www.ochsner.com...
- Page 22 85 mm Secured with a screw-on bracket 14.3 NTC temperature sensor All temperature sensors of the control unit have the same characteristic (NTC 5000Ω at 25°C). The sensor values are shown in the following table. www.ochsner.com | BIA-EUROPA Mini IWPL-EN11...
- Page 23 Temperature setting in deliv- [°C] ered condition Sound power internal [dB] Smart Grid-ready (operation only at off-peak periods possible) Qelec daily power consump- [kWh] 6,487 tion Mixed water volume at 40°C, X Air temperature [°C] Y COP BIA-EUROPA Mini IWPL-EN11 | www.ochsner.com...
- Page 24 INSTALLATION | Specification 14.6 System schematic diagrams DHW tank with Europa Mini IWPL OCHSNER DHW tank SP 300 / SP 500 www.ochsner.com | BIA-EUROPA Mini IWPL-EN11...
- Page 25 INSTALLATION | Specification Europa Mini twin solution OCHSNER DHW tank SP 750 BIA-EUROPA Mini IWPL-EN11 | www.ochsner.com...
- Page 26 Frequency 49.5 Hz to 50.5 Hz ► Slow voltage changes 230 V ± 10% (integration inter- val 10 min) ► Rapid voltage changes 230 V ± 5% (integration inter- val 10 ms) ► Voltage asymmetry 2% www.ochsner.com | BIA-EUROPA Mini IWPL-EN11...
- Page 27 6 Expelled air - air outlet (pipe connection DN 160 via nipple or bend with sealing lips) 7 Exhaust air - air inlet (see 6.) 8 Fixing points (4 pce) for installing wall bracket A Expelled air B Exhaust air BIA-EUROPA Mini IWPL-EN11 | www.ochsner.com...
- Page 28 Refrigerant R134a The refrigerant circuit of this appliance is filled with R134a refrigerant. R134a refrigerant is a fluorinated greenhouse gas listed in the Kyoto Protocol. R134a refrigerant must not be discharged into the atmosphere. www.ochsner.com | BIA-EUROPA Mini IWPL-EN11...
- Page 29 INSTALLATION | Declaration of Conformity 16. Declaration of Conformity BIA-EUROPA Mini IWPL-EN11 | www.ochsner.com...
- Page 30 INSTALLATION | Declaration of Conformity www.ochsner.com | BIA-EUROPA Mini IWPL-EN11...
- Page 31 BIA-EUROPA Mini IWPL-EN11 | www.ochsner.com...
- Page 32 PL 31-302 Kraków Ochsner-Strasse 1 ul. Pod Fortem Nr. 19 Hotline for system partners: +43 (0) 820 201020 Tel.: +48 (0)12 4214527 Customer service hotline: +43 (0) 5 04245-499 kontakt@ochsner.pl kontakt@ochsner.at www.ochsner.com www.ochsner.com Subject to technical modifications. BIA-EUROPA Mini IWPL-EN11 | 2022.04...
