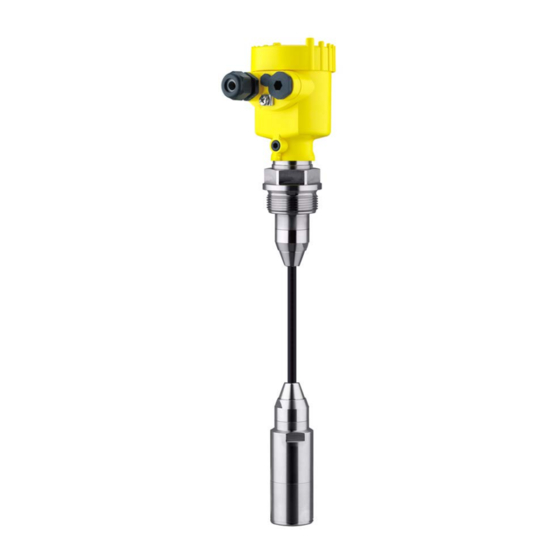

Pressure transmitter with ceramic measuring cell
Hide thumbs Also See for VEGABAR 86:

Advertisement

Quick Links

Quick setup guide
Pressure transmitter with ceramic
measuring cell
VEGABAR 86
Secondary sensor for electronic differential
pressure
Document ID: 46334

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGABAR 86 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vega VEGABAR 86

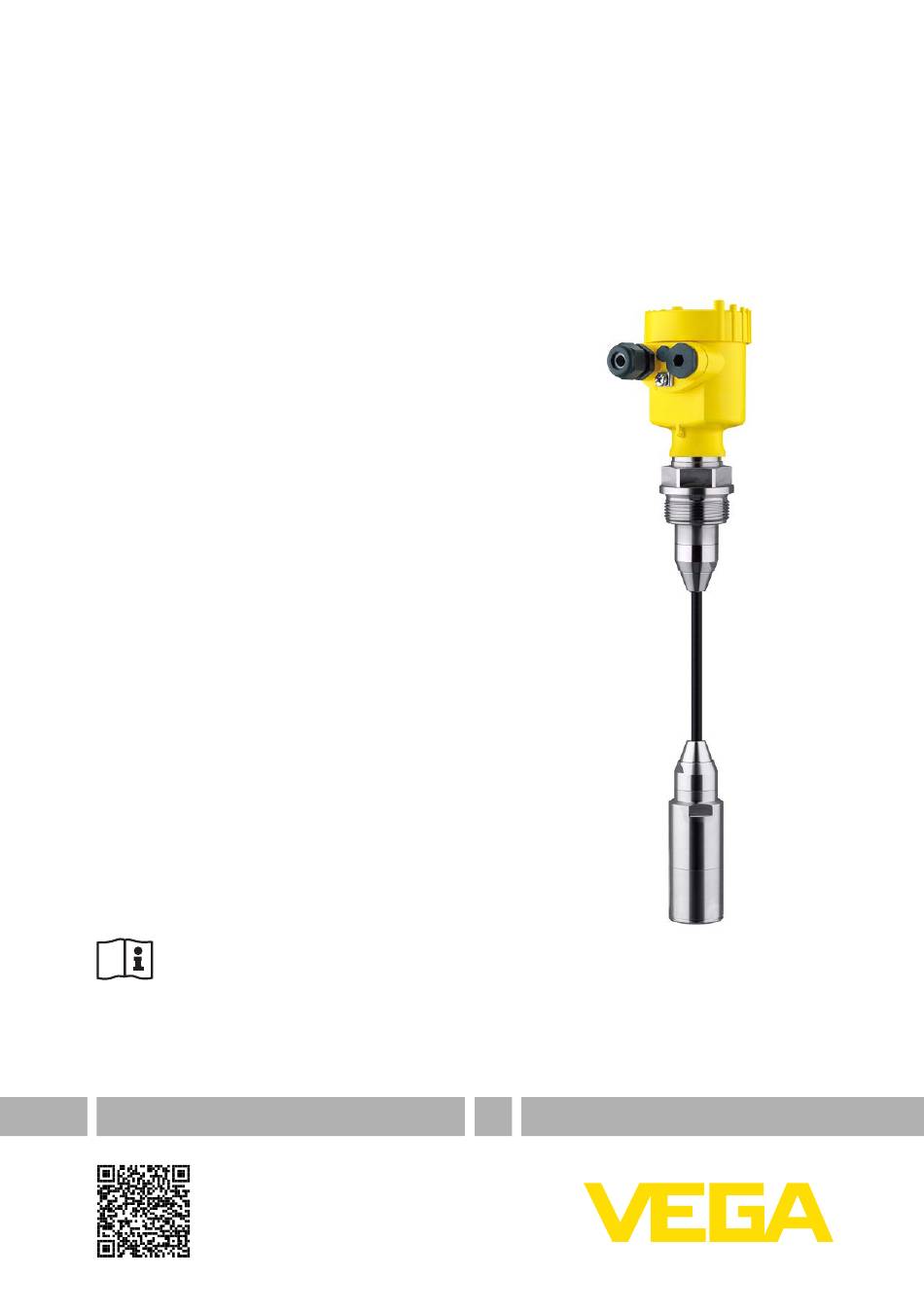

  • Page 1 Quick setup guide Pressure transmitter with ceramic measuring cell VEGABAR 86 Secondary sensor for electronic differential pressure Document ID: 46334...
  • Page 2: Table Of Contents

    SIL qualification. These manuals are available on our homepage. Operating instructions VEGABAR 86 - Secondary sensor for electronic differential pressure: Document-ID 45052 Editing status of the quick setup guide: 2022-04-20 VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 3: About This Document

    Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, note, tip: This symbol indicates helpful additional infor- mation and tips for successful work.
  • Page 4: For Your Safety

    During work on and with the device, the required personal protective equipment must always be worn. Appropriate use As Secondary Device, the VEGABAR 86 is part of an electronic dif- ferential pressure meaasurement. You can find detailed information about the area of application in chapter "...
  • Page 5: Environmental Instructions

    The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: • Chapter " Packaging, transport and storage" • Chapter " Disposal" VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 6: Product Description

    Alternatively, you can access the data via your smartphone: • Download the VEGA Tools app from the " Apple App Store" or the " Google Play Store" • Scan the QR-code on the type label of the device or •...
  • Page 7: Mounting

    The following requirements must be fulfilled: • Configuration of the sensor suitable for electronic differential pres- sure • Pressure type is identical for both sensors, i.e. relative pressure/ relative pressure or absolute pressure/absolute pressure VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 8 Total pressure: 0.8 bar + 0.05 bar = 0.85 bar Instrument selection Nominal measuring range Primary: 1 bar Nominal measuring range Secondary: 1 bar Turn Down: 1 bar/0.050 bar = 20 : 1 VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 9 Secondary (static or superimposed pressure) are output by the sensor. Depending on the instrument version, output as 4 … 20 mA signal or digitally via HART, Profibus PA or Foundation Fieldbus. VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 10: Connecting To Power Supply

    Fig. 3: Connection steps 5 and 6 5. Insert the wire ends into the terminals according to the wiring plan 6. Check the hold of the wires in the terminals by lightly pulling on them VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 11: Single Chamber Housing

    Connection cable Supply and signal circuit Primary Device Connect shielding here. Connect ground terminal on the outside of the hous- ing to ground as prescribed. The two terminals are galvanically connected. VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 12 The connection between Primary and Secondary Device is carried out acc. to the table: Primary Device Secondary Device Terminal 5 Terminal 5 Terminal 6 Terminal 6 Terminal 7 Terminal 7 Terminal 8 Terminal 8 VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 13: Set Up With The Display And Adjustment Module

    In this menu item you carry out the min. adjustment for level. Enter the percentage value and the corresponding pressure value for the min. level. Max. adjustment In this menu item you carry out the max. adjustment for level. VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 14 Enter the corresponding pressure value for 0 %. Span adjustment In this menu item you carry out the Span adjustment for the differen- tial pressure Enter the corresponding pressure value for 100 %. VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 15 Enter the percentage value and the corresponding height of the interface. Max. adjustment In this menu item, you carry out the adjustment for the max. height of the interface. Enter the percentage value and the corresponding height of the interface. VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 16 The quick setup for density-compensated level measurement is hence finished. Parameterization example VEGABAR 86 always measures pressure independently of the pro- cess variable selected in the menu item " Application". To output the selected process variable correctly, an allocation of the output signal to 0 % and 100 % must be carried out (adjustment).
  • Page 17: Parameter Adjustment - Extended Adjustment

    " Extended adjustment". Main menu The main menu is divided into five sections with the following func- tions: Setup: Settings, e.g., for measurement loop name, application, units, position correction, adjustment, signal output VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 18: Menu Overview

    Secondary Device Deactivated for electronic dif- ferential pressure Units Unit of measure- mbar (with nominal measuring range ment ≤ 400 mbar) bar (with nominal measuring ranges ≥ 1 bar) Static pressure VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 19 Number of positions after the decimal point, auto- matically Backlight Switched on Diagnostics Menu item Parameter Default setting Device status Peak value Pressure Current pressure measured value Pointer function Temperature Actual measuring cell and electronic temp. temperature VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 20 100.00 %, 1 m Special pa- Service-Login No reset rameters Info Menu item Parameter Device name VEGABAR 86 Instrument version Hardware and software version Factory calibration date Date Sensor characteristics Order-specific characteristics VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 21: Supplement

    Black, blue Connection cable Secondary - Primary, electrical data Ʋ Wire cross-section 0.34 mm² (AWG 22) Ʋ Wire resistance < 0.05 Ω/m (0.015 Ω/ft) IP66/IP68 (0.2 bar), only with absolute pressure. VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 22 12 V DC B min Ʋ U with lighting switched on 16 V DC B min Ʋ U Depending on the signal output and version of the B max Primary Devices VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 23 Notes VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 24 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2022 VEGA Grieshaber KG Am Hohenstein 113 Phone +49 7836 50-0 77761 Schiltach E-mail: info.de@vega.com...
