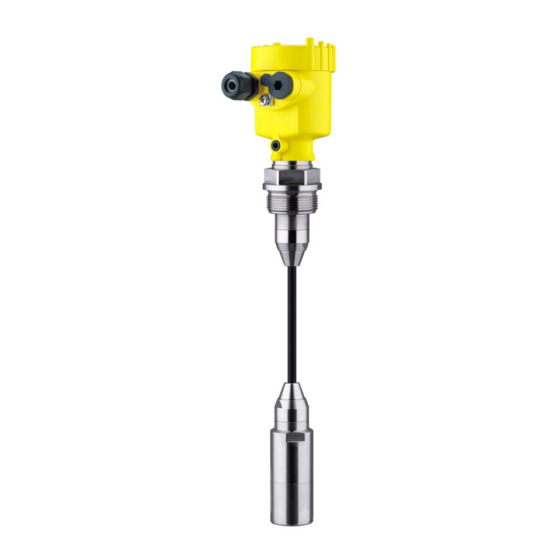

Pressure transmitter with ceramic measuring cell
Hide thumbs Also See for VEGABAR 86:

Advertisement

Quick Links

Quick setup guide
Pressure transmitter with ceramic
measuring cell
VEGABAR 86
Secondary sensor for electronic differential
pressure
With SIL qualification
Document ID: 48053

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGABAR 86 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vega VEGABAR 86

  • Page 1 Quick setup guide Pressure transmitter with ceramic measuring cell VEGABAR 86 Secondary sensor for electronic differential pressure With SIL qualification Document ID: 48053...
  • Page 2: Table Of Contents

    SIL qualification: Docu- ment-ID 48048 Safety Manual VEGABAR series 80 - Two-wire 4 … 20 mA/HART with SIL qualification: Document-ID 48369 Editing status of the quick setup guide: 2022-04-20 VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 3: About This Document

    Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, note, tip: This symbol indicates helpful additional infor- mation and tips for successful work.
  • Page 4: For Your Safety

    During work on and with the device, the required personal protective equipment must always be worn. Appropriate use As Secondary Device, the VEGABAR 86 is part of an electronic dif- ferential pressure meaasurement. You can find detailed information about the area of application in chapter "...
  • Page 5: Sil Qualification According To Iec 61508

    The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: • Chapter " Packaging, transport and storage" • Chapter " Disposal" VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 6: Product Description

    Alternatively, you can access the data via your smartphone: • Download the VEGA Tools app from the " Apple App Store" or the " Google Play Store" • Scan the DataMatrix code on the type label of the instrument or •...
  • Page 7: Mounting

    The following requirements must be fulfilled: • Configuration of the sensor suitable for electronic differential pres- sure • Pressure type is identical for both sensors, i.e. relative pressure/ relative pressure or absolute pressure/absolute pressure VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 8 Total pressure: 0.8 bar + 0.05 bar = 0.85 bar Instrument selection Nominal measuring range Primary: 1 bar Nominal measuring range Secondary: 1 bar Turn Down: 1 bar/0.050 bar = 20 : 1 VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 9 Secondary (static or superimposed pressure) are output by the sensor. Depending on the instrument version, output as 4 … 20 mA signal or digitally via HART, Profibus PA or Foundation Fieldbus. VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 10: Connecting To Power Supply

    Fig. 3: Connection steps 5 and 6 5. Insert the wire ends into the terminals according to the wiring plan 6. Check the hold of the wires in the terminals by lightly pulling on them VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 11: Single Chamber Housing

    Connection cable Supply and signal circuit Primary Device Connect shielding here. Connect ground terminal on the outside of the hous- ing to ground as prescribed. The two terminals are galvanically connected. VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 12 The connection between Primary and Secondary Device is carried out acc. to the table: Primary Device Secondary Device Terminal 5 Terminal 5 Terminal 6 Terminal 6 Terminal 7 Terminal 7 Terminal 8 Terminal 8 VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 13: Set Up With The Display And Adjustment Module

    The display and adjustment module is powered by the sensor, an ad- ditional connection is not necessary. Fig. 6: Installing the display and adjustment module in the electronics compart- ment of the single chamber housing VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 14: Parameter Adjustment

    For each parameter change you have to enter the PIN of the instru- ment. In delivery status, the PIN is "0000". Change parameters You can find a description below the respective parameter. VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 15 " Min. adjustment" and " Max. adjustment". Parameterization example VEGABAR 86 always measures pressure independently of the pro- cess variable selected in the menu item " Application". To output the selected process variable correctly, an allocation of the output signal to 0 % and 100 % must be carried out (adjustment).
  • Page 16 Afterwards you confirm that the serial number of your instrument was carried over correctly. This is used to check device communication. 4. Verify parameters Confirm the modified values one after the other. VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 17: Menu Overview

    Current output - Mode Output characteristics (SIL) 4 … 20 mA Reaction when malfunctions oc- ≤ 3.6 mA Current output - Min./ 3.8 mA Max. 20.5 mA Parameter active, when Secondary Device is connected VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 18 0 … 100 % correspond to ment 4 … 20 mA HART mode Address 0 DP flow ele- Unit ment Adjustment 0.00 % correspond to 0.00 m 100.00 %, 1 m VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 19 6 Set up with the display and adjustment module Info Menu item Parameter Device name VEGABAR 86 Instrument version Hardware and software version Factory calibration date Date Sensor characteristics Order-specific characteristics VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 20: Supplement

    Black, blue Connection cable Secondary - Primary, electrical data Ʋ Wire cross-section 0.34 mm² (AWG 22) Ʋ Wire resistance < 0.05 Ω/m (0.015 Ω/ft) IP66/IP68 (0.2 bar), only with absolute pressure. VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 21 12 V DC B min Ʋ U with lighting switched on 16 V DC B min Ʋ U Depending on the signal output and version of the B max Primary Devices VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 22 Notes VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 23 Notes VEGABAR 86 • Secondary sensor for electronic differential pressure...
  • Page 24 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2022 VEGA Grieshaber KG Am Hohenstein 113 Phone +49 7836 50-0 77761 Schiltach E-mail: info.de@vega.com...
