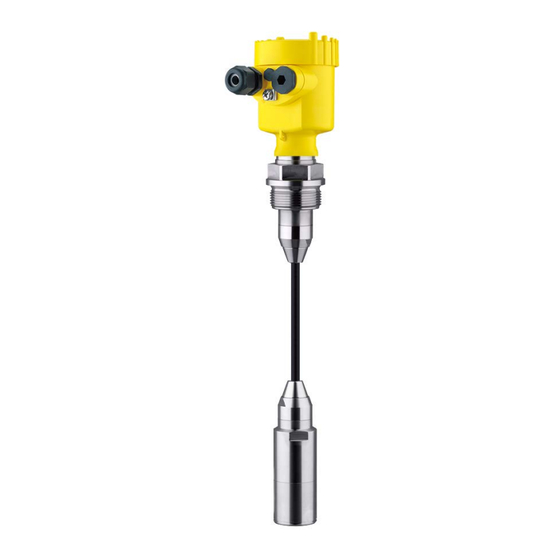

Submersible pressure transmitter with ceramic measuring cell
Hide thumbs Also See for VEGABAR 86:

Advertisement

Quick Links

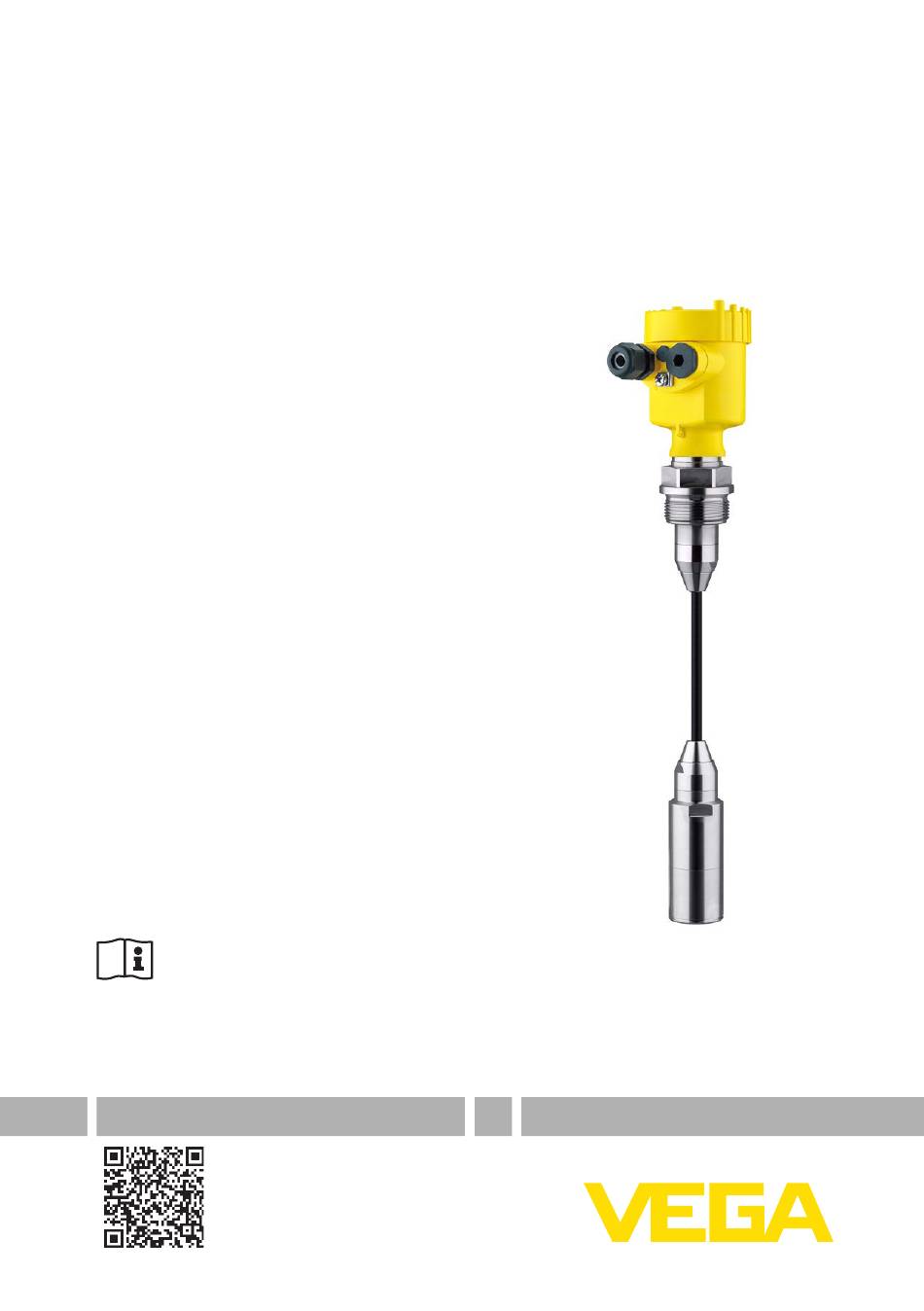

Quick setup guide
Submersible pressure transmitter with
ceramic measuring cell
VEGABAR 86
Profibus PA
Document ID: 46322

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGABAR 86 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vega VEGABAR 86

  • Page 1 Quick setup guide Submersible pressure transmitter with ceramic measuring cell VEGABAR 86 Profibus PA Document ID: 46322...
  • Page 2: Table Of Contents

    Operating Instructions Manual as well as the Safety Manual that comes with instruments with SIL qualification. These manuals are available on our homepage. Operating instructions VEGABAR 86 - Profibus PA: Document- ID 45042 Editing status of the quick setup guide: 2023-09-06...
  • Page 3: For Your Safety

    During work on and with the device, the required personal protective equipment must always be worn. Appropriate use Model VEGABAR 86 is a pressure transmitter for level and gauge measurement. You can find detailed information about the area of application in chapter "...
  • Page 4: Namur Recommendations

    The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: • Chapter " Packaging, transport and storage" • Chapter " Disposal" VEGABAR 86 • Profibus PA...
  • Page 5: Product Description

    To find order data, documents or software related to your device, you have the following options: • Move to " www.vega.com" and enter in the search field the serial number of your instrument. • Scan the QR code on the type label.
  • Page 6: Mounting

    Aluminium - single chamber Stainless steel single chamber (electropolished) Plastic double chamber Aluminium, stainless steel double chamber housing (precision casting) Filter element With the following instruments a blind plug is installed instead of the filter element: VEGABAR 86 • Profibus PA...
  • Page 7 3 Mounting • Instruments in protection IP66/IP68 (1 bar) - ventilation via capillar- ies in non-detachable cable • Instruments with absolute pressure VEGABAR 86 • Profibus PA...
  • Page 8: Connecting To The Bus System

    7. Check the hold of the wires in the terminals by lightly pulling on them 8. Connect the shielding to the internal ground terminal, connect the external ground terminal to potential equalisation VEGABAR 86 • Profibus PA...
  • Page 9: Single Chamber Housing

    Electronics compartment 6 7 8 Fig. 4: Electronics compartment - double chamber housing Internal connection to the connection compartment Contact pins for the display and adjustment module or interface adapter Selection switch for bus address VEGABAR 86 • Profibus PA...
  • Page 10 6 7 8 Fig. 5: Connection compartment - double chamber housing Voltage supply, signal output For display and adjustment module or interface adapter For external display and adjustment unit Ground terminal for connection of the cable screening VEGABAR 86 • Profibus PA...
  • Page 11: Set Up With The Display And Adjustment Module

    The display and adjustment module is powered by the sensor, an ad- ditional connection is not necessary. Fig. 6: Installing the display and adjustment module in the electronics compart- ment of the single chamber housing VEGABAR 86 • Profibus PA...
  • Page 12: Parameter Adjustment - Quick Setup

    126. This means that the sensor address can be changed via the display and adjustment module. Measurement loop name In this menu item you assign a suitable measurement loop name. Permitted are names with a maximum of 19 characters. VEGABAR 86 • Profibus PA...
  • Page 13 Enter the percentage value and the corresponding value for the max. level. Min. adjustment In this menu item you carry out the min. adjustment for level Enter the percentage value and the corresponding value for the min. level. The quick setup is finished. VEGABAR 86 • Profibus PA...
  • Page 14: Parameter Adjustment - Extended Adjustment

    5 Set up with the display and adjustment module VEGABAR 86 always measures pressure independently of the pro- Parameterization example cess variable selected in the menu item " Application". To output the selected process variable correctly, an allocation of the output signal to 0 % and 100 % must be carried out (adjustment).
  • Page 15: Menu Overview

    Adjustment Zero/Min. adjustment 0.00 bar 0.00 % Span/Max. adjustment Nominal measuring range in bar 100.00 % Linearisation Linear, cylindrical tank, … user-defined Linear Parameter only active if the instrument is connected to the Secondary sensor VEGABAR 86 • Profibus PA...
  • Page 16 Delivery status, basic settings Copy instrument settings Read from sensor, write into sensor Scaling Scaling size Volume in l Scaling format 0 % corresponds to 0 l 100 % corresponds to 100 l Special parameters Service-Login No reset VEGABAR 86 • Profibus PA...
  • Page 17 5 Set up with the display and adjustment module Info Menu item Parameter Device name VEGABAR 86 Instrument version Hardware and software version Factory calibration date Date Profibus Ident Number Identification number of the instrument on a Profibus system Sensor characteristics Order-specific characteristics VEGABAR 86 • Profibus PA...
  • Page 18: Set Up With Smartphone/Tablet, Pc/Notebook Via Bluetooth

    PIN in the adjustment menu of the sensor, e.g. to " 1111": 1. Go to setup via the extended operation 2. Lock operation by changing sensor PIN 3. Enable operation by entering the sensor PIN once more VEGABAR 86 • Profibus PA...
  • Page 19: Connecting

    Bluetooth-capable instru- ments in the area. PC/Notebook Start PACTware and the VEGA project assistant. Select the device search via Bluetooth and start the search function. The device auto- matically searches for Bluetooth-capable devices in the vicinity.
  • Page 20 6 Set up with smartphone/tablet, PC/notebook via Bluetooth App view Fig. 10: Example of an app view - Setup sensor adjustment VEGABAR 86 • Profibus PA...
  • Page 21: Supplement

    Operating voltage U 9 … 32 V DC Operating voltage U with lighting 13.5 … 32 V DC switched on Number of sensors per DP/PA segment coupler, max. IP66/IP68 (0.2 bar), only with absolute pressure. VEGABAR 86 • Profibus PA...
  • Page 22 Notes VEGABAR 86 • Profibus PA...
  • Page 23 Notes VEGABAR 86 • Profibus PA...
