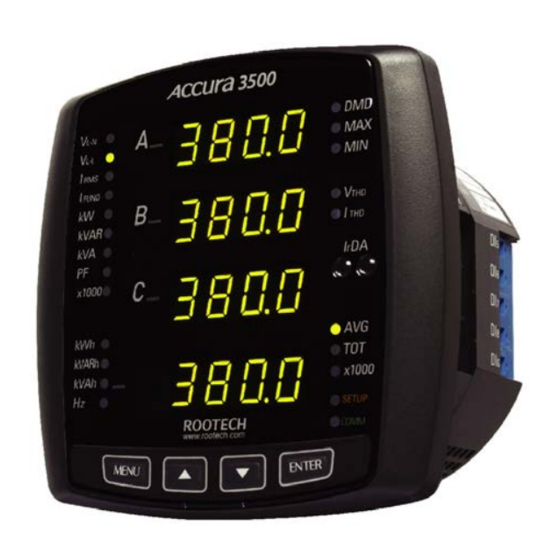

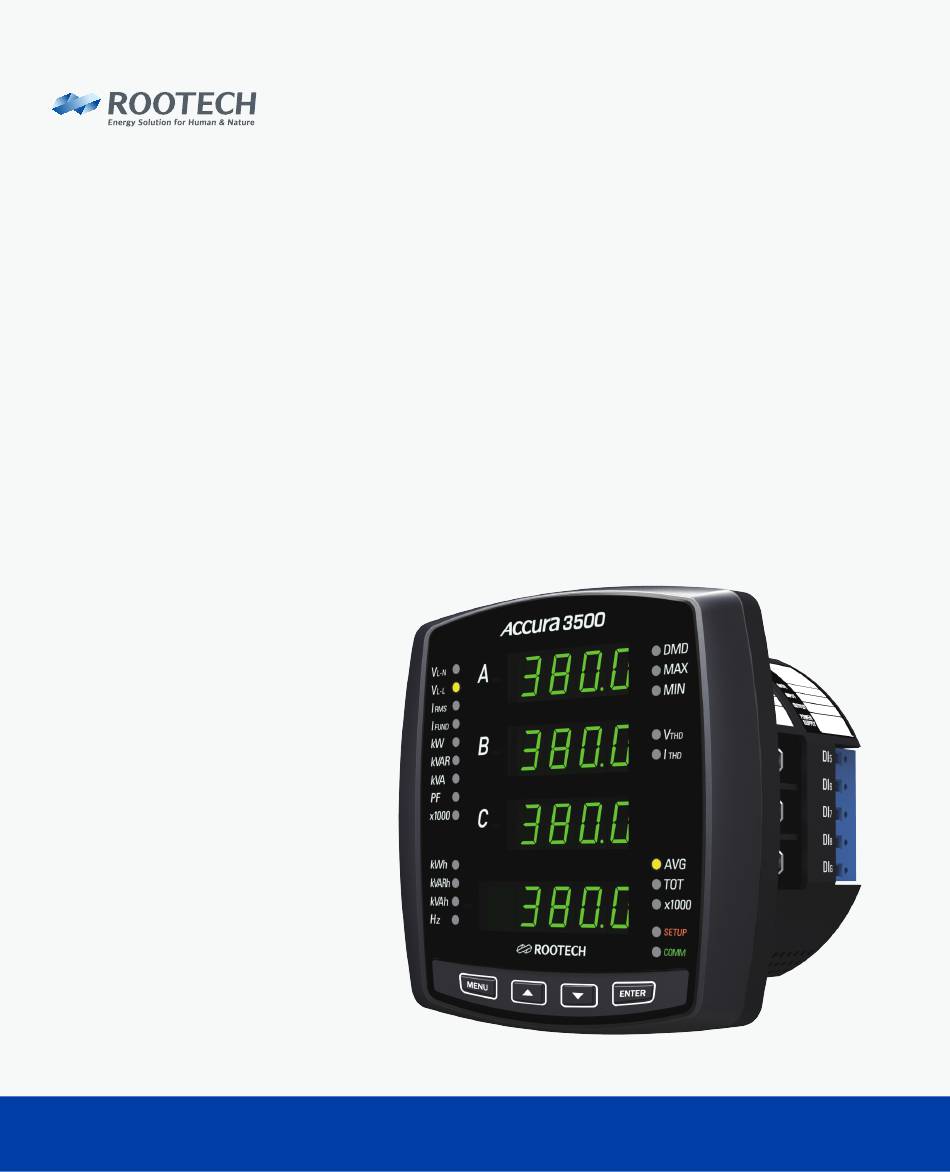

- Page 1 Accura 3500 Quick Setup Guide ※ Please refer to the User Guide for details...
- Page 2 Button Operation Press button to enter SETUP mode Button Do not save Short Enter Enter Select /Exit press Setup mode Event mode save Setup mode *Makes menu item changeable(blink)
-
Page 3: Table Of Contents
Setup Menu Select the menu item by short-pressing buttons. ※ Refer to the User Guide for details PT Ratio * CT Ratio * Wiring Mode * Comm Address * Protocol * Comm Speed [bps] * Parity Bits * Stop Bits * *Required... -
Page 4: Pt Ratio
PT Ratio PT Ratio Setup 0.01 ~ 5000.00 range... - Page 5 CT Ratio CT Ratio Setup 1 ~ 5000 range...
-
Page 6: Wiring Mode
Wiring Mode Wiring mode Setup (Single Phase (Single Phase (Three Phase (Three Phase range 2-wire) 3-wire) 3-wire, 4-wire) Open Delta) - Page 7 Comm Address Comm address Setup 1 ~ 247 range...
-
Page 8: Protocol
Protocol Protocol Setup range (Modbus RTU) (Rootech) - Page 9 Comm Speed[bps] Baud rate Setup 1200, 2400, 4800, 9600, 19200, 38400, 57600 range...
-
Page 10: Parity Bits
Parity Bits Parity bit Setup range (Even Parity) (None Parity) (Odd Parity) -
Page 11: Stop Bits
Stop Bits Stop bit Setup range (1 bit stop) (2 bit stop) - Page 12 Please refer to the User Guide for details...
