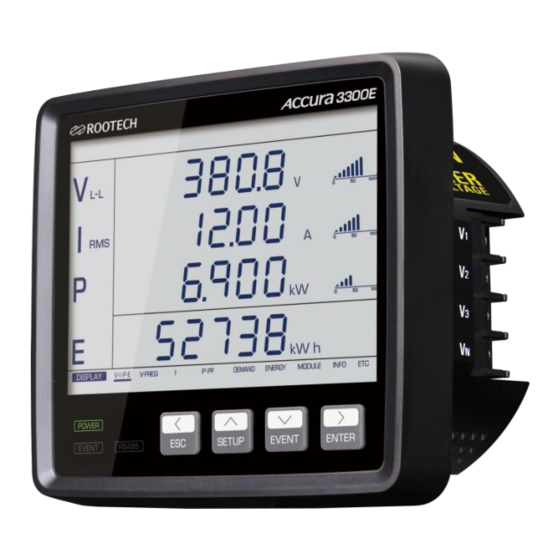

Accura 3300E
Quick Setup
Guide
※ Please refer to the User Guide for details

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Accura 3300E and is the answer not in the manual?

Questions and answers

Related Manuals for ROOTECH Accura 3300E

Summary of Contents for ROOTECH Accura 3300E

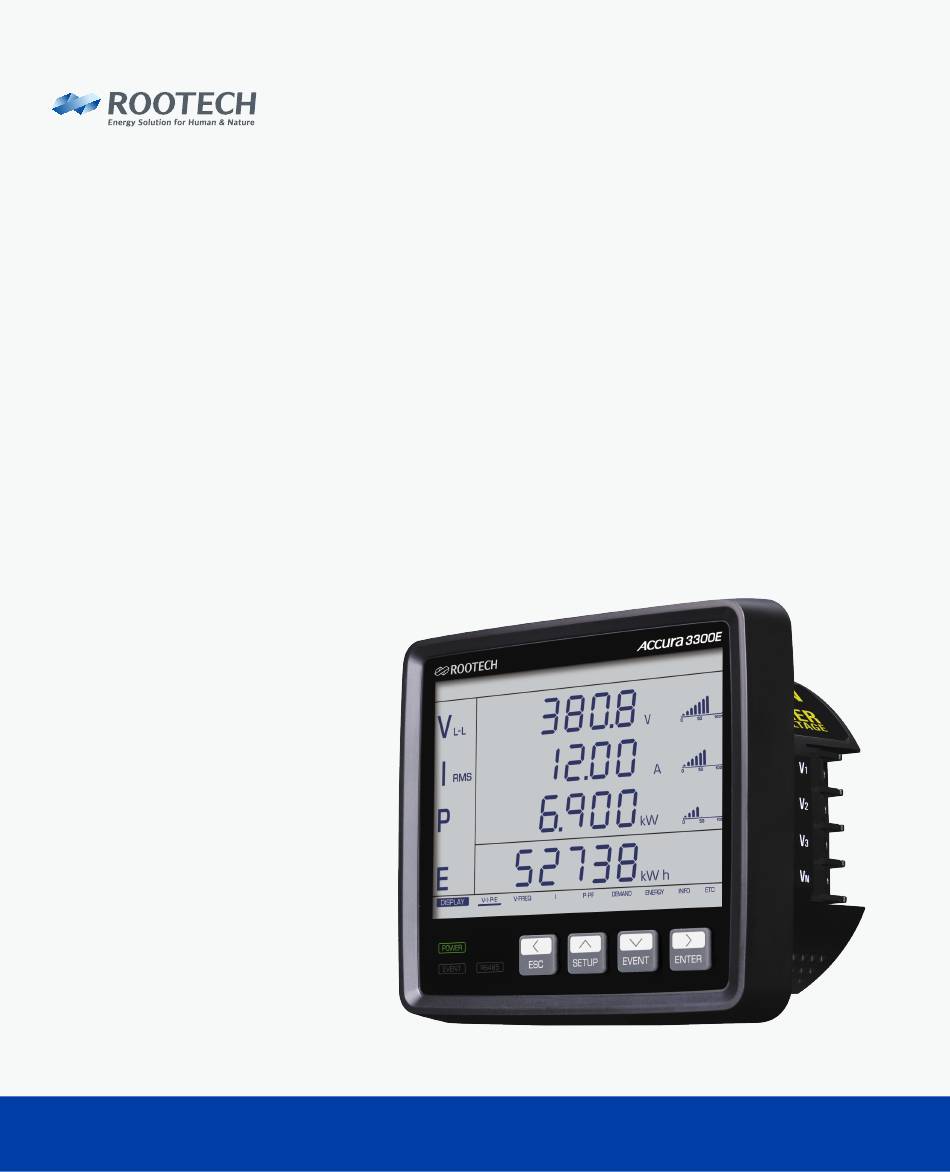

  • Page 1 Accura 3300E Quick Setup Guide ※ Please refer to the User Guide for details...

  • Page 2: Button Operation

    Button Operation Long press setup button to enter SETUP mode Button Short Move to the next menu item press /Change value. Do not save Long Enter Enter Select /Exit Setup mode Event mode press save Setup mode *Makes menu item changeable(blink).

  • Page 3: Setup Menu

    Setup Menu Select the menu item by short-pressing buttons. ※ Refer to the User Guide for details Meter Event COMM Information Voltage Wiring* Fuse Fail Baud Rate* Serial number PT Rating* Blackout Parity Bit* Hardware version CT Rating* Stop Bit* Software version Reference Voltage* Current Voltage*...
  • Page 4 Voltage Wiring Connection Setup range (Three Phase (Three Phase (Single Phase (Single Phase 4-wire) 3-wire) 3-wire) 2-wire)
  • Page 5 PT Rating PT Rating Secondary Primary (PT Secondary (PT Primary line-to-line line-to-line voltage rating) voltage rating) 000001 ~ 999999 001 ~ 999 Setup Setup range range For direct connection without PTs, set the same value for both primary and secondary line-to-line voltage ratings.
  • Page 6 CT Rating CT Rating Secondary Primary (CT Secondary (CT Primary Rating) Rating) 00000.1 ~ 99999.9 00.1 ~ 99.9 Setup Setup range range...

  • Page 7: Reference Voltage

    Reference Voltage Reference Voltage Primary (PT Primary line-to-line voltage) 000001 ~ 999999 Setup range *PT Primary line-to-line voltage has to be set regardless of wiring.

  • Page 8: Reference Current

    Reference Current Reference Current Primary (CT primary current) 000001 ~ 999999 Setup range...
  • Page 9 Baud Rate Baud rate 1200, 2400, 4800, 9600, 19200, Setup 38400, 57600, 115200 range...

  • Page 10: Parity Bit

    Parity Bit Parity bit Setup range (Even Parity) (None Parity) (Odd Parity)
  • Page 11 Stop Bit Stop bit Setup range (1 bit stop) (2 bit stop)
  • Page 12 Address Address Setup 0, 1 ~ 247 range *The address value should be set to a valid value, not zero in order to read measurement data via communication.
  • Page 13 Please refer to the User Guide for details...
