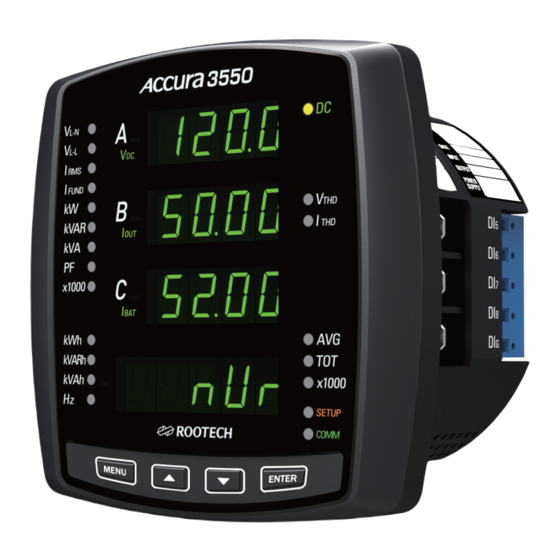

Accura 3550
Quick Setup
Guide
※ Please refer to the User Guide for details

Advertisement

loading
Need help?

Need help?

Do you have a question about the Accura 3550 and is the answer not in the manual?

Questions and answers

Related Manuals for ROOTECH Accura 3550

Summary of Contents for ROOTECH Accura 3550

  • Page 1 Accura 3550 Quick Setup Guide ※ Please refer to the User Guide for details...
  • Page 2 Button Operation Press button to enter SETUP mode Button Do not save Short Enter Enter Select /Exit press Setup mode Event mode save Setup mode Enter Enter setup mode by pressing the Setup buttons at the same time Mode Enter Enter module mode by pressing the Module buttons at the same time...

  • Page 3: Table Of Contents

    Setup Menu Select the menu item by short-pressing buttons. ※ Refer to the User Guide for details PT Ratio * CT Ratio * Wiring Mode * Comm Address * Protocol * Speed[bps] * Parity Bits * Stop Bits * *Required...

  • Page 4: Pt Ratio

    PT Ratio PT Ratio Setup 0.01 ~ 5000.00 range...
  • Page 5 CT Ratio CT Ratio Setup 1 ~ 5000 range...

  • Page 6: Wiring Mode

    Wiring Mode Wiring mode Setup (Single Phase (Single Phase (Three Phase (Three Phase range 2-wire) 3-wire) 3-wire, 4-wire) Open Delta)
  • Page 7 DC module rectifier current shunt DC module shunt Setup Setup Shunt type [mV] Max current [A] item item 50, 60, 100 1 ~ 999 A Setup Setup range range...
  • Page 8 DC module battery current shunt DC module shunt Setup Setup Shunt type [mV] Max current [A] item item 50, 60, 100 1 ~ 999 A Setup Setup range range...
  • Page 9 Comm Address Comm address Setup 1 ~ 247 range...

  • Page 10: Protocol

    Protocol Protocol Setup range (Modbus RTU) (Rootech)
  • Page 11 Speed[bps] Baudrate Setup 1200, 2400, 4800, 9600, 19200, 38400, 57600 range...

  • Page 12: Parity Bits

    Parity Bits Parity bit Setup range (Even Parity) (None Parity) (Odd Parity)

  • Page 13: Stop Bits

    Stop Bits Stop bit Setup range (1 bit stop) (2 bit stop)
  • Page 14 Please refer to the User Guide for details...
