www.profitap.com

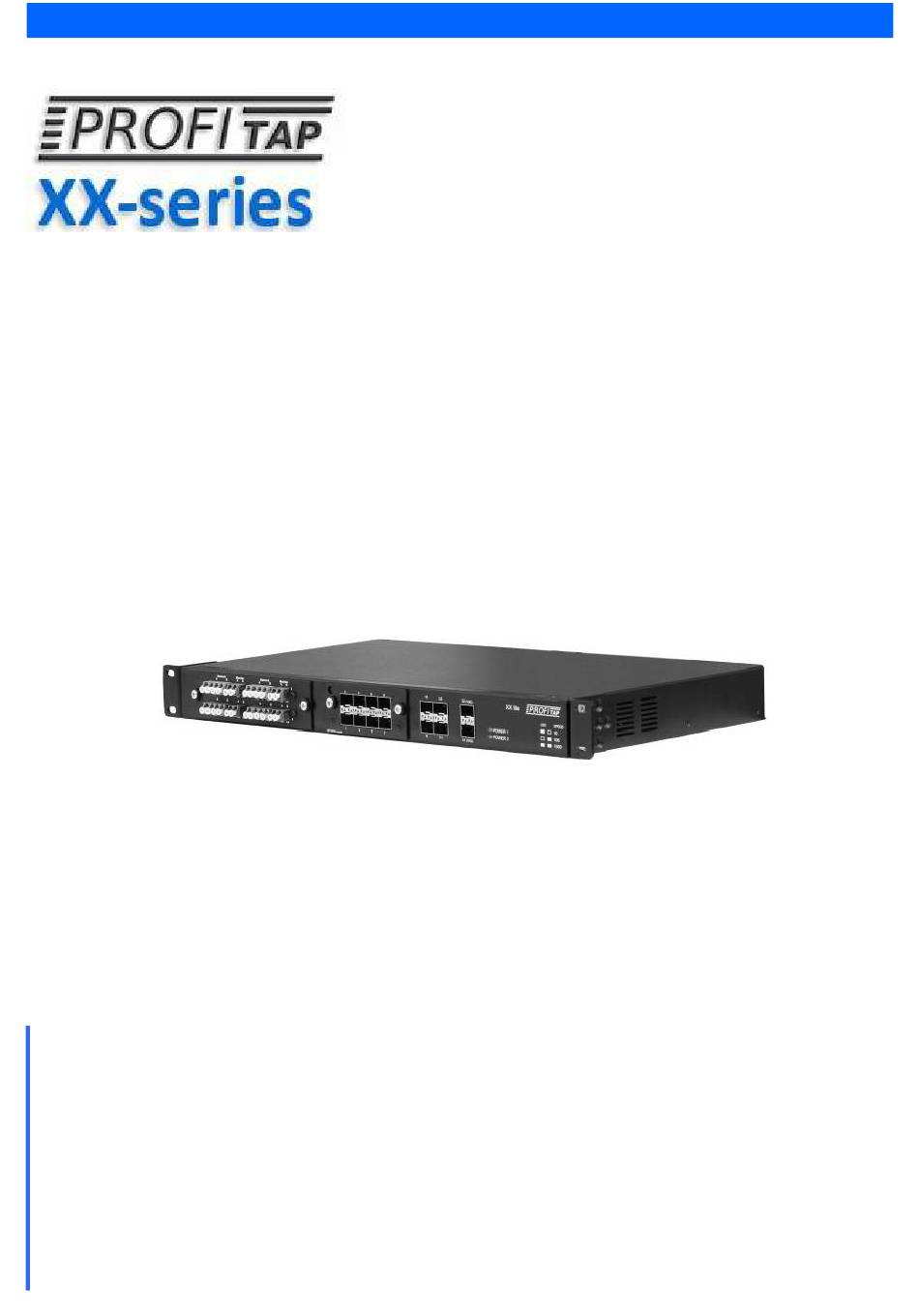

page 1

User Manual

XX-32G

CUSTOMER SUPPORT INFORMATION

To order or for a technical information support:

Phone: +33 3 88 10 18 30 or

Fax: +33 3 88 10 18 35

COMCRAFT

2, rue de la Mairie

67203 Oberschaeffolsheim - France

Website: www.profitap.com

E-mail: support@profitap.com

Need help?

Do you have a question about the XX Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ProfiTap XX Series

Page 1 CUSTOMER SUPPORT INFORMATION To order or for a technical information support: Phone: +33 3 88 10 18 30 or Fax: +33 3 88 10 18 35 COMCRAFT 2, rue de la Mairie 67203 Oberschaeffolsheim - France Website: www.profitap.com E-mail: support@profitap.com...
Page 3 3 You purchased a XX-series solution. Thank you for the confidence placed in our products.
Page 4 4 About Us COMCRAFT is the leading manufacturer of professional LAN & WAN Monitoring Equipment. Our products are of the highest quality, better featured and build with the latest technology. The confidence placed in our products is the reward for many years listening to our customer’s needs and expectations, improving technology and...
Page 5 5 Table of Contents General Information Overview System and Hardware XX-32G Visual Description Front & Backview View with Connectivity Module Connectivity Module Description Version Copper In-Line Version SPAN Module Version SPAN Module, SFP based Option Slot - passive FiberTAP for 1GbE / 10GbE Networks Unpacking &...
Page 6 6 General Information Overview System XX-32G The XX-32G is a up to date, versatile solution, designed for aggregation, filtering and routing of multiple In-Line and/or Span inputs, either 10GbE or 1GbE datastreams, for Monitoring & Analysis Tools by 1GbE or 10GbE Monitoring tools.
Page 7 7 2. Visual Description Front View Rackmount brackets Expansion Slot Swappable Slot 1 4 fixed SFP (1Gb) ports 2 fixed SFP + (10Gb) ports Link/Activity/Power LEDs Information Field Back view Redundant , international (110-240V) powersupplies * Cooling: two speed controlled fans in demountable/replaceable unit.
Page 8 8 2. Front view with Connectivity Unit Copper In-Line Module Copper Span Module SFP based (SPAN) Module All modules with speed/link/activity Sample view with inserted 8 Ports Connectivity Module (here SFP-Module)
Page 9 9 3. Additional Module Description 8 Port Connectivity Module: Version : Copper In-Line, Part No. : XXS-4CIL Use: Up to four (4) true In-Line TAPs for 10/100/1GbE UTP The Copper In-Line Module comes equipped with eight RJ45 Connectors. Once connected links are failsafe and attached segments will never be interrupted, even if the XX-32G is not powered due any reason.
Page 10 10 3. Additional Module Description (cont’) 8 Port Connectivity Module: Version : SPAN Module, SFP based, Part No.: XXS-8SFP Use: Up to 8x SPAN 10/100/1GbE Input Ports or up to 8x 10/100/1GbE Output Ports. XX-Manager allows configuration of each Port Usage for In- or Output in any combination.
Page 11 11 3. Option Slot: Passive Fiber TAP This slot is for a In-Line passive FiberTAP solution. Quad Fiber TAP in Alternate: Single Fiber TAP Use: The sets of passive couplers guarantee that XX-32G will never cause a point of failure to any fiber network segment.
Page 12 12 3. Option Slot: Passive Fiber TAP (cont’) Fitting to the local Fiber Network‘ specifications (MultiMode, SingleMode, Split Ratio) the Monitor Outputs of the passive TAP can used both further for being the Intakes to either 1GbE SPAN Ports of the Connectivity Module or to either fixed 1GbE or 10GbE Ports at XX- 32G.
Page 13 13 4. Unpacking and Installation Unpack careful all items and retain packing material for later use. XX-32G is shipped with the following items: • XX Main Unit • Swappable Module(s) (if purchased) • 1x Power Cord & 1x Cat5 & 1x RS232 Cable, 2m ea.
Page 14 14 4. Unpacking and Installation (cont.) Installing SFP and SFP+ Connectors No SFP or XFP are included unless ordered separately via your supplier. Any SFP based Network Port at XX-32G must be equipped with a standard Module to match the local requirements.
Page 15 15 5. Connecting to Network and Appliances Connecting SPAN Ports to XX-32G (fixed Ports or Module Ports) Attach to any fixed SPAN Ports or to SPAN Ports of installed Connectivity Module by appropriated cable. Apply the other end of cable to any SPAN Port of any switch or any other source of traf- fic.
Page 16 16 5. Connecting to Network and Appliances Using the passive FiberTAP in Option slot (F1RL or multiple F4L): Please select the required Fiber TAPs Specifications as needed following the informations being provided for the FiberTap F1RL and F4L.
Page 17 17 5. Connecting to Network and Appliances (Samples) XX-32G: Set for aggregating four Input Lines (SPANs) at 1GbE by fixed ports, interfaced by SFP (Copper or Fiber) for Output set to first 10GbE SFP+ Port: 4x 1GbE SPAN...
Page 18 18 5. Connecting to Network and Appliances (Samples) (cont’) XX-32G and SPAN Connectivity Module (Copper or SFP): Set for aggregating 10x 1GbE SPAN Input ( 7x by Connectivity Module plus additional 3x 1GbE SPAN by fixed Ports for Output set to both 10GbE SFP+ and 2x 1GbE Ports at Connectivity Mo-...
Page 19 19 5. Connecting to Network and Appliances (Samples) (cont’) XX-32G and 10GbE SPAN Monitoring: Set for filtering and strapping down 2x 10GbE SPAN Input for various Outputs at 1GbE (at fi- xed Ports or Connectivity Module Ports). Additional 1GbE Span Inputs may be processed and filtered and/or routed to same or dedica-...
Page 20 20 6. Powering on XX-32G Assuming all necessary precautions while physical connections have been proceeded the unit can be powered on now : The System does not provide a main power switch, XX-32G powers up if one of redundant powersupplies is being connected to mains power.
Page 21 21 6. Powering on XX-32G (cont’) The presence of redundant power is displayed by 2 separated Power Indicators (LEDs). If constant on, the Powersupply is active. If one LED is off, this could either indicate only a single Powersupply is in use or the second powersupply is not in function.
Page 22 22 7. Basic Network Configuration Getting started (cont’) As main part of XX-32G the XX-Manager - a GUI-driven Configuration- is controlling the SetUp for Aggregation, Filtering & Routing and gives control over 1GbE & 10GbE Network Traffic for Monitoring.
Page 23 23 7. Basic Network Configuration cont’) Getting started (cont’) Continue with connecting XX-32G to your Network or use the a cross cable to connect your Computer to XX-32G or to same physical Network. Connect to XX-32G by typing in the default IP-adress 192.168.0.2 in any browser on your local Overide any browser dependent alert to continue.
Page 24 24 7. Basic Network Configuration cont’) Getting started (cont’) Secure Access - SSL/HTTPS: A SSL certificate is pre-installed on the XX-32G, a new certificate can be generated or imported. Refer to Software Manual for generating/importing a certificate. DHCP :...
Page 25 25 8. Retrieving Factory Defaults In case the System Configuration has been corrupted or main parameters have been changed without notice due any reason XX-32G can be reset by connecting via TTY (Linux) or any other terminal software (e.g TeraTerm on Windows) to the RS232 Management Port.
Page 26 26 Disclaimer The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The...
